Phaser 6128MFP Service Manual 8-59
Service Parts Disassembly

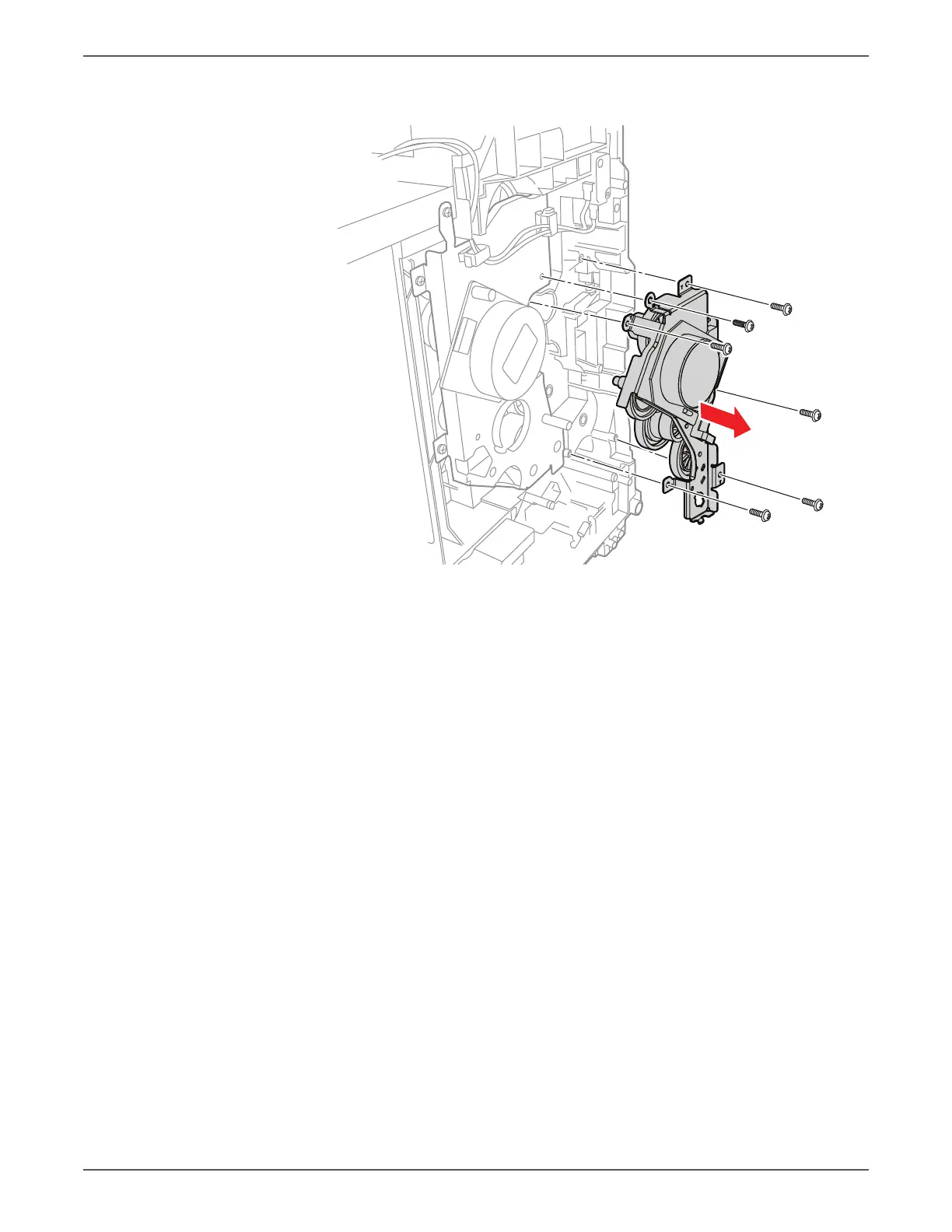

7. Remove the one screw (silver, M4, 6mm) and the five screws (silver, tap, 8mm)
that secure the Main Drive Assembly and remove the drive.
Secure the wiring harness connecting the sub motor through the back of
the hook on the Main Drive Assembly
