5-60 Phaser 6128MFP Service Manual
Print-Quality Troubleshooting
Note
Print the parameter list using the Print function of Parameter Menu in Service
Diagnostics before changing the registration values.
Printer Diag Parameter Settings
Item Range Description
Slow Scan K to P
(Shifts 0.17mm/1count)
-128 to 127 Sets the registration in the paper
feeding direction
Slow Scan 600 M,Y,C
(Shifts 0.042mm/1count)
Fast Scan K to M,Y or C
(Shifts 0.042mm/1count)
-128 to 127 Sets the registration in the scanning
direction. Color registration
adjustment Calculation of adjustment
is shown below. (exp. Yellow)
(Value of Fast Scan K to Y + Value of
Fast Scan 2 K to Y )/4
Fast Scan M-Feed ,Tray
(Shifts 0.17mm/1count)
-30 to 30
Fast Scan 2 K to M,Y or C
(Shifts 0.01mm/1count)
-1 to 2
s6128mfp-123

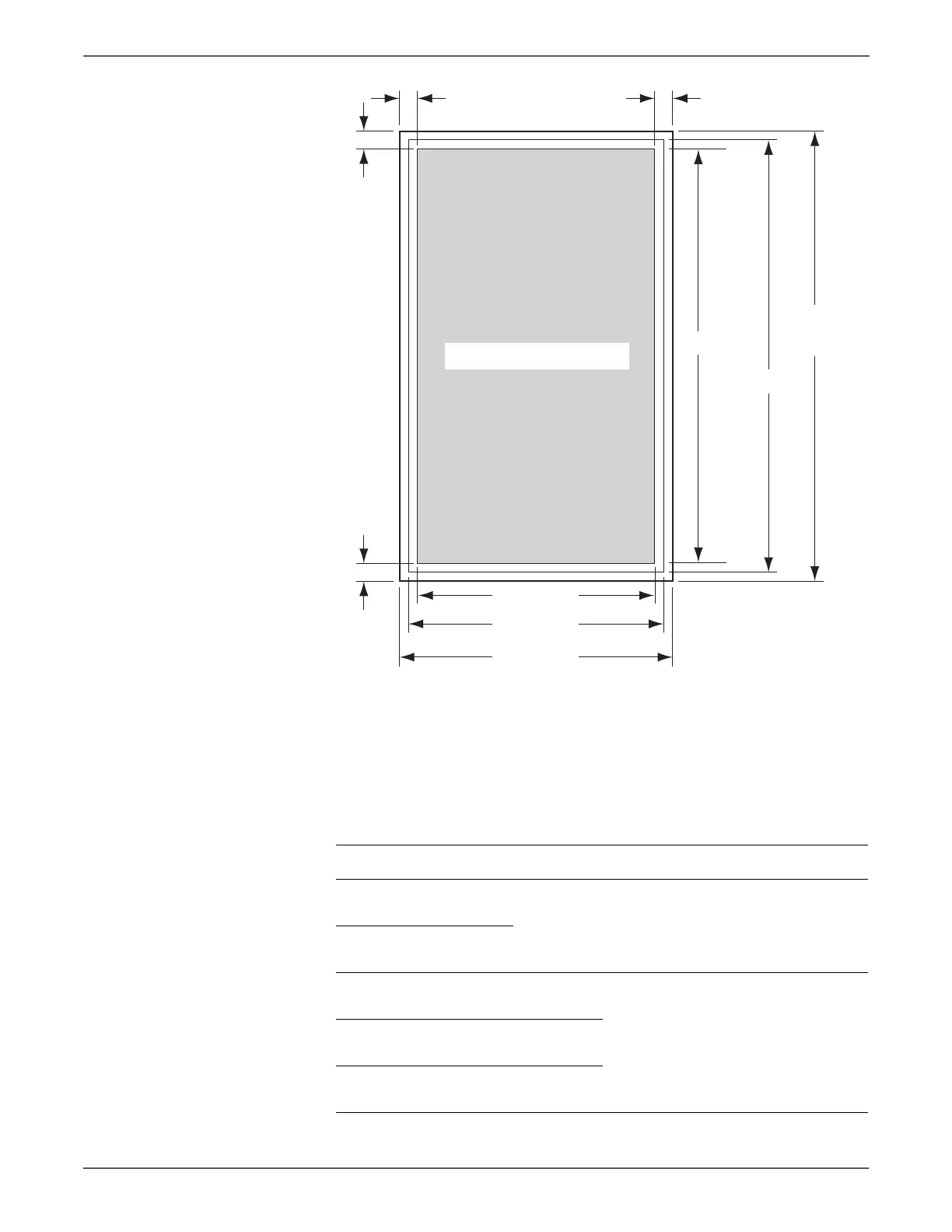

4 mm
4 mm
4 mm
4 mm
355.6 mm
(14 inch)
215.9 mm
(8.5 inch)
351.6 mm
347.6 mm
210.9 mm
Guaranteed printing area
207.9 mm
