Phaser 6128MFP Service Manual 8-9
Service Parts Disassembly

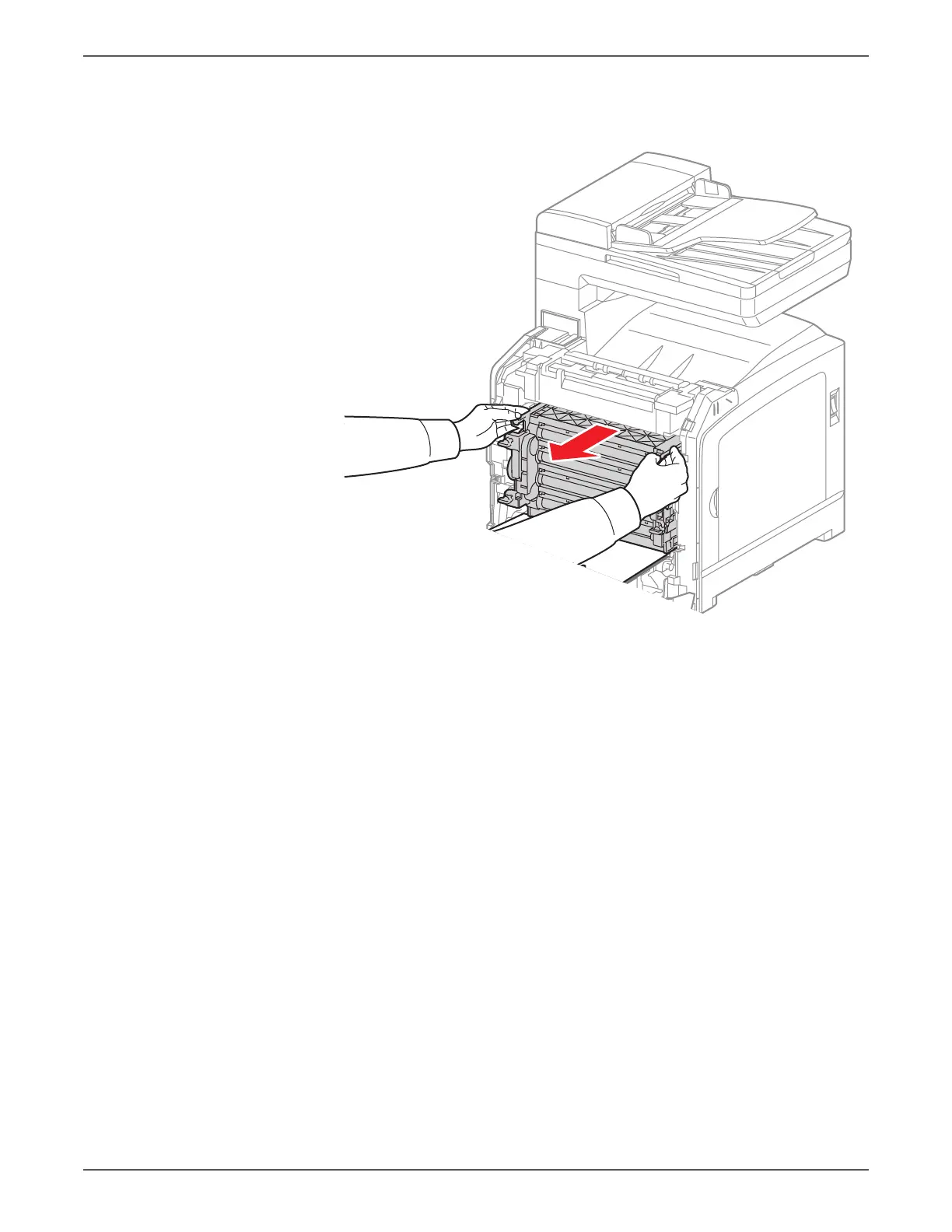

4. Grasp the left and right handles and pull the Imaging Unit straight forward
until it is clear, then lift as shown. Take care to not touch the drums.
s6128mfp-180
