Xerox Phaser 6128MFP Service Manual

Phaser 6128MFP Service Manual 2-55
Theory of Operation

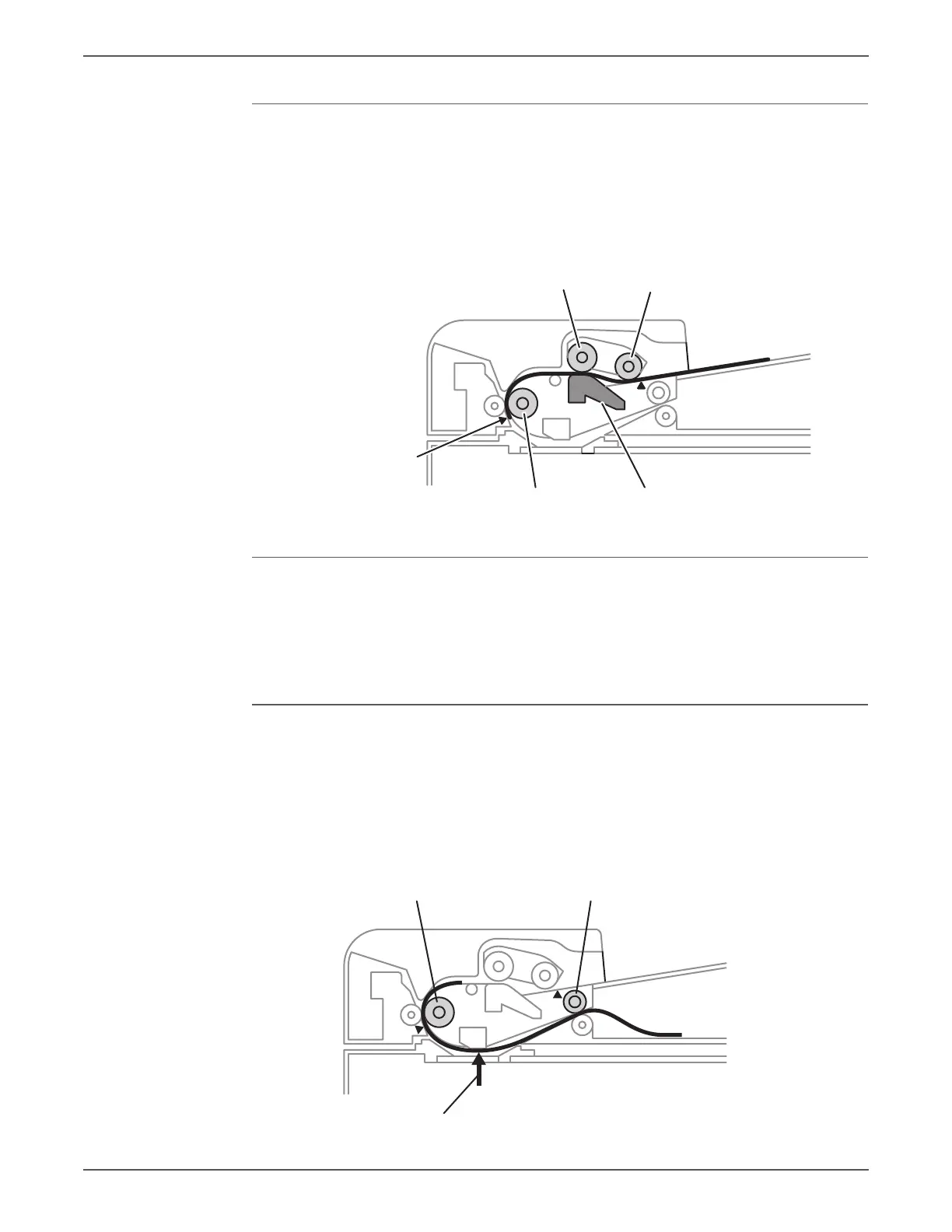

Prefeed
In the Prefeed process, media is fed from the Feed Roller to the Takeaway Roller.
When the Nudger Roller is pressed down to the media surface, the ADF Motor
rotates to drive the Nudger and Feed Rollers. The Nudger Roller feeds the top
media in the document tray to the Feed Roller. The Feed Roller, nipped by the ADF
Separator Pad, feeds the media. When the Feed Sensor detects the media, the
printer recognizes that first media feeding is complete.
ADF Scan Control
Scanning is controlled by changing the feed speed according to the copy
magnification. When the media passes the CVT position at the specified speed,
the images on the media are exposed by scanning with the Exposure Lamp of the
Scanner Assembly, and read by the CCD Image Sensor.
Simplex Document
For simplex document, media feed is performed as follows:
1. The media is fed to the Takeaway Roller and then fed to the scan feed
reference position.
2. The media is fed at the speed corresponding to the selected magnification,
and the image on it is scanned with the Exposure Lamp at the CVT position.
3. As the image is scanned, media is fed and ejected by the Exit Roller that is
driven by the ADF Motor.
s6128-055
Nudger Roller
ADF Separator Pad
Feed Roller
Feed Sensor
Takeaway Roller
s6128-058
Exit Roller
CVT Position
Takeaway Roller

Xerox Phaser 6128MFP Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	14 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Scanner type	Flatbed scanner
Image formats supported	JPG, TIF
Copier resize	- %
Time to first copy (black, normal)	18 s
Copy speed (black, normal quality, A4)	16 cpm
Copy speed (color, normal quality, A4)	12 cpm
Faxing	Mono faxing
Fax speed dialing (max numbers)	200
Total input capacity	250 sheets
Total output capacity	150 sheets
Display	LCD
Market positioning	Business
Internal memory	384 MB
Card reader integrated	No
Sound pressure level (copying)	52.2 dB
Sound pressure level (printing)	14.9 dB
Maximum print size	216 x 297 mm
Paper tray media types	Bond paper, Card stock, Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 216 g/m²
Power supply type	AC
Dimensions (WxDxH)	425 x 507 x 585 mm
Power requirements	120 V, 50/60 Hz
Networking features	Fast Ethernet
All-in-one functions	Copy, Fax, Scan
Standard media sizes	76.2 x 127 mm - 215.6 x 355.6 mm
Color all-in-one functions	copy, print, scan
Compatible operating systems	Windows 2000+ Mac OS X v10.3 - 10.5 Red Hat Enterprise Linux 5 Desktop SUSE Linux Desktop 10+
Dimensions (W x D x H) (imperial)	16.7 x 20 x 23 \
Acoustic power emissions (active, print, copy or scan)	62.2/30.3 dB
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	18.4 W
Power consumption (average operating)	360 W
Sustainability certificates	ENERGY STAR
Certification	EEC, FCC
Maximum duty cycle	40000 pages per month
Recommended duty cycle	3000 pages per month
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Non-operating relative humidity (non-condensing)	10 - 85 %
