Phaser 6128MFP Service Manual 2-57
Theory of Operation

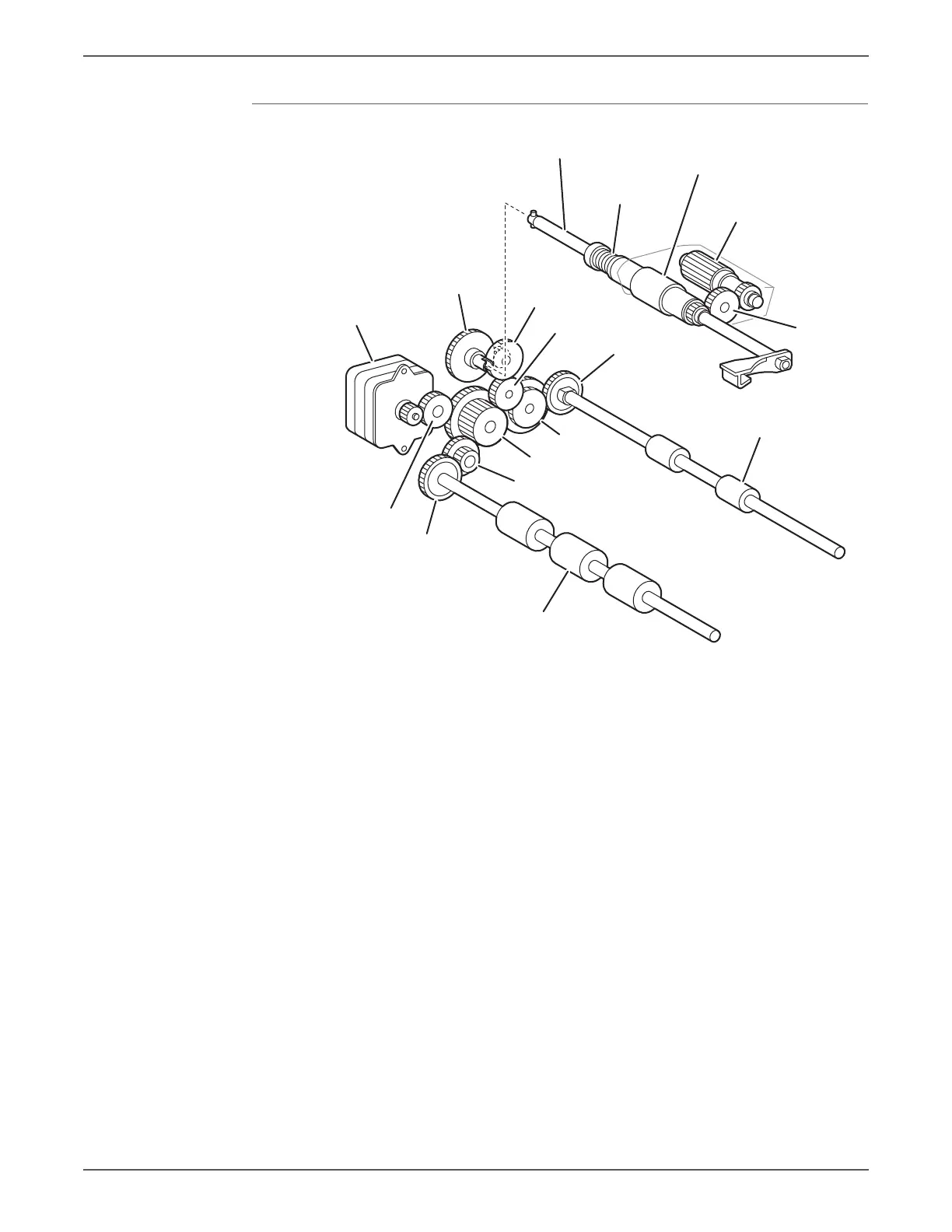

Gear Layout
s6128-057
ADF Motor
[ Takeaway Roller ]
[ Exit Roller ]
Gear A
Gear D
Gear E
Gear F
Spring Clutch
[ Feed Roller ]
Feed Roller Assembly
[ Nudger Roller ]
Gear G
Gear I
Gear B
Gear B
Gear CGear C
Gear HGear H
Gear JGear J
Gear B
Gear C
Gear H
Gear J
