Xerox Phaser 6128MFP Service Manual

Phaser 6128MFP Service Manual 2-59
Theory of Operation
Control Circuit

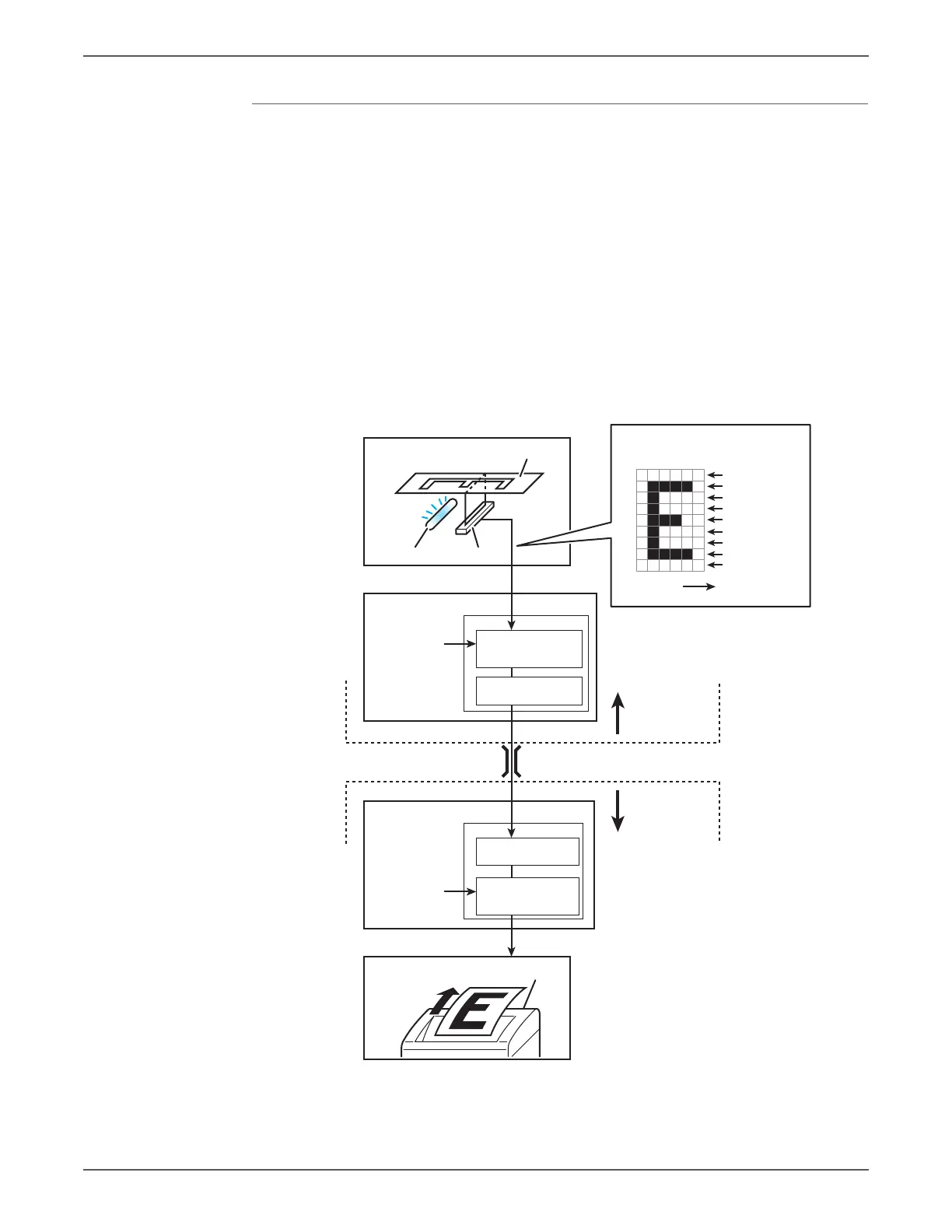

The control circuit executes scanning of image data by controlling the image
scanner. A line of CCDs scans the original image one line at a time. When scanning
of one horizontal line is completed, the next line below is scanned. As this
continues, the original is scanned from end to end one line at a time and converted
to digital data as black-and-white information.
Because this image data is a set of digital signals, it cannot be transmitted using
an analog telephone line; it must be subjected to DA conversion (modulation). On
the other hand, the receiving Fax machine must perform AD conversion to restore
the incoming digital data to analog data.
DA conversion, analog signal transmission, analog signal reception, and AD
conversion are all performed by a modem (modulator/demodulator) in the control
circuit. A modem consists of a Network Control Unit (NCU) for connecting to the
telephone line and an A/D conversion unit for performing DA and AD conversions.
s6128-060
CCD
111111
111111
100001
100001
101111
101111
101111
101111
100011
FAX System (Detail)
Scanner
Scanning
Lamp
Original
Original
Black becomes 0,
white 1 creating...
Digital dataImage
Control Circuit
Digital Signal
Modem
DA
Conversion
(Modulation)
A/D Conversion
Unit
A/D Conversion
Unit
NCU
Analog Signal
Sending FAX
Telephone Line
Receiving FAX
Control Circuit
Modem
AD
Conversion
(Demodulation)
Printer
Digital Signal
Printing
Print

Xerox Phaser 6128MFP Specifications

General

Print technology	Laser
Maximum resolution	600 x 600 DPI
Economical printing	Yes
Time to first page (black, normal)	14 s
Time to first page (color, normal)	17 s
Print speed (black, normal quality, A4/US Letter)	16 ppm
Print speed (color, normal quality, A4/US Letter)	12 ppm
Scanner type	Flatbed scanner
Image formats supported	JPG, TIF
Copier resize	- %
Time to first copy (black, normal)	18 s
Copy speed (black, normal quality, A4)	16 cpm
Copy speed (color, normal quality, A4)	12 cpm
Faxing	Mono faxing
Fax speed dialing (max numbers)	200
Total input capacity	250 sheets
Total output capacity	150 sheets
Display	LCD
Market positioning	Business
Internal memory	384 MB
Card reader integrated	No
Sound pressure level (copying)	52.2 dB
Sound pressure level (printing)	14.9 dB
Maximum print size	216 x 297 mm
Paper tray media types	Bond paper, Card stock, Envelopes, Glossy paper, Labels, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 216 g/m²
Power supply type	AC
Dimensions (WxDxH)	425 x 507 x 585 mm
Power requirements	120 V, 50/60 Hz
Networking features	Fast Ethernet
All-in-one functions	Copy, Fax, Scan
Standard media sizes	76.2 x 127 mm - 215.6 x 355.6 mm
Color all-in-one functions	copy, print, scan
Compatible operating systems	Windows 2000+ Mac OS X v10.3 - 10.5 Red Hat Enterprise Linux 5 Desktop SUSE Linux Desktop 10+
Dimensions (W x D x H) (imperial)	16.7 x 20 x 23 \
Acoustic power emissions (active, print, copy or scan)	62.2/30.3 dB
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	18.4 W
Power consumption (average operating)	360 W
Sustainability certificates	ENERGY STAR
Certification	EEC, FCC
Maximum duty cycle	40000 pages per month
Recommended duty cycle	3000 pages per month
Storage temperature (T-T)	-20 - 40 °C
Operating temperature (T-T)	10 - 32 °C
Non-operating relative humidity (non-condensing)	10 - 85 %
