Phaser 6128MFP Service Manual 8-31
Service Parts Disassembly

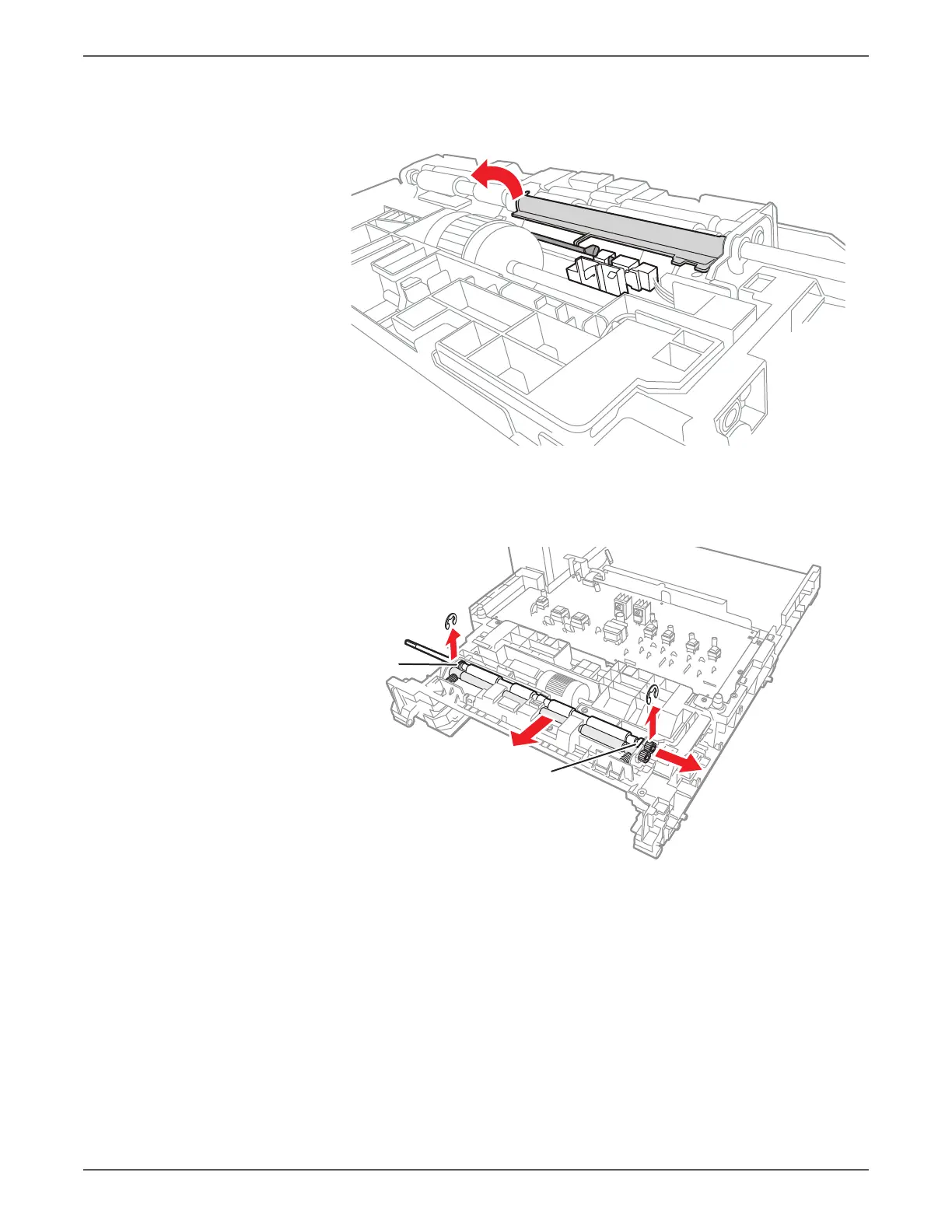

3. Release the Registration Actuator Out from the hook on the Chute Up
(PL3.2.26), then open the Registration Actuator Out.
4. Remove the E-rings that secure the Registration Roller at both ends using a
miniature screwdriver. Push the metal registration roller forward and remove
the Gear and bearings from the shaft.
s6128mfp-274
s6128mfp-311
Bearing
Bearing
1
1
2
3
