Phaser 6128MFP Service Manual 8-53
Service Parts Disassembly

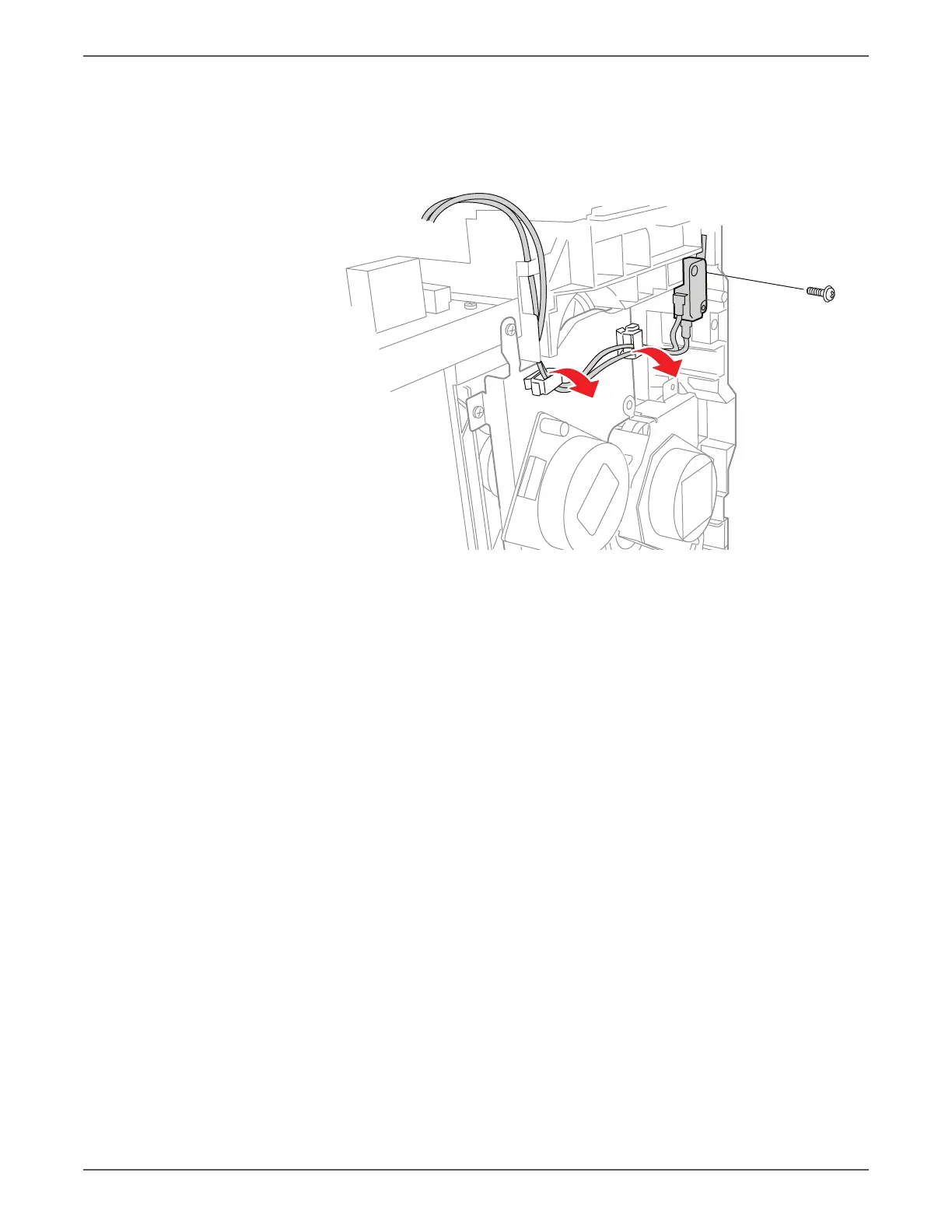

9. Release the harness from the 2 clamps on the chassis.
10. Remove the screw (sliver, tap, 6mm) that attaches the Interlock Harness to
remove the harness.
s6128mfp-198
