Phaser 6128MFP Service Manual 8-95
Service Parts Disassembly

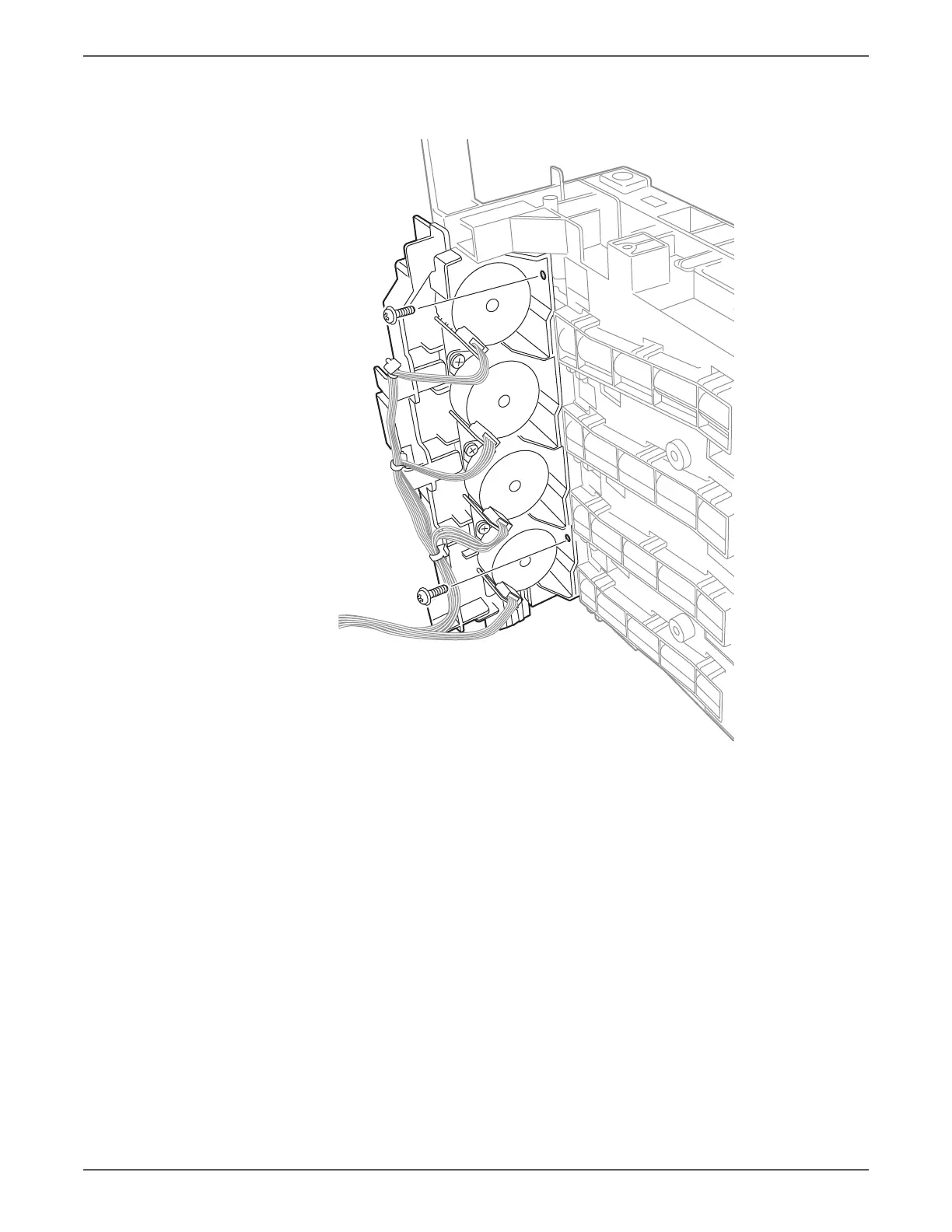

16. Remove 2 screws (silver, tap, 8mm) that secure the Toner Motor Frame
Assembly to the Dispense Assembly at the side..
s6128mfp-296
