Phaser 6128MFP Service Manual 2-17
Theory of Operation
• Feed Solenoid
The Feed Solenoid transmits drive energy from the Main Drive Assembly to the
Feed Roller.
• Feed Roller
When the Feed Solenoid operates, it allows the Feed Roller to rotate and feed
the paper.

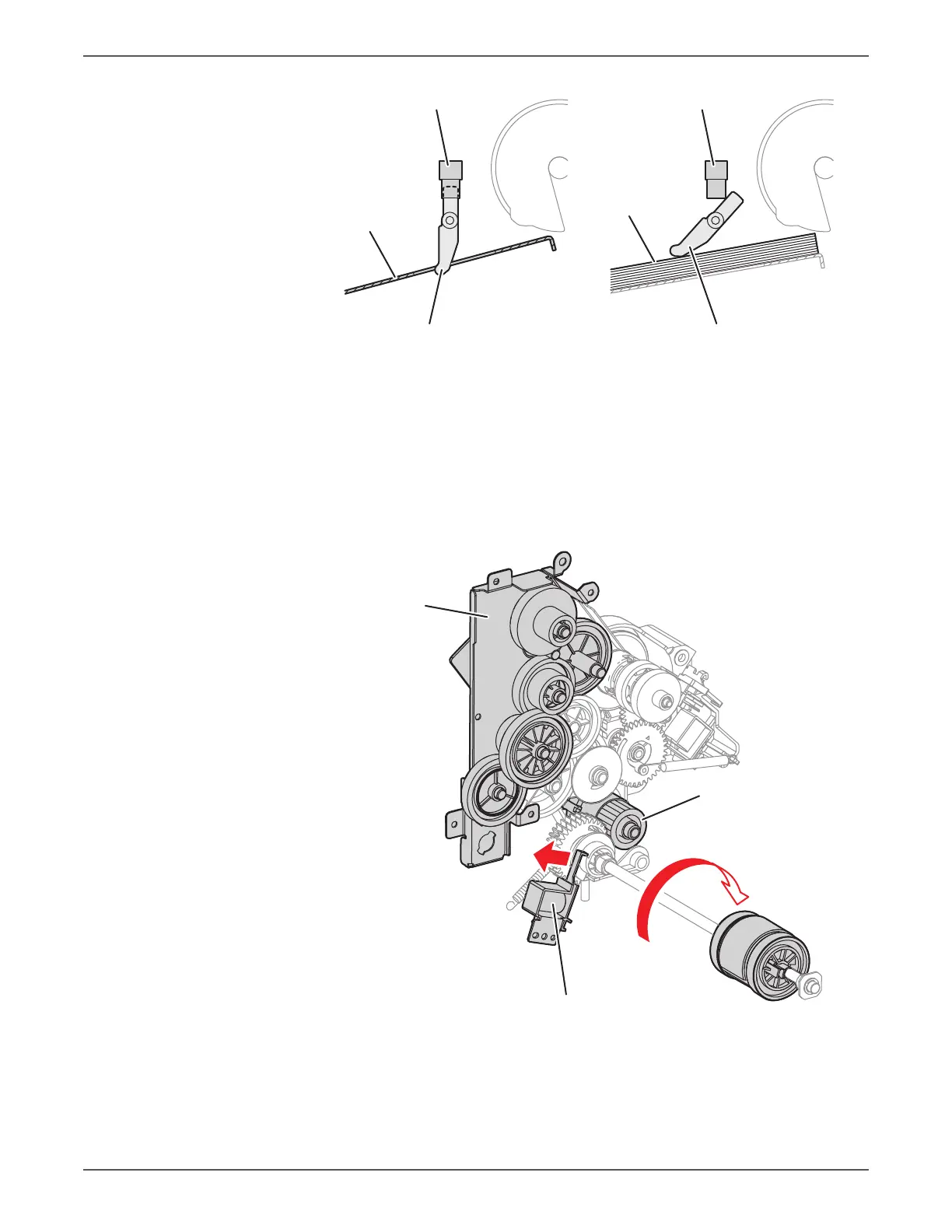

s6128-017
Tray No Paper Sensor
No Paper Actuator
(No Paper Position)
Tray No Paper Sensor
Paper
No Paper Actuator
Bottom Plate
s6128-018
Feed Roller
Feed Solenoid
Main Drive
Feed Roller Drive
