Phaser 6128MFP Service Manual 2-19
Theory of Operation
• Registration Clutch
The Registration Clutch transmits drive energy from the Main Drive to the
rubber registration roller, and transports paper from the Tray and manual feed
slot toward the Imaging Unit. The timing of sheets feeding from the
Registration Assembly is adjusted by the duration of the Registration Clutch
operation so that the toner image on the drum is transferred to the correct
position on the sheet.

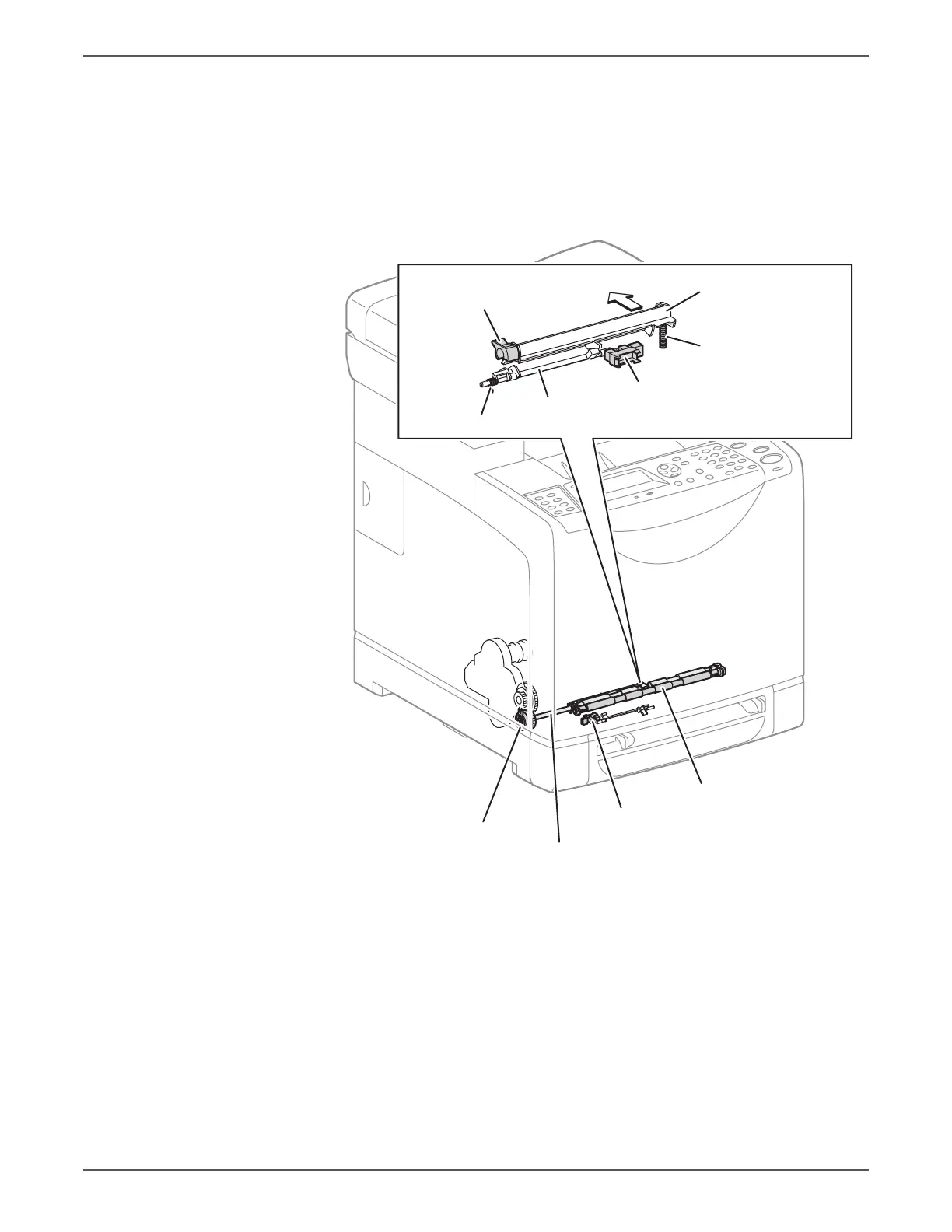

s6128-020
Registration Sensor
Rubber Registration Roller
Metal Registration Roller
Registration Clutch
Registration
Output Spring
Registration Actuator Spring
Registration
Output Actuator
Registration Input Actuator
Registration Roller Actuator
Registration Sensor
Rear View
Front
