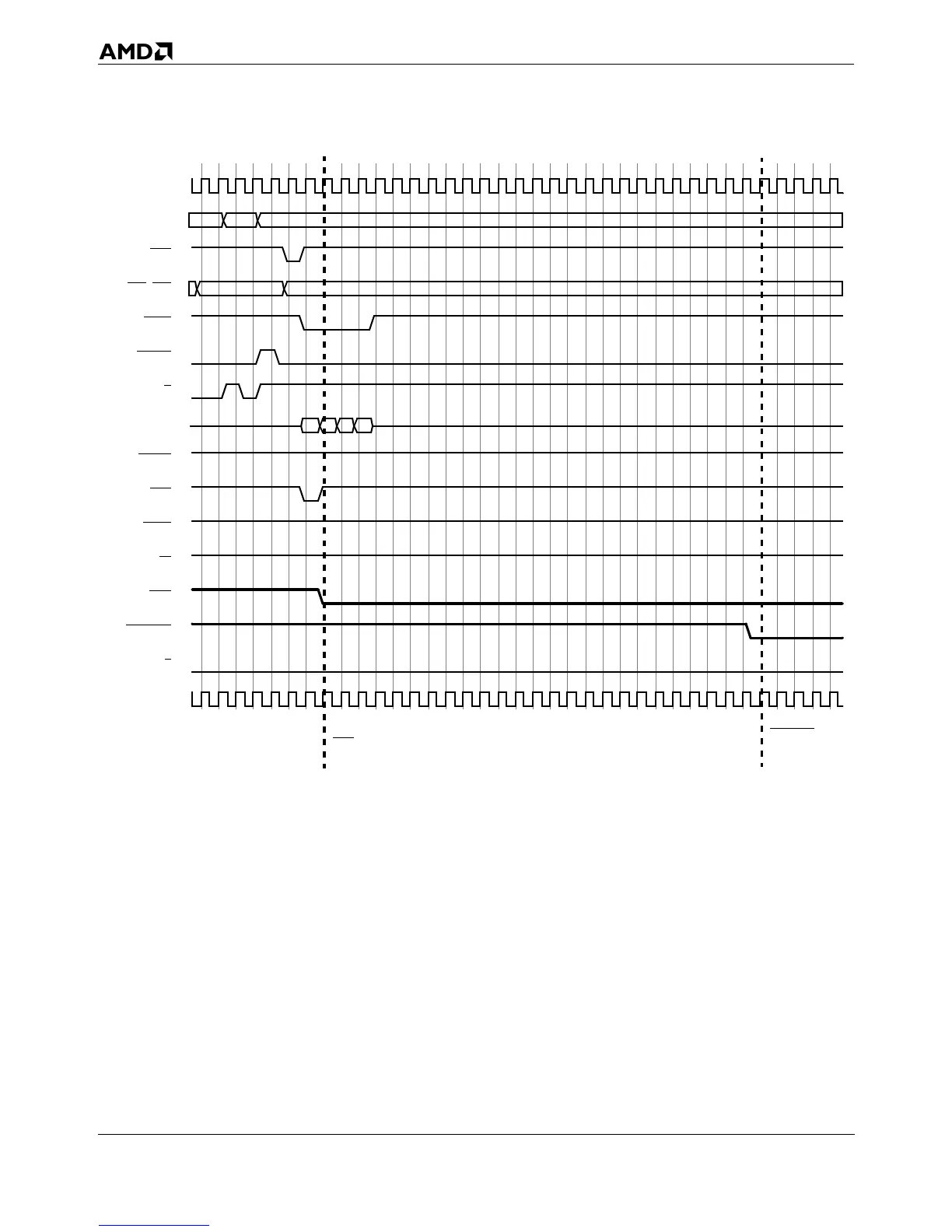

Figure 5-26A. Transition from Normal Execution to SMM Part 1
CLK
A31–A3
ADS
BE7–BE0
BRDY
CACHE
D/C
D63–D0
FLUSH
KEN
LOCK
M/IO
SMI
SMIACT
W/R
CLK
SMI Asserted
SMIACT
Asserted
