Autonics GP Series User Manual

119
10.1.2 Draw rectangles

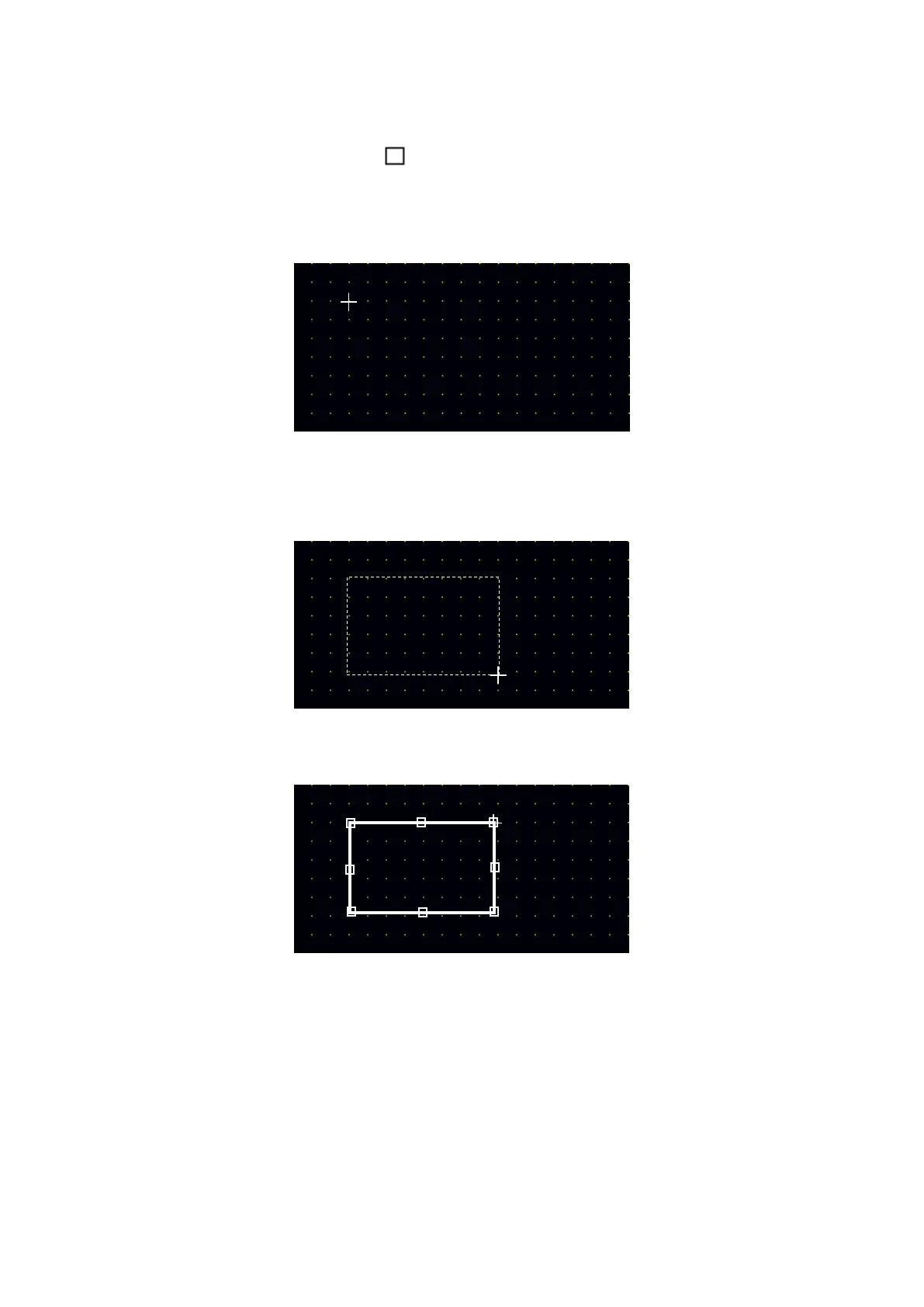

(1) Select [Draw]-[Rectangle] or click in toolbar, then, mouse cursor indicating draw mode is
appeared on a screen.
(2) Place a mouse on a summit position of rectangle and click left button.
(3) Pressing left button and drag it, the dotted rectangle is created with summit facing the initial clicked
point and current cursor position.
(4) Take off from a mouse button. The solid line of rectangle is created same with the dotted rectangle.
