3.4 DATA CHECK MODE

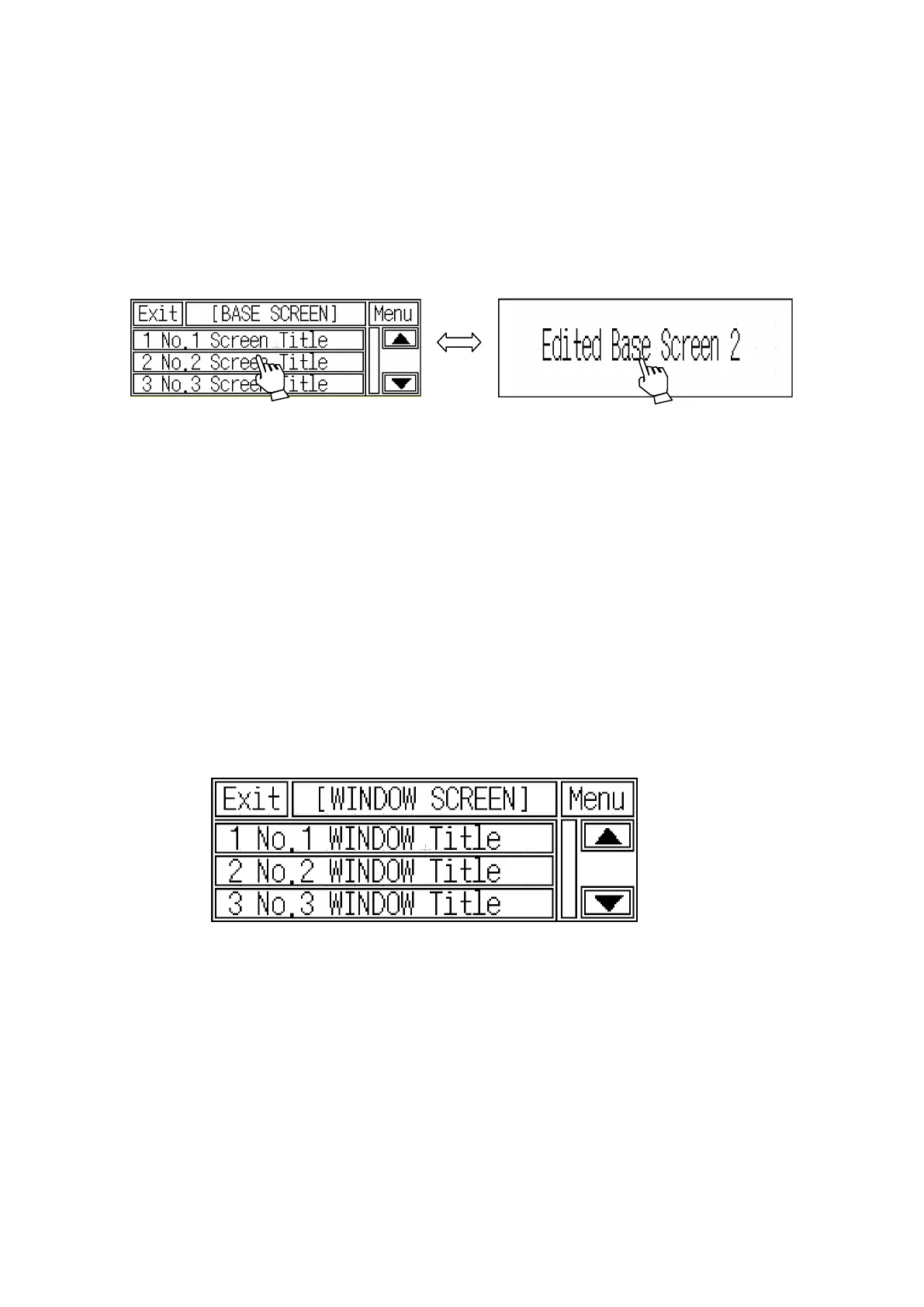

3.4.1 Base display screen
It shows the number of base screen and title list. The design status of the screen can be confirmed
when touching a screen list.
Screen check and operation
※Notice
If arranged units from the base screen list menu are display units, it is operated normally but it is not
for input units.
3.4.2 Window screen
It shows the number of window screen and title list. It is available to check same with the base screen
list function.
※Notice
• The window screen can be made up to max.500 in editor and max.3 can be downloaded to GP.
When touching a screen number
of line to confirm, it moves to the
screen.
When touching on the screen called, it
returns to basic screen list menu.
