Autonics GP Series User Manual

245

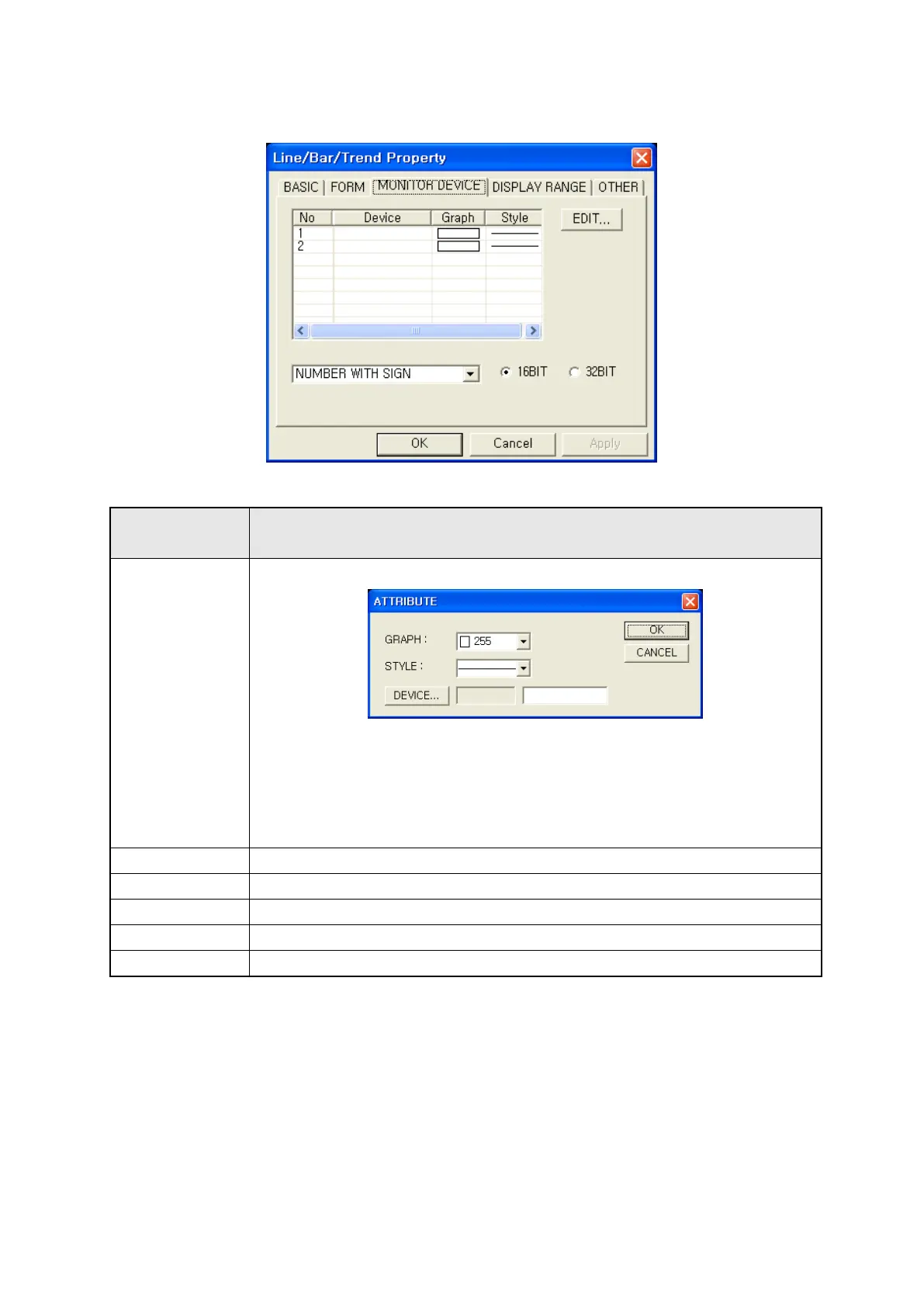

26.3.3 Monitor device tap
Monitor device
tap
Designate color of monitor device and graph
①Edit
• Call property window and designate color, style of device and graph.
• Property window
* Device : Designate lead device calling device window.
* Graph : Designate line color to be displayed on a graph as white/black.
* Style : Designate line style among solid/dotted/wave/a dashdot/two dashdot
to display a graph.
②
Device
•
Display lead device of each graph.
③Graph
•
Display color of each graph.
④
Style
•
Display line color of each graph.
⑤Data type
•
Designate data type of monitor device. Number with/without sign, BCD
⑥
Bit
•
Designate bit size of data. 16bit : Single word, 32bit : Double word
※Notice
It can be only used with 32bit in accordance with connection device, refer to “Communication manual”.
①
②
③
⑤
⑥
④
