Autonics GP Series User Manual

244

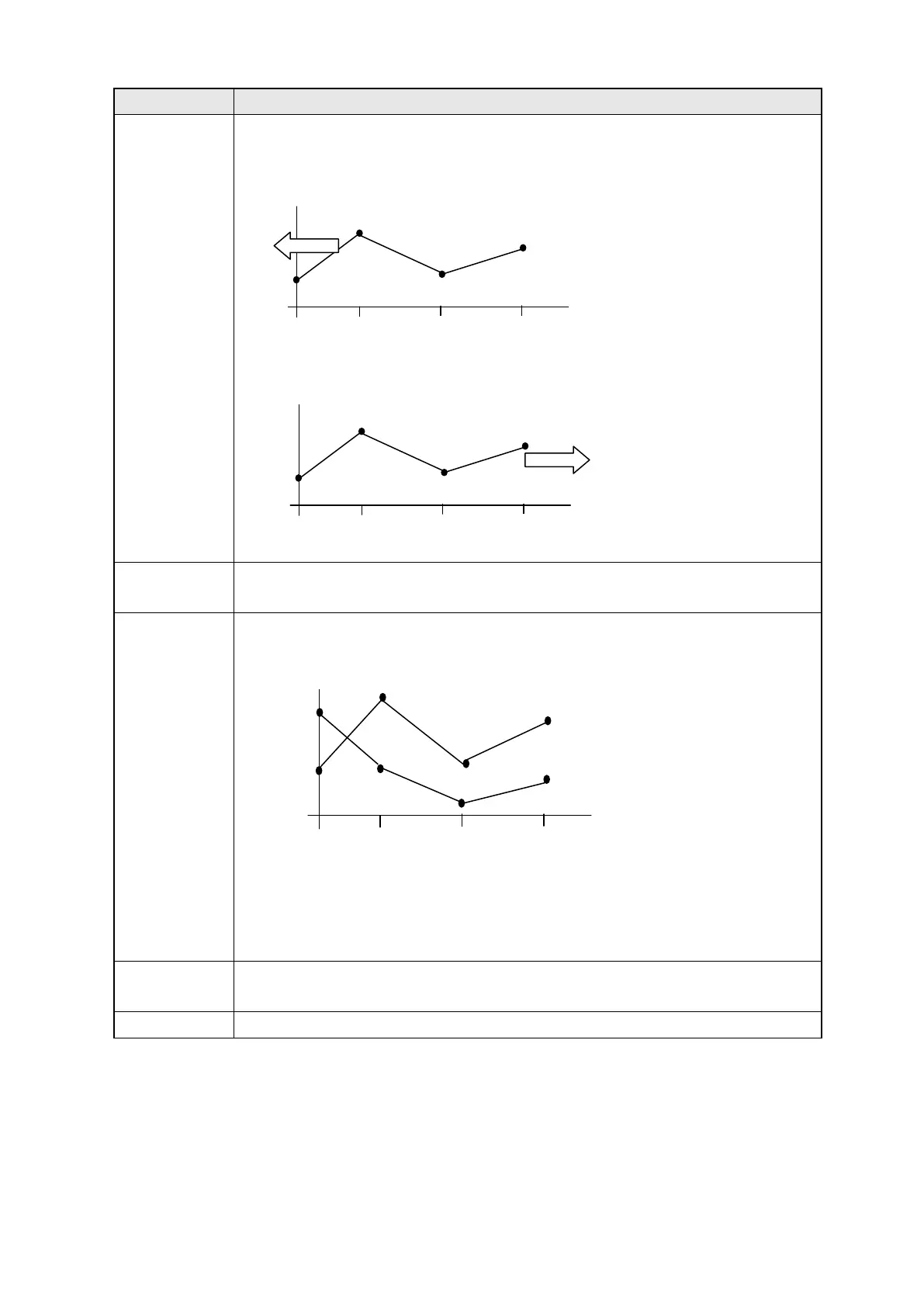

Form tap
Configuration of graph type including direction, points of graph
①Direction
• It is able to right/left direction.
• In case of right direction, time is increased to right of X axis. Graph is floated to
the left and the latest sample is in the rightmost.
• In case of left direction, time is increased to left of X axis. Graph is floated to the
right and the latest sample is in the leftmost.
②Number
• Designate the number of graph to be displayed on trend graph.
•
It is able to designate up to max.8.
③Points
• Designate the number of sample to be displayed in a graph.
• It is able to designate up to max.50 points.
• The above figure is for line graph when the number of graph=2, points=4 and
lead device is D100. Two graphs are displayed because the number of graph=2
and 4 samples are allotted for a graph because points=4.
•
Lead device is designated in monitor device tap.
④Scale
position
• It is not used in trend graph.
⑤Frame
•
Designate to display graph frame.
Time
1
2
3 4
4
3
2 1
Time
Graph of D100
Graph of D101
Time
