Autonics GP Series User Manual

237
25.3 DETAIL CONFIGURATION AND OPERATION OF MAIN
DEVICE

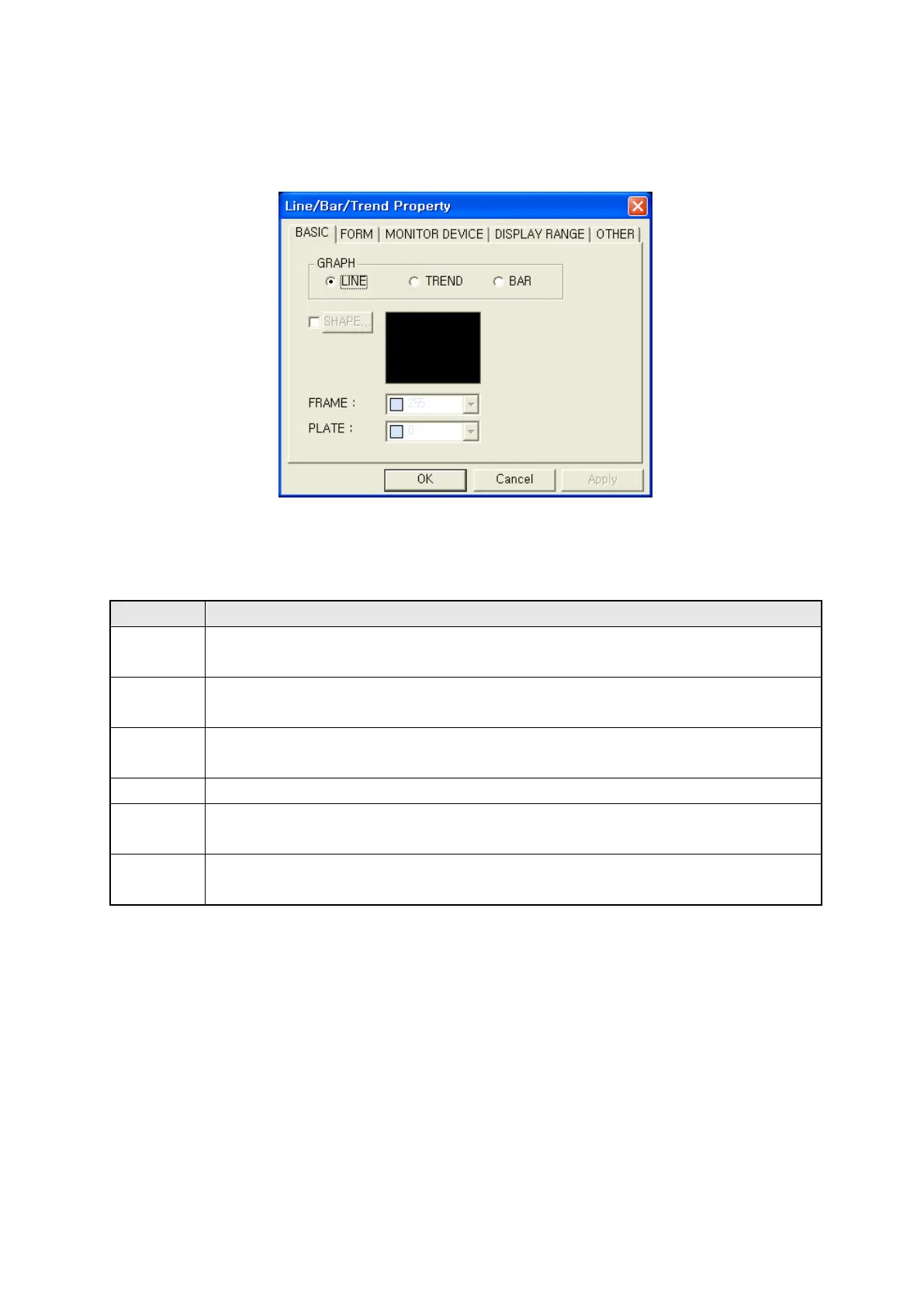

25.3.1 Basic tap
Basic tap
Designate type and shape of graph
○
1
Select graph type.
Graph
•
Line: Line graph
•
Trend: Trend graph
•
Bar: Bar graph
○
2
• Designate to use shape
Shape
•
When checking it, no.1 of memorized shapes is designated as a default.
○
3
• It is activated when
Shape
○
2
•
Pressing a button, it is able to select shape calling image selection window.
is checked.
○
4
•
It shows image of current selected shape.
Shape
○
5
• Designate frame color.
Frame
•
It is activated when designating shape.
○
6
• Designate plate color.
Plate
•
It is activate when designating shape.
①
② ③
④
⑤
⑥
