7.3 CONFIGURATION OF PROJECT AUXILIARY PROPERTY
7.3.1 Configuration of format type

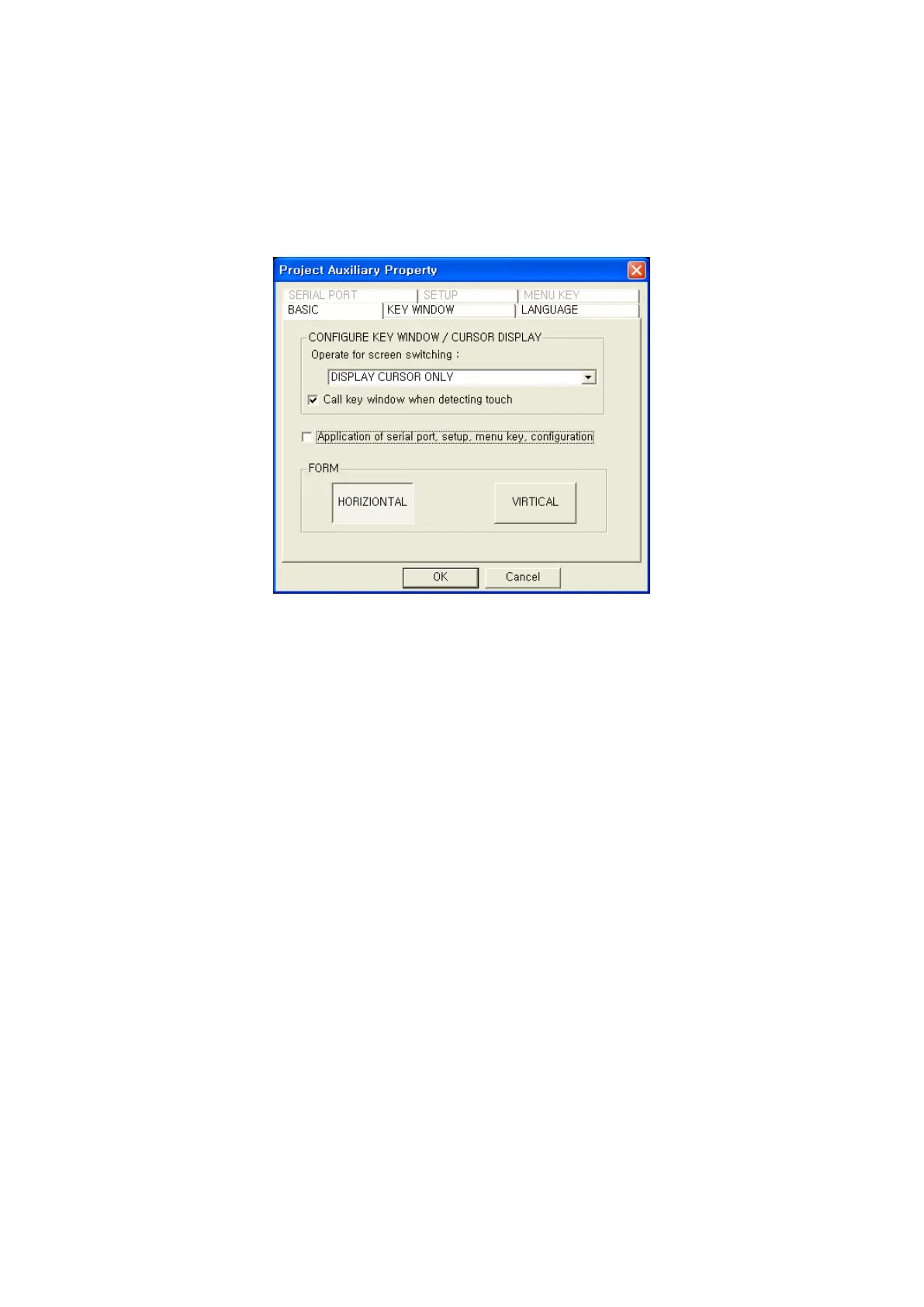

Select Horizontal or Vertical in format group box of basic tap in project auxiliary configuration
property window, edit GP screen as horizontal or vertical direction.
• Horizontal : Edit as horizontal direction
• Vertical : Edit as vertical direction
7.3.2 Configuration of key window display
Key window is used for inputting value into device in ASCII input/Numeric input.
It is able to designate call condition of key window and cursor appearance in project auxiliary
configuration.
In operation of switching screen,
(1) When selecting ‘Do not display cursor and key window’ in main device, cursor and key
window are not displayed when switching into screen with key input.
(2) When selecting ‘Display cursor only’, cursor is displayed only when switching screen.
(3) When selecting ‘Display cursor and key window’, cursor and key window are displayed.
When selecting ‘When touch is detected, open key window at the same time’, key window is
displayed for pressing input area or not when it is not checked.
