14.4 TEXT
Arrange user-defined text on a screen.
14.4.1 Edit procedure in editor

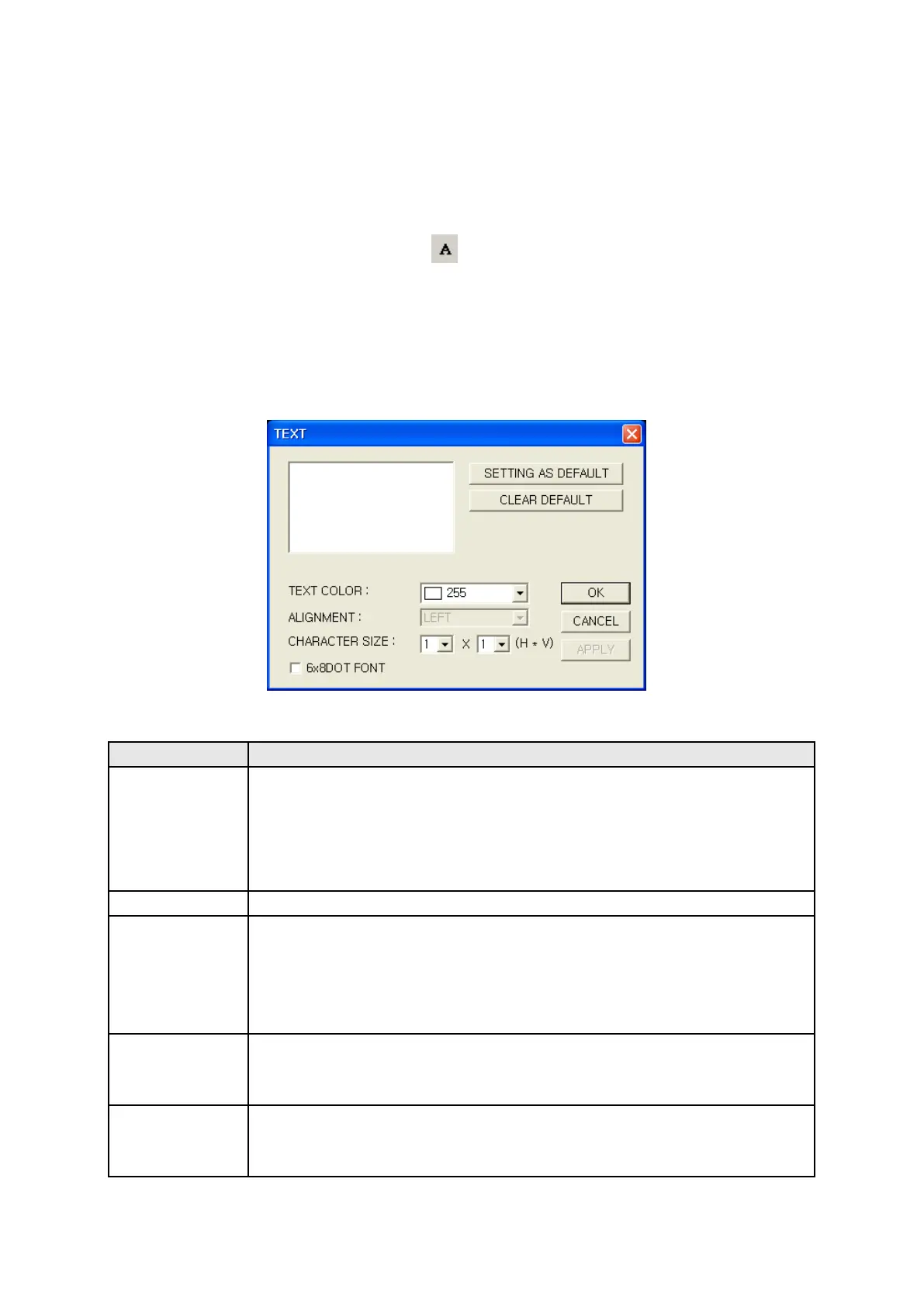

(1)Select Draw-text in main menu or press button of tool bar, text property window is popped
up.
(2)Input text to display in property window, designate size, color of letter and press OK button, it is
arranged on a screen.
14.4.2 Detail configuration
○
1
• Edit text to display
Text editor
When width or length size is out of the screen during text input, a message,
“Out of panel size” with red is appeared on a lower part of editor box. It is
also same when changing configuration of letter size.
It is disappeared when adjusting size or numbers of letter not to exceed.
2
•
Designate color of text to display. White/Black
○
3
• Designate alignment when inputting more than two lines, Left/Right/Center
Alignment
• It is only activated when inputting more than two lines.
• Left : Display a letter from the left of tag area
• Right : Display a letter from the right of tag area
•
Center : Display a letter in a center of tag area
○
4
• Designate width size of letter.
Width size • Default=1, Range=1, 2, 3, 4, 5, 6, 7, 8
•
It is only 1 is available when length size is 0.5 and not available as 2, 3, 4.
○
5
• Designate width size of letter.
Length size • Default=1, Range=0.5,1,2,3,4,5
•
It is not available to designate as 0.5 when width size is 2, 3, 4.
①
②
③
④
⑤
⑥
⑦
⑧
