1.8 INSTALLATION PROCEDURE

(1) Set a rubber waterproof ring in GP.

(2) Set GP in panel.

(3) Set brackets in 4 bracket slots and fix them.

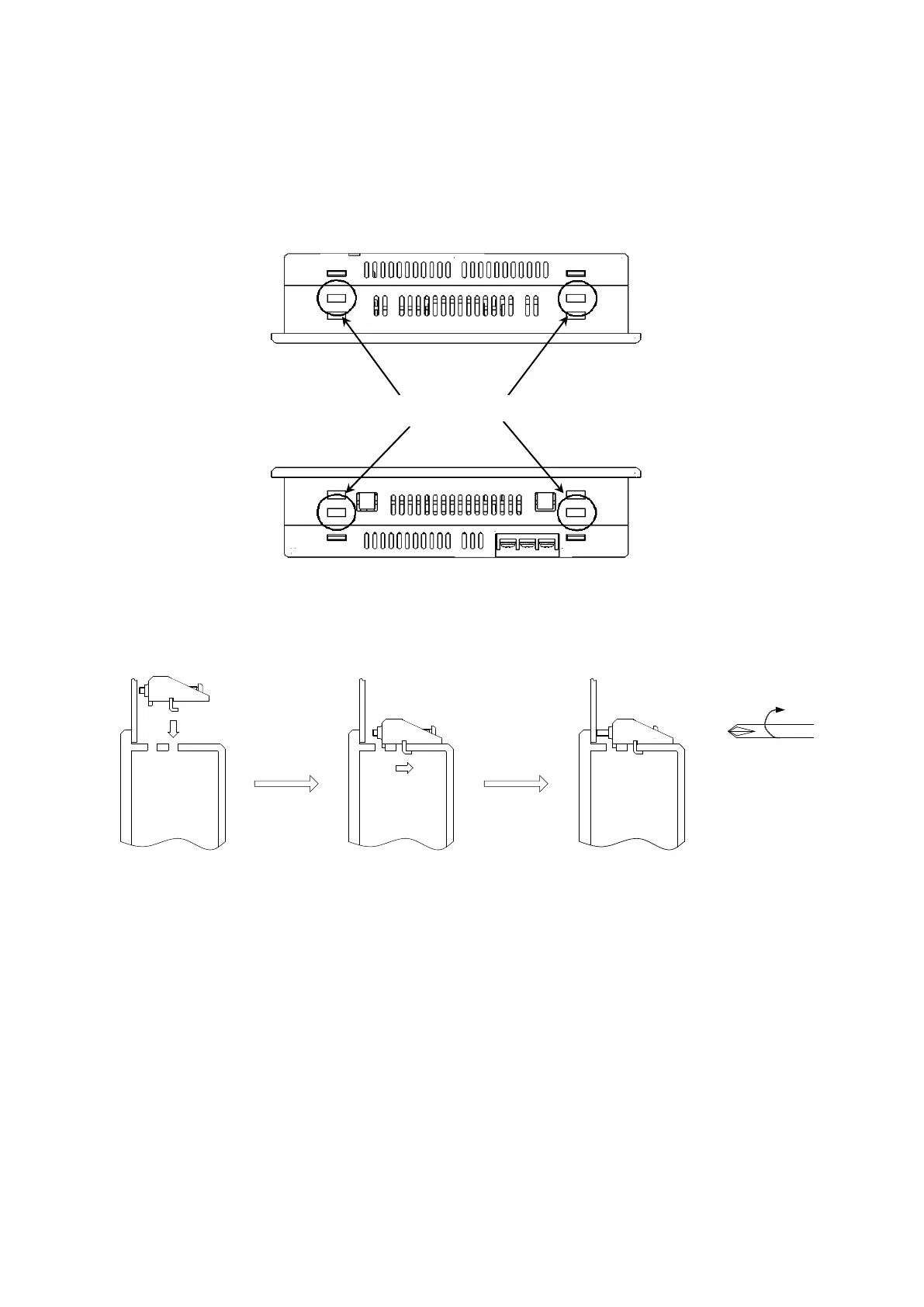

※ Procedure of mounting bracket

Mounting slot for bracket

Approx. 0.3Nm

Default Chapter6
