16.3 DETAIL CONFIGRATION AND OPERATION IN MAIN
DEVICE
16.3.1 Basic tap
Basic tap

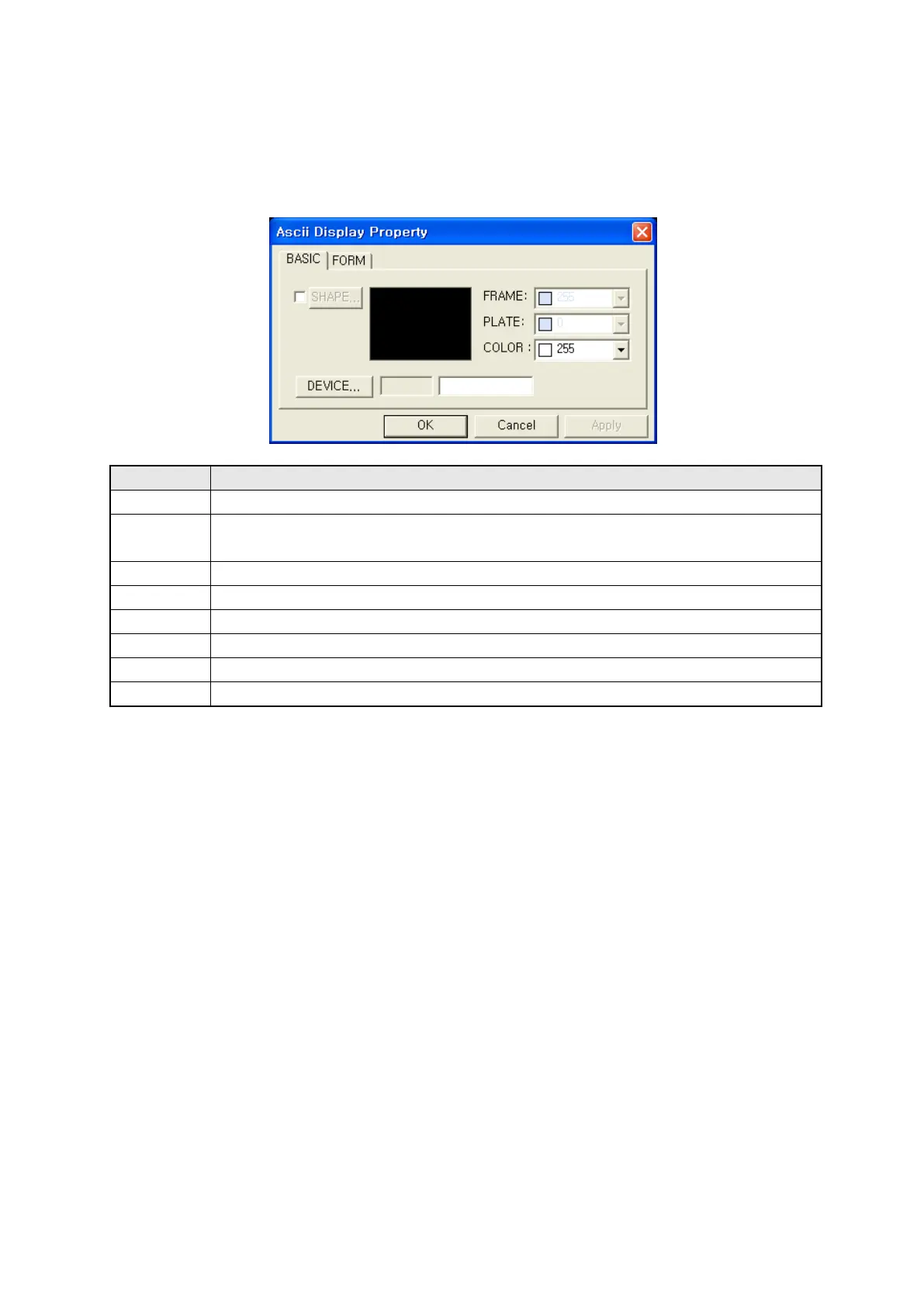

Configure PLC device and shape of tag
①Shape • Designate to use shape.
②Shape
• It is activated when checking ① and able to select shape in image selection window
pressing a button.
③Shape • Display image of currently selected shape.
④Frame • Designate frame color.
⑤Plate • Designate plate color.
⑥
Text
•
Designate character color to be display.
⑦Device • Call device window and designate device to be monitored.
⑧Device • Inputted by user directly or display designated device ⑦.
①
②
④
⑤
⑥
⑦
⑧
