Autonics GP Series User Manual

255

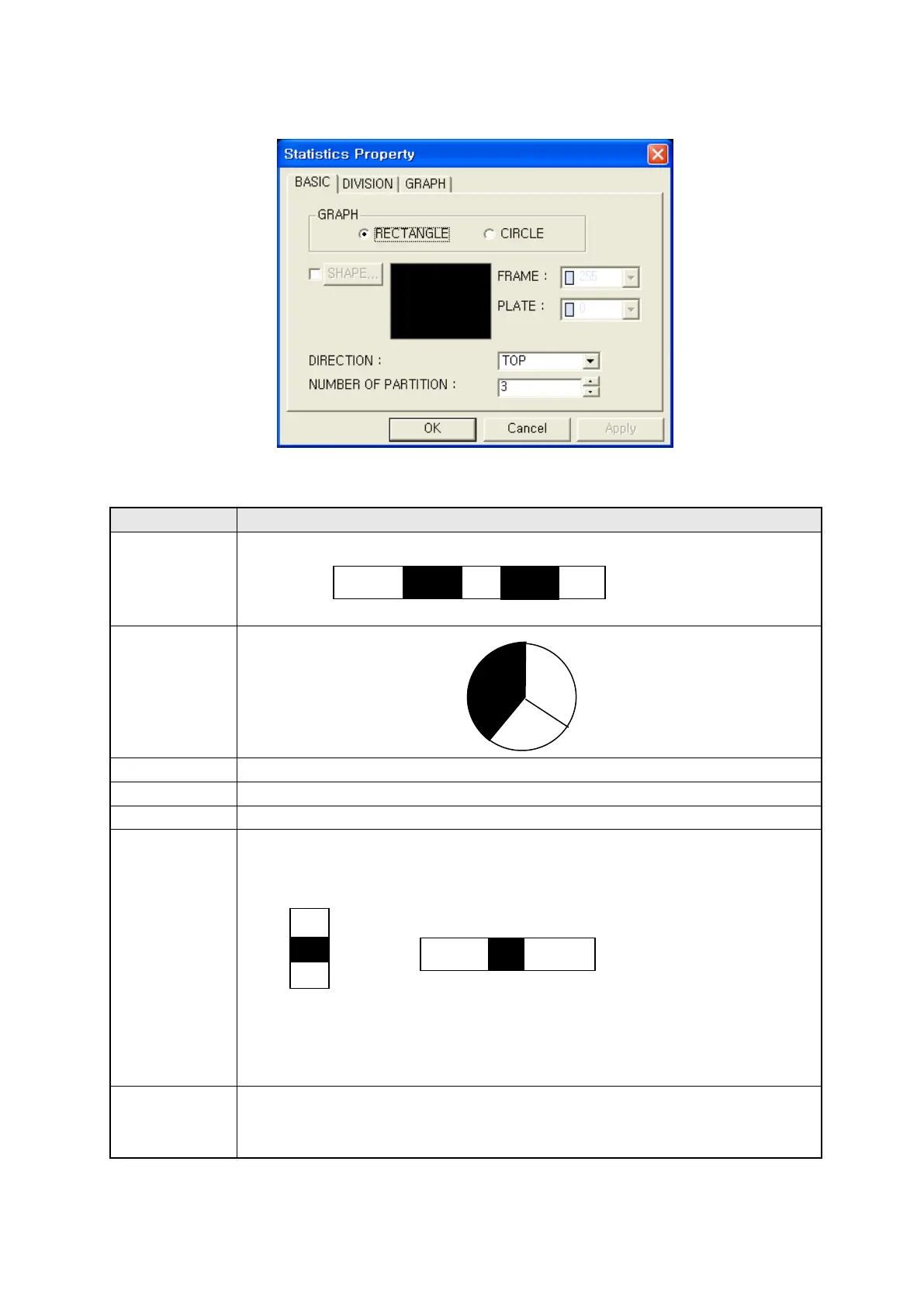

28.3 DETAIL CONFIGURATION
28.3.1 Basic tap
Basic tap
Designate type and external form of statistics graph.
①Rectangle
• Create rectangle type of graph.
②Circle
• Create circle type of graph.
③-⑤ shape
•
Designate external form.
⑥
Frame
•
Designate frame color.
⑦Plate
•
Designate plate color.
⑧Direction
• It is activated when it is rectangle graph and it designates direction of graph to be
drawn.
• It is able to designate upper or right, type according to designation is as follows.
• In case of upper, device with lower address is drawn corresponding with lower
part of partition and device with lower address is drawn corresponding with left
partition when right direction.
⑨The numbers
of partition
• Decide the number of partition to be displayed on a graph.
• As one partition is corresponded with one device, it is same with designation of
device point to be used on statistics graph.
Direction=Upper
Direction=Right
①
②
③
④
⑤
⑦
⑨
⑥
⑧
