6. THE OUTLINE OF GP EDITOR

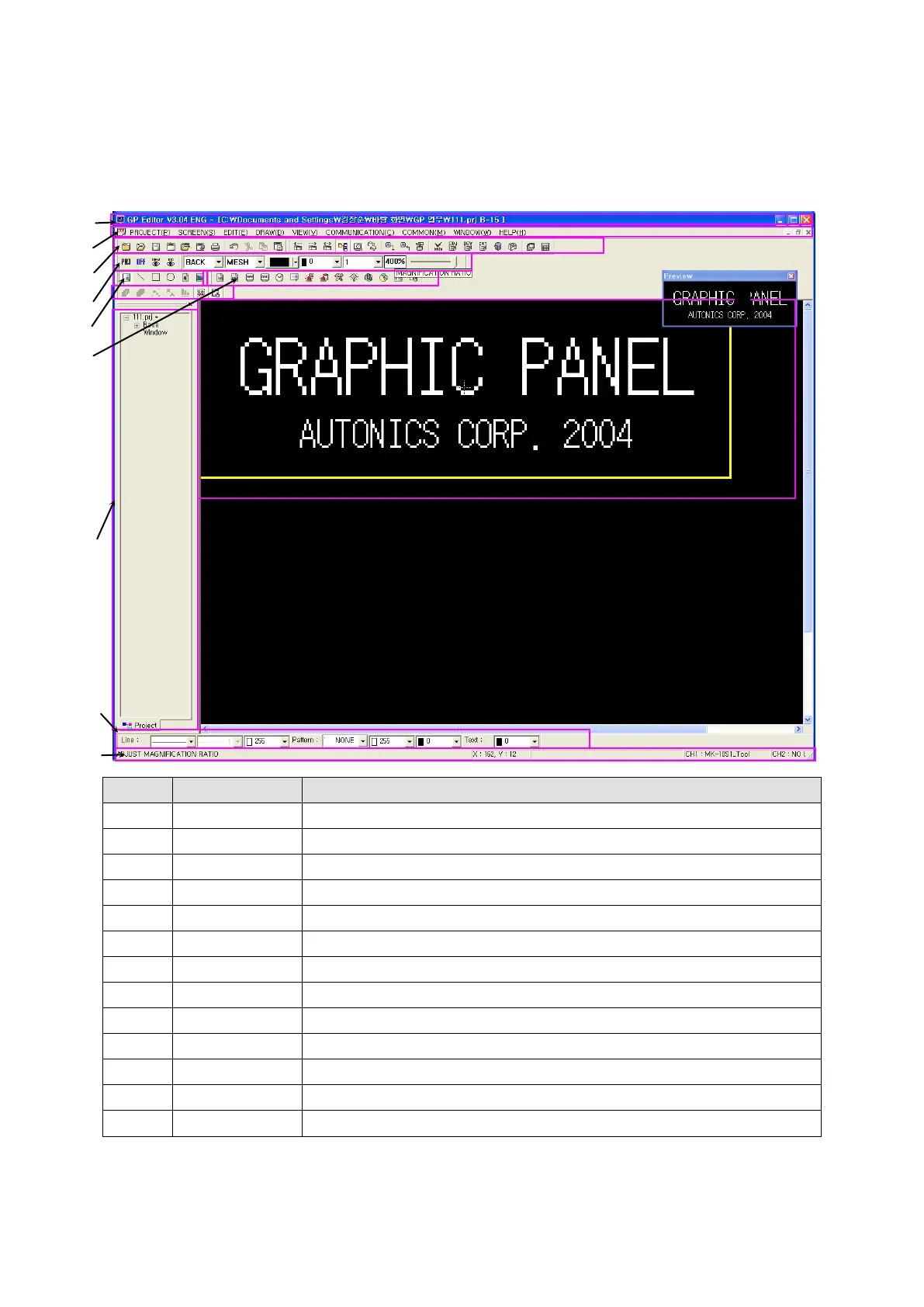

6.1 ORGANIZATION OF EDITOR PROGRAM WINDOW
Number
Name
Description
①
Title bar
Display number and title of working screen.
②
Main menu
Menu for all editing function
③
System tool
Tool for project and screen operation
④
View tool
Tool for visual configuration such as tag, background on a edit screen
⑤
Graphic tool
Tool for drawing a graphic figure
⑥
Tag tool
Tool for creating tags
⑦
Edit tool
Tool for selecting an object, stack order and group
⑧
Work space
Display screen constituting project as a tree
⑨
Drawing tool
Tool for configuration of line, pattern and text of graphic objects
⑩
Status bar
Display type/size of selected object, mouse position.
⑪
Edit area
Available area designed screen data and downloaded to the device
⑫
Non-edit area
Unavailable area with screen data can be arranged as operation problem
⑬
Preview
Show screen on the device with 100% of enlargement ratio.
