30.3 DETAIL CONFIGURATION AND OPERATION OF MAIN
DEVICE
30.3.1 Basic tap
Basic tap
Define condition of key shape and change key shape

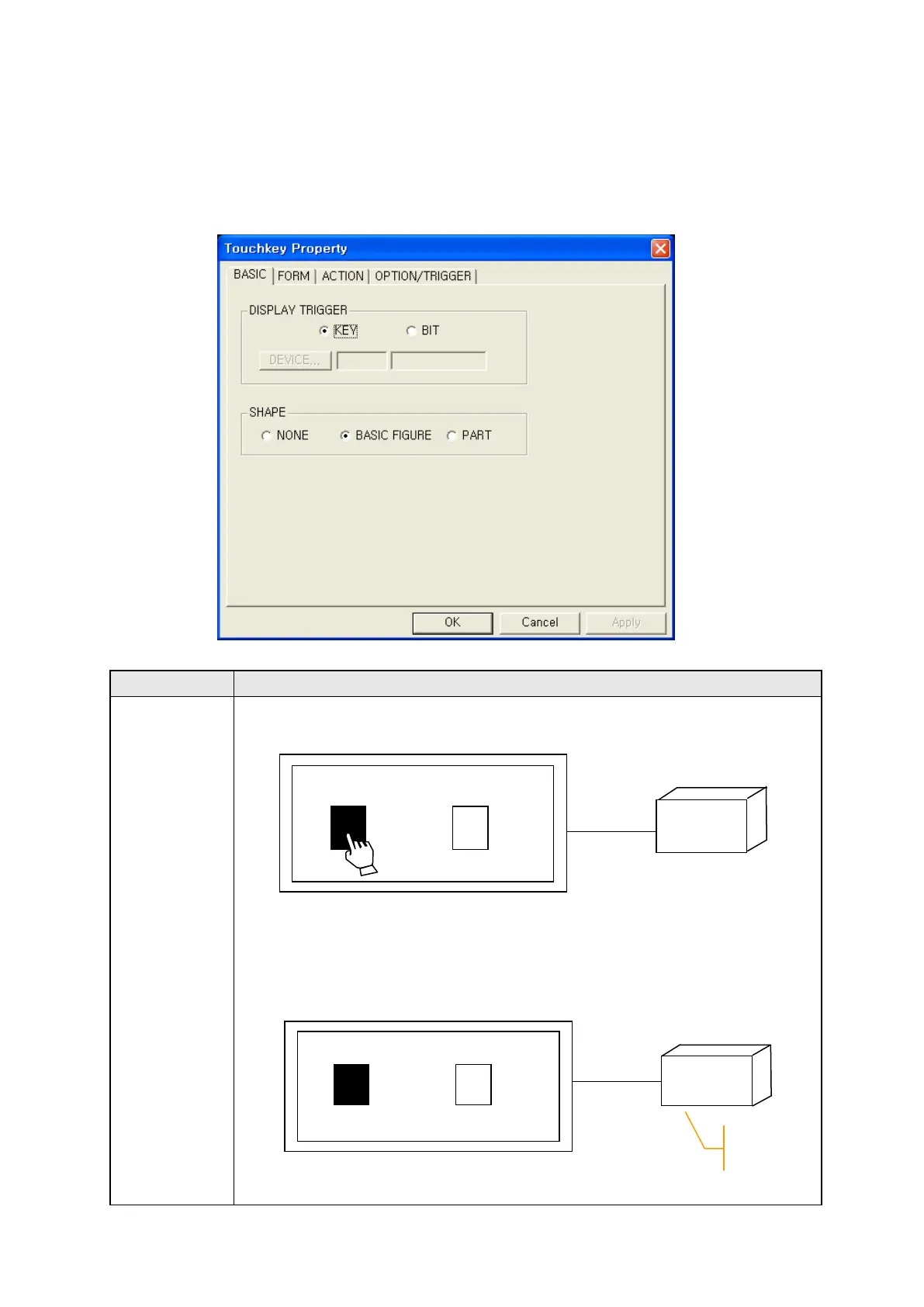

①Display
trigger
• It defines change condition of ON/OFF shape of touch key.
• Key : It displays shape of ON during touch status.
• Bit : According to ON/OFF of trigger device(Designate in ○
2
), it displays shape for
ON/OFF only and ON/OFF of this device has no relation with touch key
operation.
( The key function defined in action tap is executed when it touched.)
PLC
Display trigger = Key
PLC
X010 ON
X011 OFF
Display trigger
Device=X010
Display trigger=Bit
Display trigger
Device=X011
①
②
③
④
