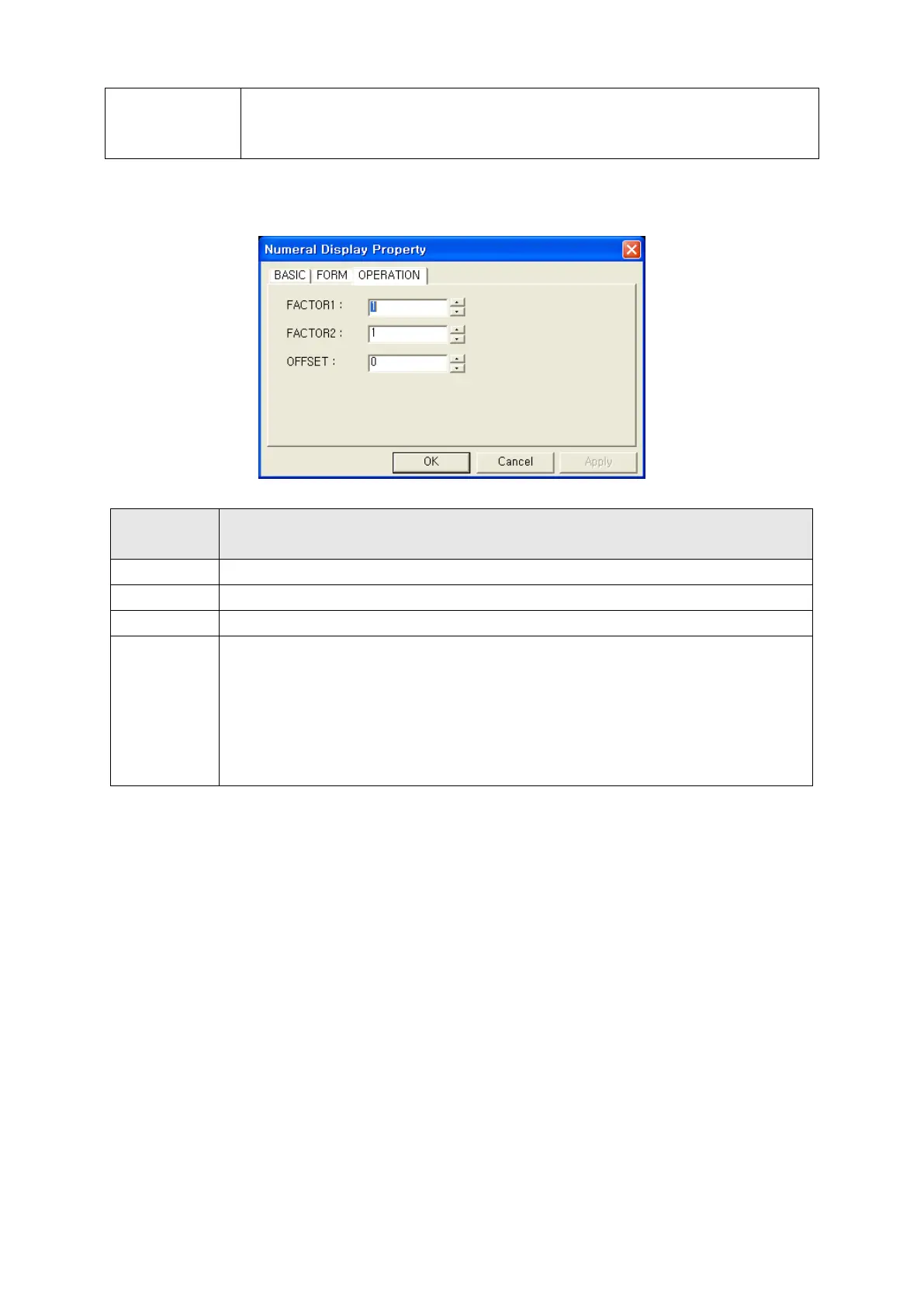

15.3.3 Operation tap
Operation
tap
Display the result value applying for arithmetical operation to saved value
○
1
•
Multiply device value by designated value.
Gain 1
○
2
•
Divide device value by designated value.
Gain 2
○
3
•
Add device value to designated value.
Offset
Operation
• When it is displayed with real number, the operation is not applied.
• Operation is progressed in order of multiplication, division and addition.
Device value=V
Display value = (Gain 1*V)/ Gain 2 + Offset
• The range is differentiated in accordance with device type designated in basic tap
and display type.
①
②
③
