Autonics GP Series User Manual

290

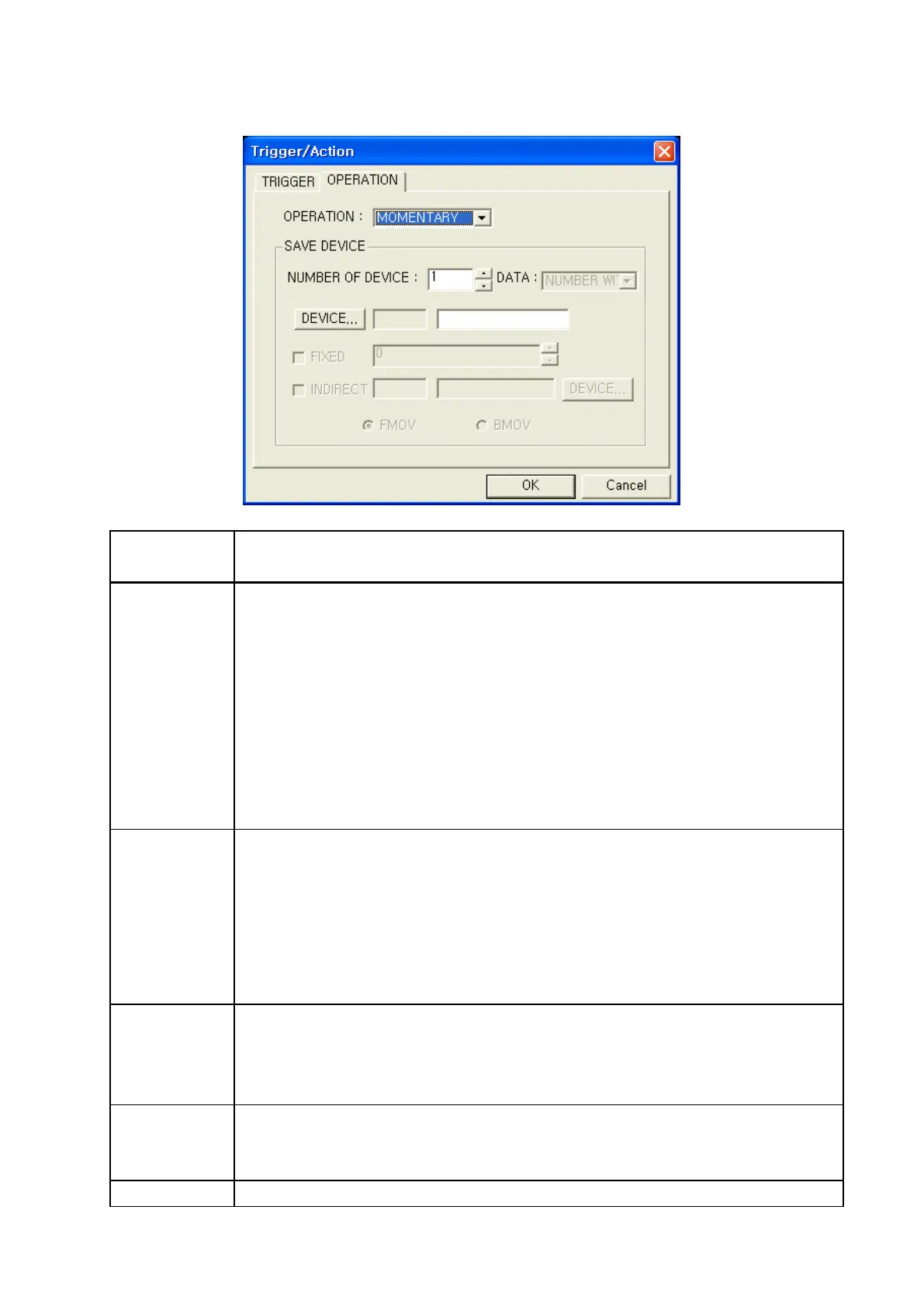

34.2.4 Operation tap
Trigger/operati
on
Configuration of operation executing when trigger is occurred.
①
Operation
• Designate type of operation executing when trigger is occurred.
• Operation type:
Momentary, Set, Reset, Alternation, Word configuration(16bit) and Word
configuration(32bit)
• Set : It makes bit device as ON status when trigger is occurred.
• Reset : It makes bit device as OFF status when trigger is occurred.
• Alternation : It alternates bit device status when trigger is occurred.
• Momentary : It preserves bit device as ON status during satisfying trigger condition.
• Word configuration(16bit): Configure the value in 16bit word device.
•
Word configuration(32bit): Configure the value in 32bit word device.
②
Points
• Designate the number of device this configuration is applied.
• It is operated as many as the number of successive device from device designated
in ④.
• Limit the number of device
- Bit device : 40
- 16bit word device : 20
- 32bit word device : 10
③
Data
•
It is activated when the operation is word configuration(16bit) or word
configuration(32bit).
• Number with sign : Configure device value as positive number with sign.
•
Number without sign : Configure device value as positive number without sign.
④
Device
• Designate device executing operation.
• If operation is related with bit device, it calls bit device window and word device
window is popped up if it is related with word device.
⑤
Device
•
It is able to display and edit designated device.
②
③
④
⑦
⑤
⑥
①
⑧
⑨
⑩
⑪
⑫
