Autonics GP Series User Manual

205

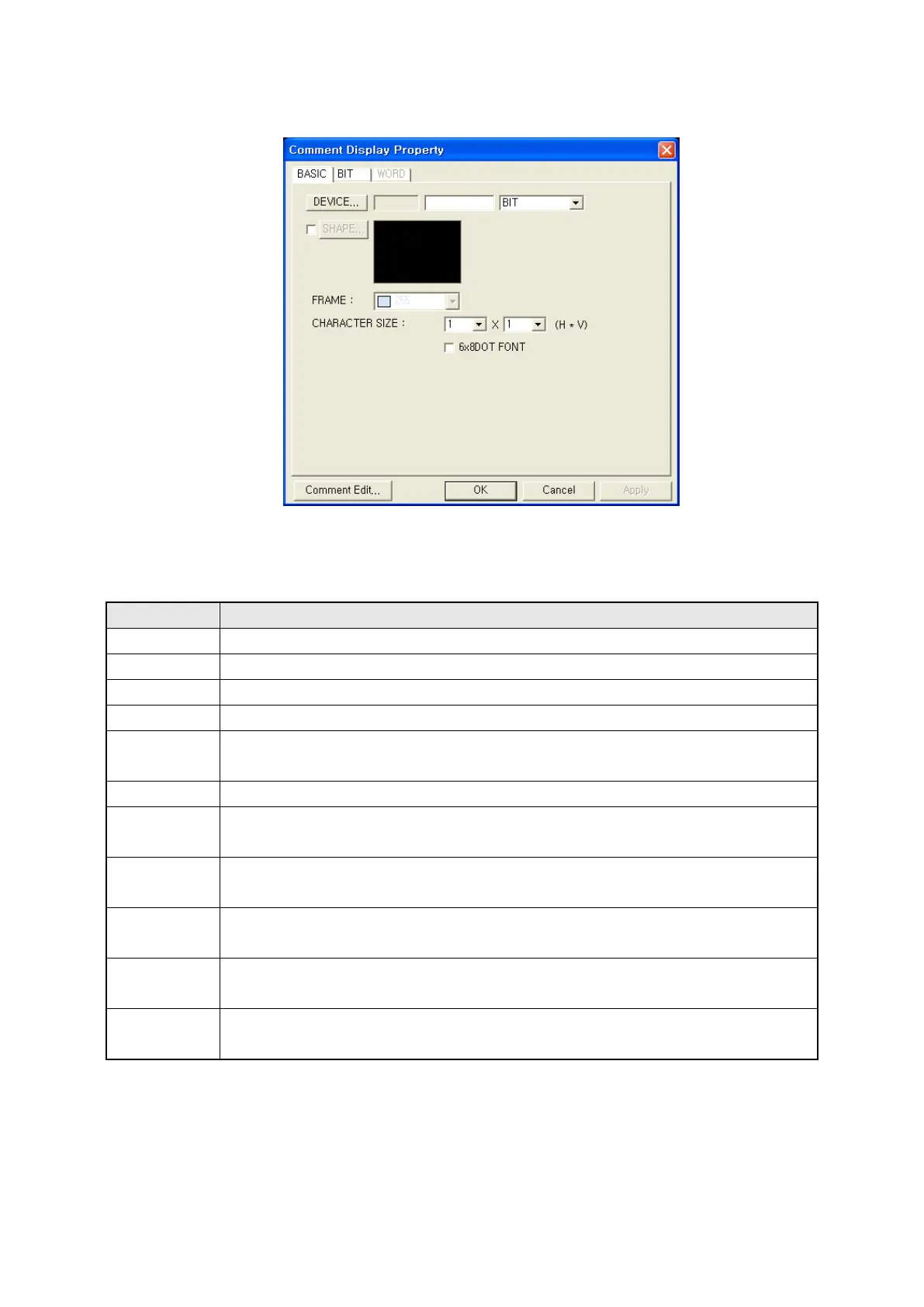

20.3 DETAIL CONFIGURATION
20.3.1 Basic tap
Basic tap
Designate detail about comment display type
①Device
•
Designate monitor device, bit/word device in accordance with bit/word definition.
②
Device
•
Able to display designated device and designate by input directly.
③Type
•
Designate device type as bit or word.
④
Shape
•
Designate to use shape or not.
⑤Shape
• It is activated when ④ is checked.
•
Selecting a button, it is able to select shape calling image select window.
⑥
Shape
•
Display image of currently selected shape.
⑦Frame
• Designate frame color.
•
It is activated when shape is designated.
⑧Width size
• Designate width size of character.
•
Range=1,2,4,6,8 (1 is only available when length size is 0.5.)
⑨Length size
• Designate length size of character.
•
Default=1, Range=0.5,1,2,3,4
⑩6x8
Dot font
• Display character with 6x8 dot font when it checked.
⑪Comment
edit
• It is able to check and edit comment list in comment list window.
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑪
