28.3.2 Division tap

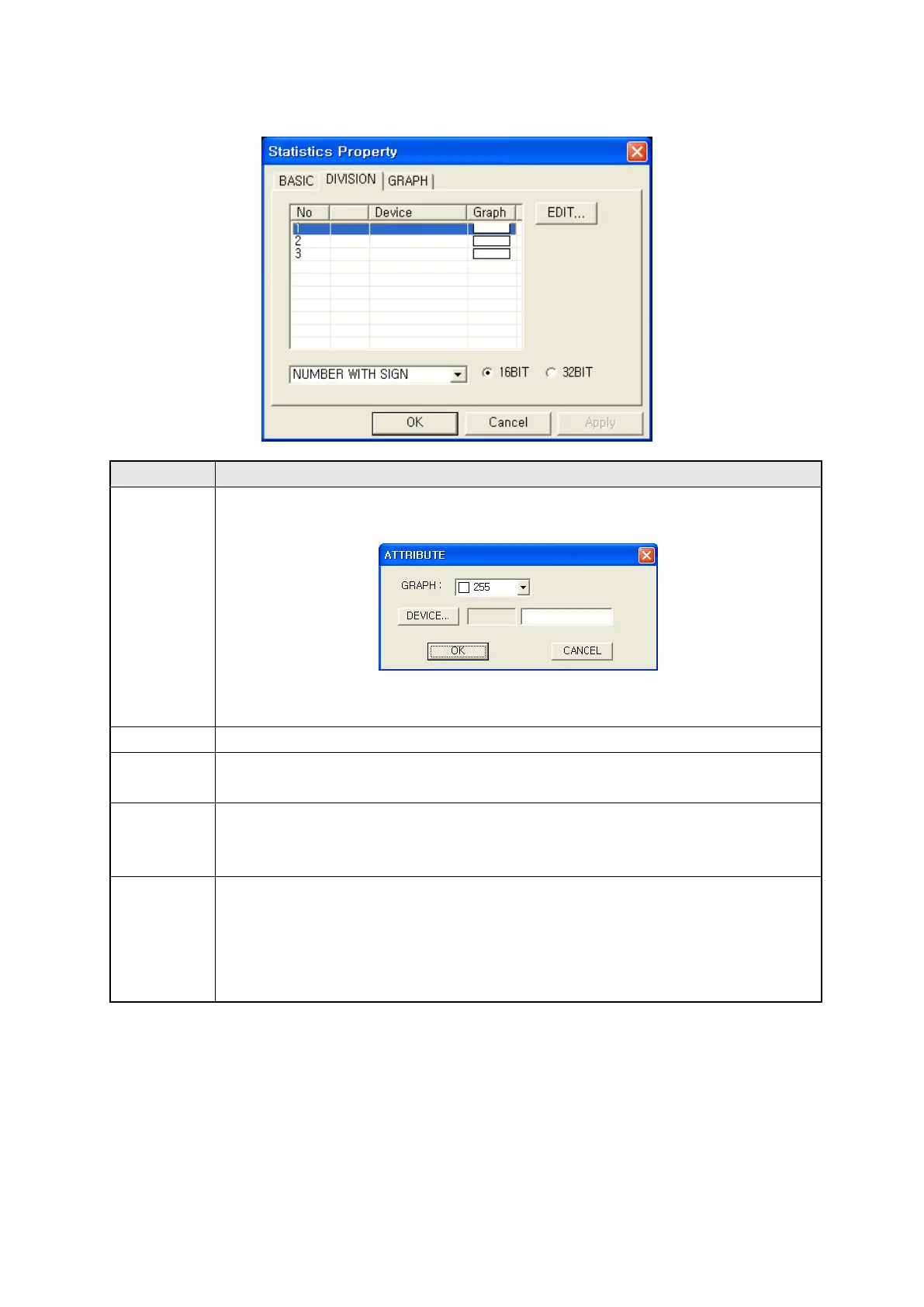

Division tap
Configuration of set device display, color, number and data type of each device.
①Edit
• Designate color of device and partition calling property window.
• Property window
*Device : Designate monitor device calling device window.
*Graph : Designate color of partition.
②
Device
•
Display designated device.
③Graph
• Display color of designated partition.
•
Double-click the item to adjust.
④Data type
• Designate data type of monitor device.
Number with sign : It interprets device value as positive number with sign.
Number without sign : It interprets device value as positive number without sign.
⑤Bit
• Designate bit size of data.
16bit : Single word
32bit : Double word
• When data type is configured as number with sign, it calculates percentage
changing reference value as absolute value.
①
②
③
④
⑤
