⑦Positioning

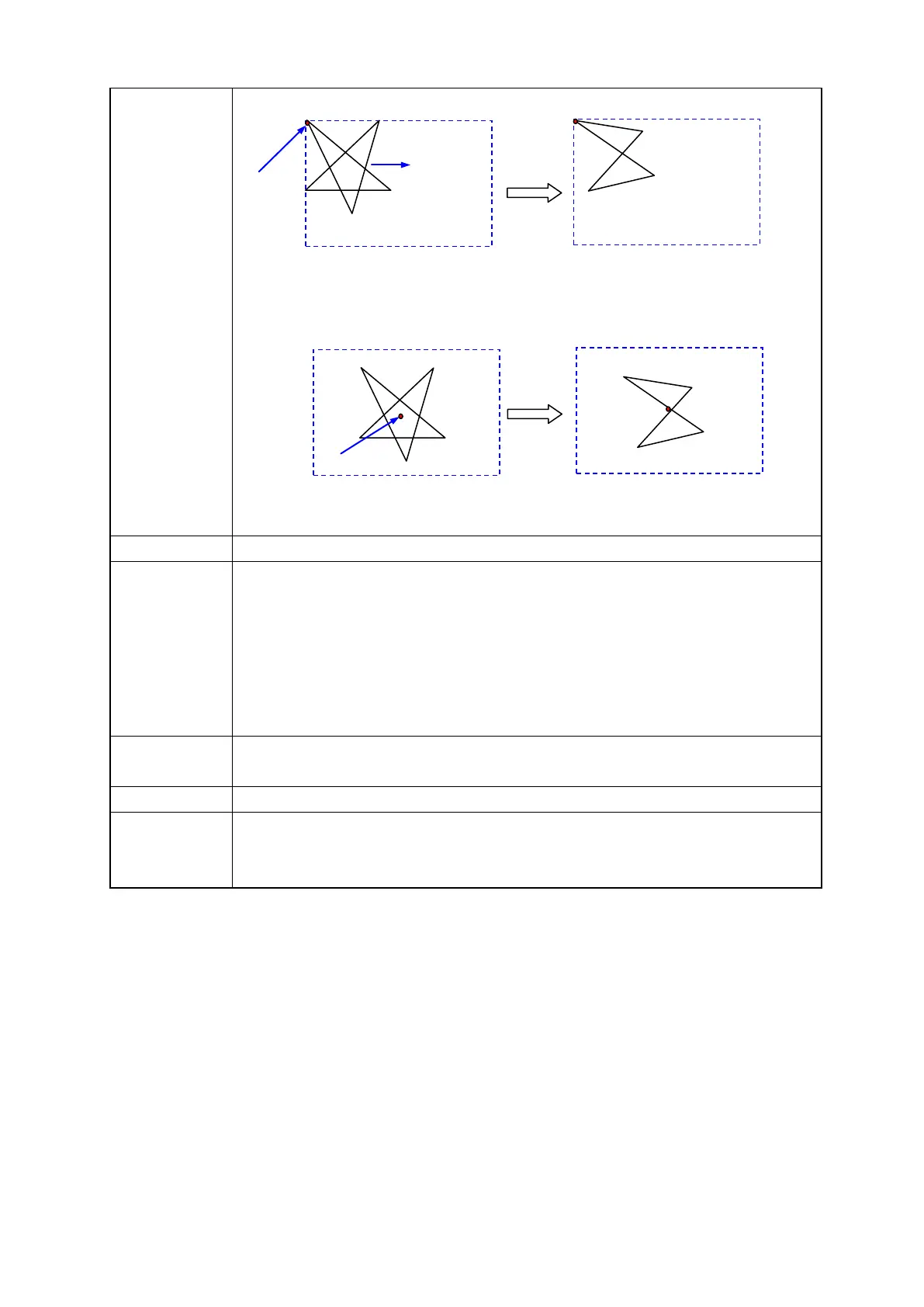

• Top-left : Place top-left point of part in center of tag area.
• Center : Place center point of part in center of tag area.
⑧
•
⑨Mark
• It is deactivated when selecting word device.
• Part switching=The white of designated part in ② is changed designated color in
â‘« when it is fixed.
• Part switching= The white of designated part in ⑩ is changed designated color in
bit tap in accordance with ON/OFF of device when it is device.
• When designating mark color as black, part is not displayed when background
color is black, because only white/black are used.
â‘©Number
• Part switching=It is activated when it is device and mark are selected.
•
Designate part to be displayed when using mark option.
⑪Browse
•
Designate part to be displayed using image selection window for mark option.
â‘«Color
• Part switching=The white of designated part in ② is changed designated color in
this part when it is fixed.
•
Designate same color with background, it is not displayed on screen.
Tag area
Part
Part
switching
Reference
point
Part
switching
Reference
point
