Autonics GP Series User Manual

261
②Direction
• Designate moving direction of needle as device value is bigger.
• Designate as clockwise/counterclockwise.
③Point
• It is activated only when it is a circle and designates scale position on a frame,
0°,90°,180°, 270°. The start point of needle designated in a point is +180°,
Point = p, Number of scale=N, scale position is (degree),
p, p+360°/N, p+2*360°/N, …, p+(N-1)*360°/N
④Data type
• Designate data type of designated word device.
• Number with sign : It interprets device value as positive number with sign.
•
Number without sign : It interprets device value as positive number without sign.
⑤
• The fixed value is used as max.value displayed by panel meter needle when
designating as fixed.
•
Designate word device and use it as max.value when it is not fixed.
⑥
•
Designate fixed max.value.
⑦
•
Select device to be referred as max.value calling device window.
⑧ •
It shows designated device in
⑦
and it is able to input device directly.
⑨~⑫
• Designate min.value displayed by panel meter needle.
0°
90°
180°
270°

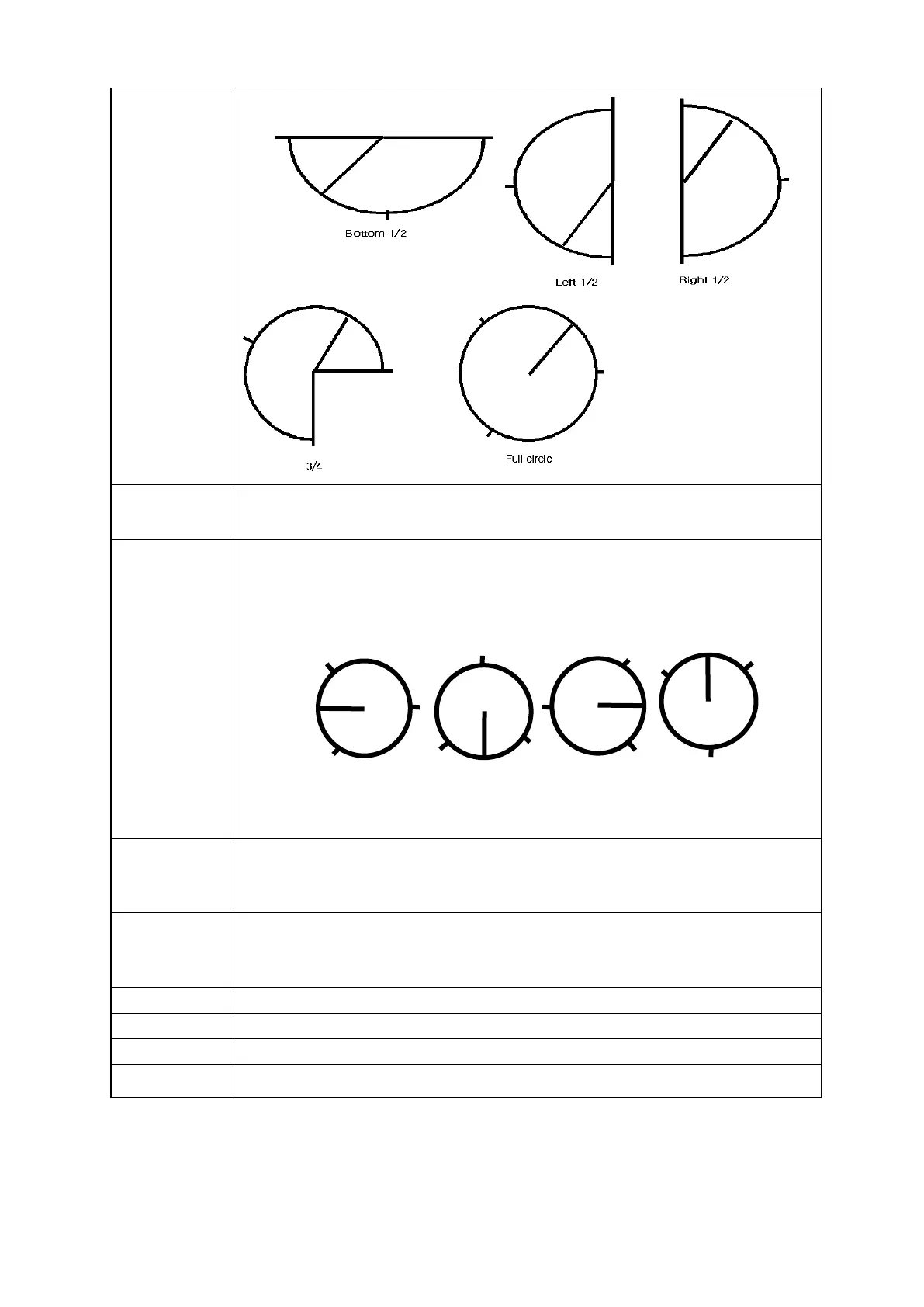

Shape according to point designation for number of scale=3.
