Autonics GP Series User Manual

83

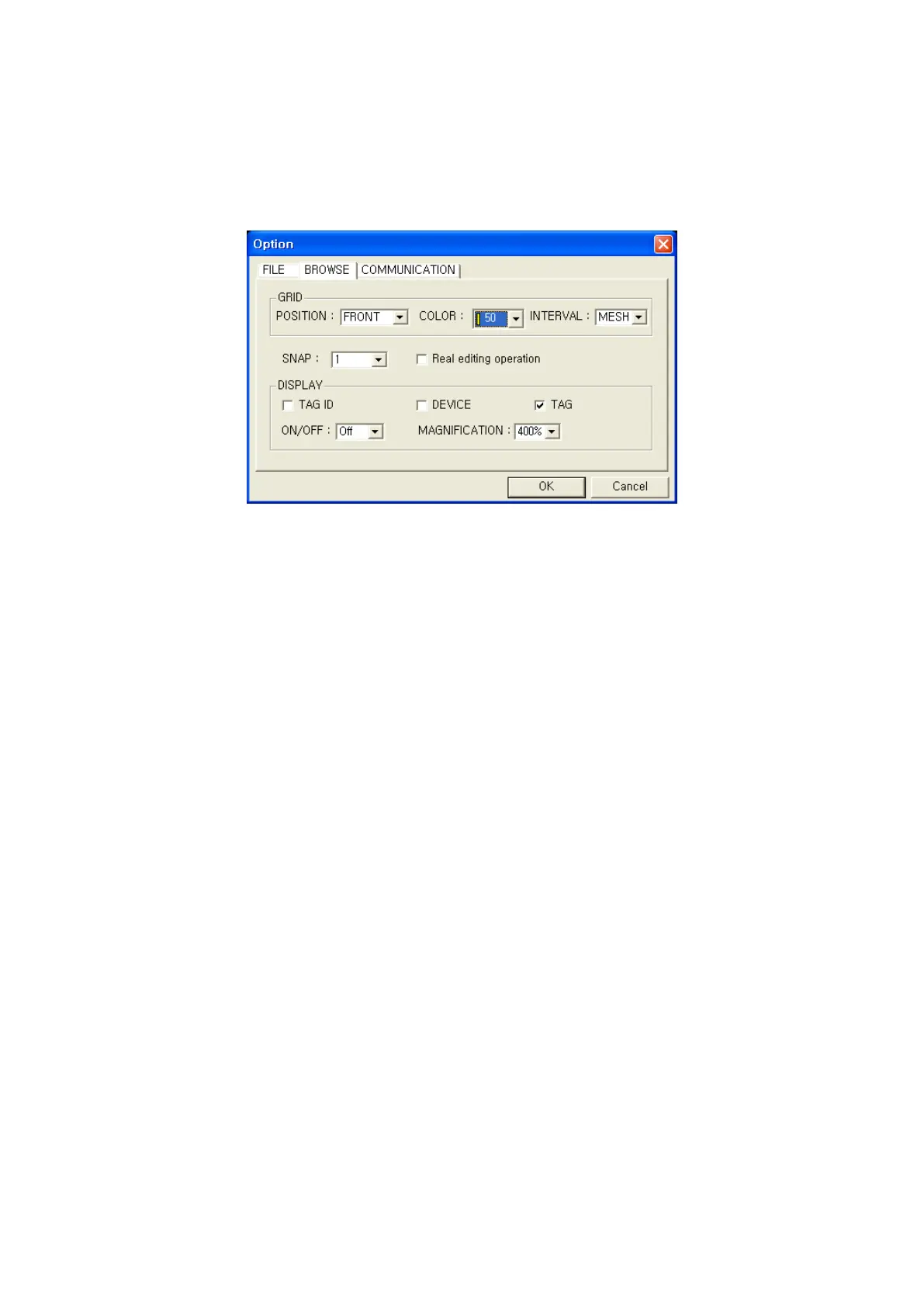

7.4.3 Designation of view option
Grid display, screen enlargement, snap, tag, ID display and device display are for making screen data
efficiently. It is able to configure in view tap.
(1) Grid : Scale indicating arrangement of objects for editing
• Grid position :
Front of object = Display on the tag, Behind of object = Display under the tag, None = Do not
display.
• Designation of color : Designate among white, black, blue, red, pink, light green, light blue and
gray
• Designation of interval : Designate among 2, 4, 8, 16, 24, 32, 40, 48, 56, 64 and Mesh.
(2) Option for tag display
• Tag ID : Decide display of tag ID.
• Tag : Decide display of tag content.
• Device : Decide display of device name connected with tag.
(3) Designation of screen enlargement ratio : Select among 100%, 200%, 300% and 400%.
(4) Designation of snap : Decide snap value of screen. It is able to select among 1, 2, 4, 8, 16 and
Mesh.
(A mesh indicates same size (16×20) of resolution of touch switch.)
(5) ON/OFF : Display image status of tag and ON/OFF image of tag on screen.
(6) ‘Show real image when editing object’ is selected, it displays object as it is or outline only with
dotted line.
