Managing VLANs
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 185
D-Link UWS User Manual

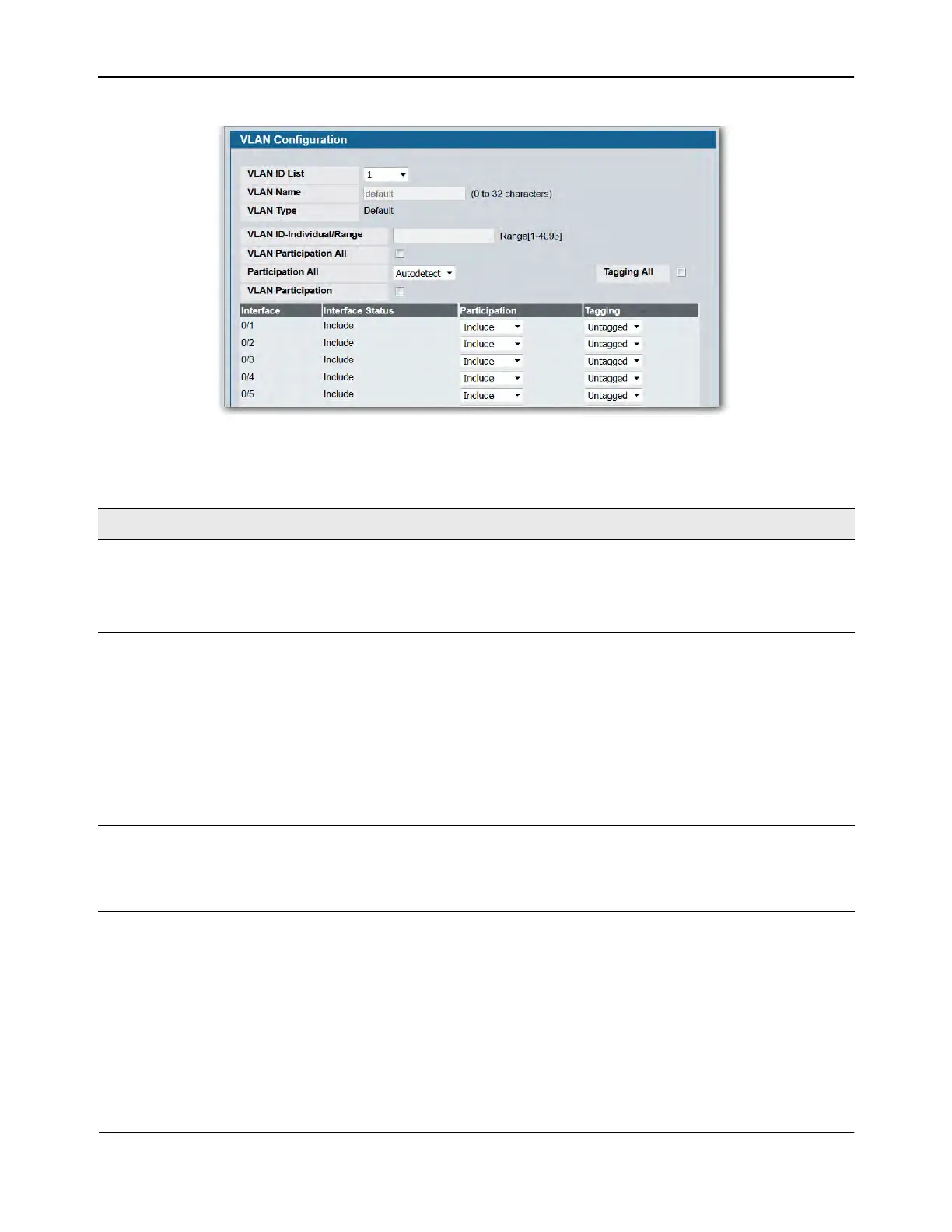

Figure 95: VLAN Configuration
Table 81: VLAN Configuration Fields
Field Description
VLAN ID List You can use this screen view/modify/delete an existing VLAN configuration or
to create new single/multiple VLAN IDs specified in VLAN ID field. Use this pull
down menu to select one of the existing VLANs to view/modify the
configuration. You can select Create to add new VLANs or select Delete from
the pull down to delete the existing VLANs
Participation All Use this field to specify whether all the ports will participate in this VLAN. The
factory default is 'Autodetect'. The possible values are:
Include: All the ports are always a member of this VLAN. This is equivalent
to registration fixed in the IEEE 802.1Q standard.
Exclude: All the ports are never a member of this VLAN. This is equivalent
to registration forbidden in the IEEE 802.1Q standard.
Auto detect: Specifies that all ports may be dynamically registered in this
VLAN via GVRP. All ports will not participate in this VLAN unless it receives
a GVRP request. This is equivalent to registration normal in the IEEE
802.1Q standard.
Tagging All Select the tagging behavior for all the ports in this VLAN. The factory default
is 'Untagged'. The possible values are:
Tagged: All frames transmitted for this VLAN will be tagged.
Untagged: All frames transmitted for this VLAN will be untagged.
