A radio operating in Sentry Mode displays the letter “S” in place of the antenna on the AP icon, as Figure 431
shows.

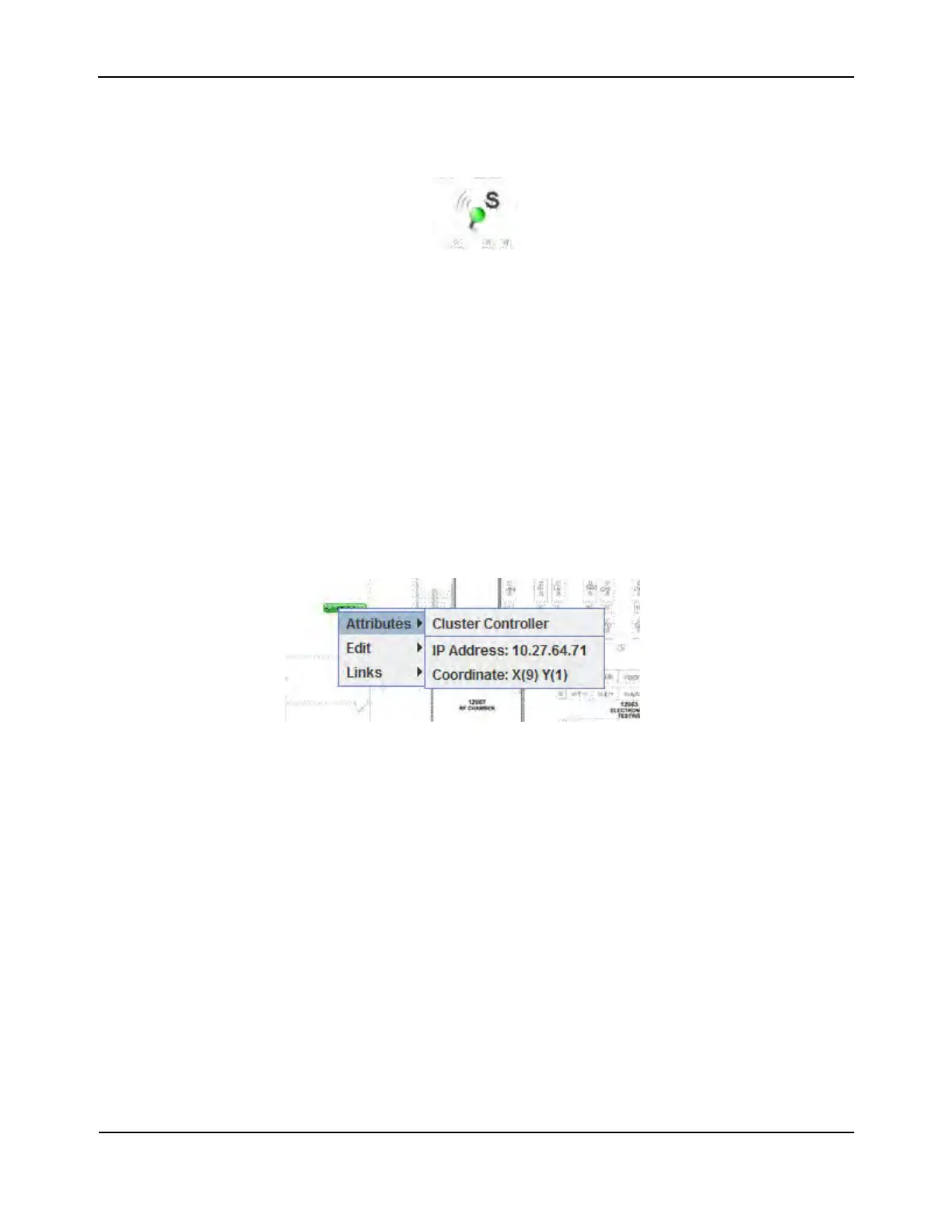

Figure 431: Sentry Mode—Detailed View
When the AP Power Display is enabled, radios in sentry mode show a gray AP power display image around the
AP.
The Channel Color legend maps the color of the power display image to the channel that the image color
represents. The color corresponds to the channel that the radio is using for transmission. The available
channels depend on the mode and country of operation.
Viewing Component Information
After you place a component on the graph, you can right-click the component to learn more information about
it, ungraph it, or to access a page on the Web UI to manage or monitor the component. You must be logged
on to the switch for the links to be active.
Figure 432: Wireless Component Attributes

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
