Visualizing the Wireless Network
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 667
D-Link UWS User Manual
Visualizing the Wireless Network
The WLAN Visualization component is an optional feature that graphically shows information about the
wireless network. WLAN Visualization uses a Java applet to display switches, APs, and associated wireless
clients. The WLAN Visualization tool can help you visualize where the APs and clients are in relationship to the
building.
This section contains the following subsections to help you manage the WLAN Visualization component of the
D-Link Unified Switch:
• WLAN Visualization Overview
• Importing and Configuring a Background Image
• Setting Up the Graph
• Checking the Location of an AP or Client
• Understanding the Menu Options and Icons
• Viewing Component Information
WLAN Visualization Overview
Figure 420 shows an example of a floor plan with a DWS-4000 Series switch that has three managed APs. The
figure also shows a peer switch, a rogue AP and client, and several unknown APs. The Device Location feature
has been triggered and has located the probable location of a device.

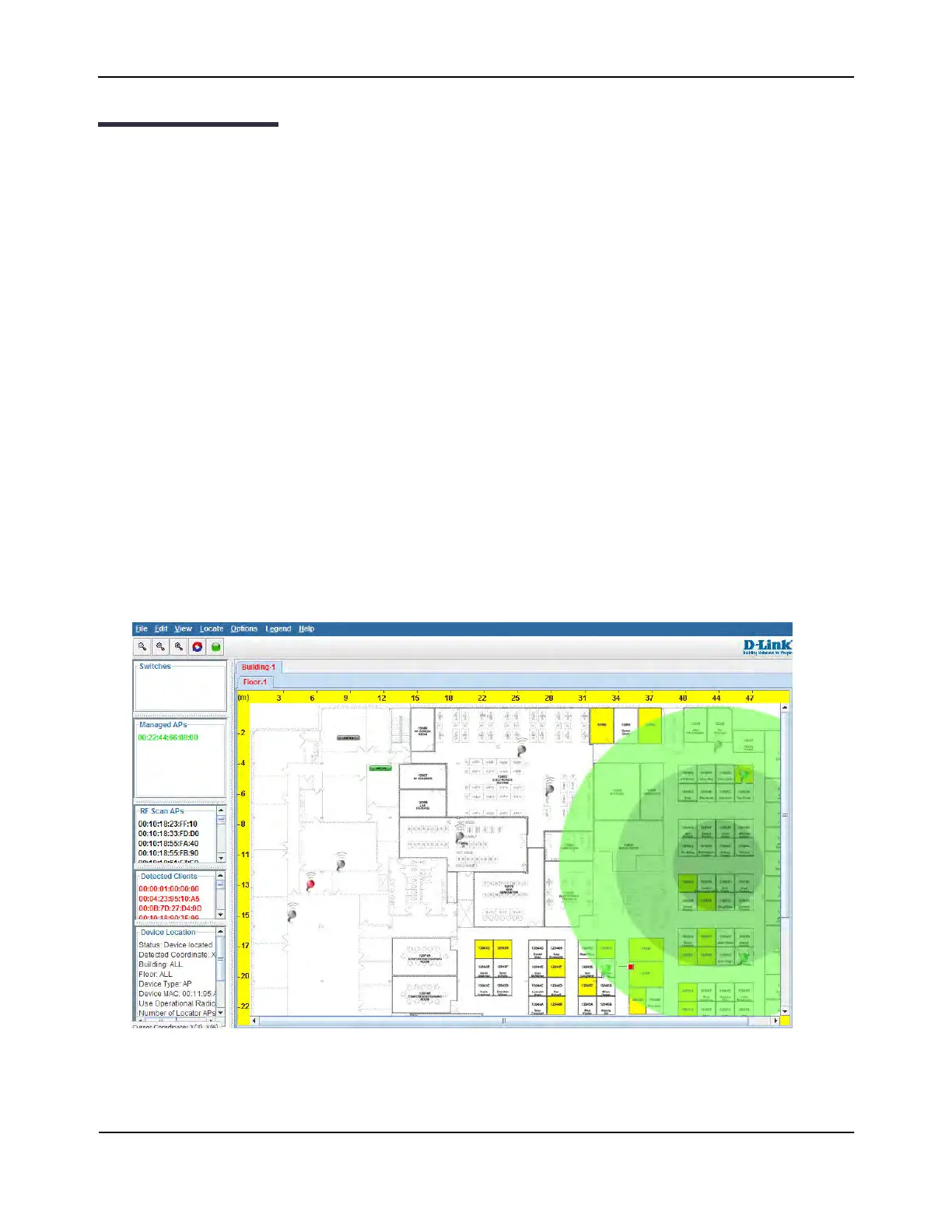

Figure 420: Sample WLAN Visualization
