D-Link DWL-2600AP User Manual

Virtual Router Redundancy Protocol (VRRP)
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 332
D-Link UWS User Manual
Virtual Router Statistics
Use the Virtual Router Statistics page to display statistics for a specified virtual router.
To display the page, click LAN > Monitoring > L3 Status > Virtual Router Statistics in the navigation tree.
Figure 217 shows the fields on the Virtual Router Statistics page for a switch that has one or more virtual
routers configured.

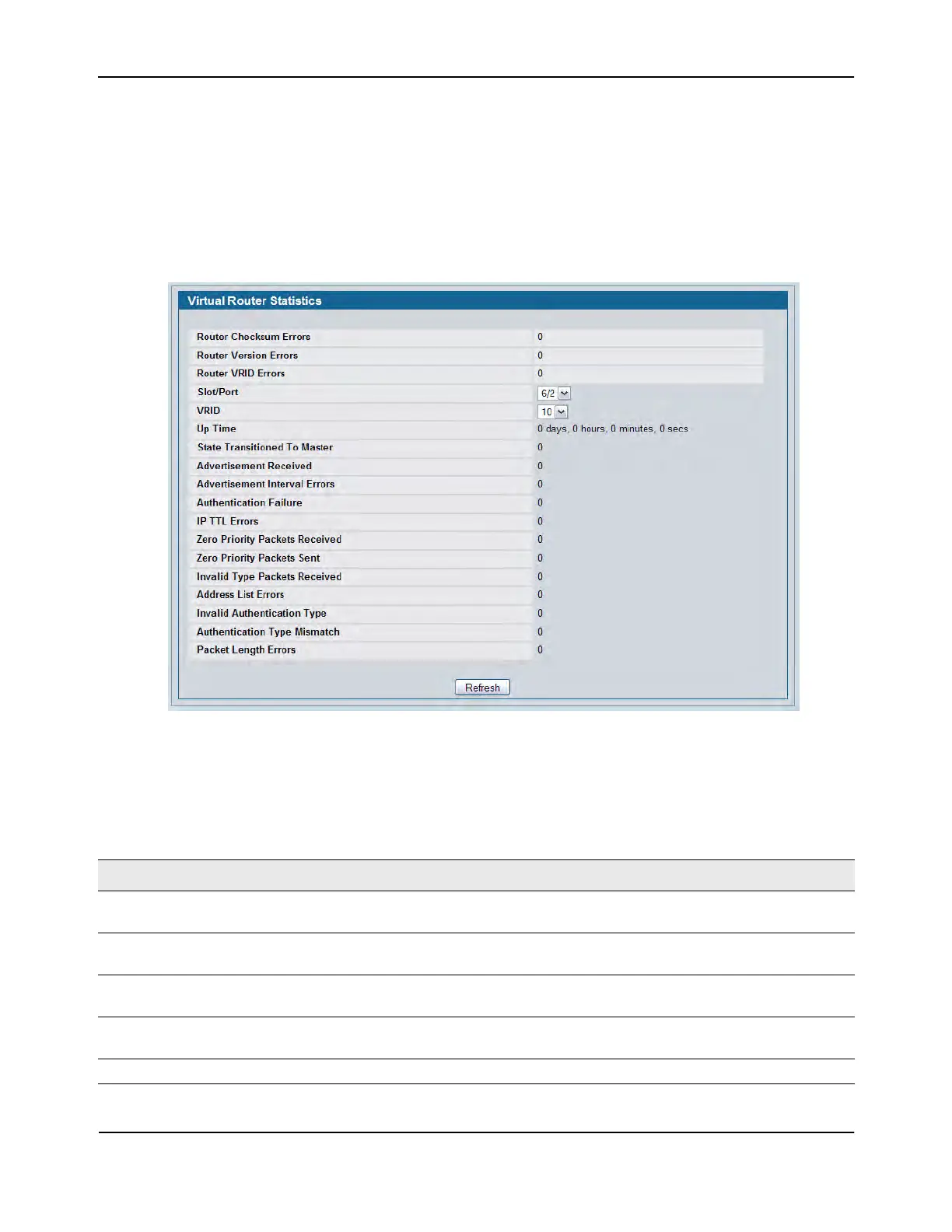

Figure 217: Virtual Router Statistics—Virtual Router Configured
The Virtual Router Statistics page contains the fields listed below. Many of the fields display only when there
is a valid VRRP configuration.
Table 198: Virtual Router Statistics Fields
Field Description
Router Checksum Errors The total number of VRRP packets received with an invalid VRRP checksum
value.
Router Version Errors The total number of VRRP packets received with an unknown or unsupported
version number.
Router VRID Errors The total number of VRRP packets received with an invalid VRID for this virtual
router.
VRID and Slot/Port Select the existing Virtual Router, listed by interface number and VRID, for
which you want to display statistical information.
VRID the VRID for the selected Virtual Router.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
