Configuring a Network to Use WPA2-Enterprise and Dynamic
VLANs
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 708
D-Link UWS User Manual
Configuring RADIUS Information and AP Profiles on the Switch
The procedures in this section describe how to configure the RADIUS information on the switch, how to enable
RADIUS-assigned VLANs, and how to configure the AP profile to be applied to the APs that the switch manages.
1. Connect to the web-based administration interface on the D-Link DWS-4000 Series switch. If you know the
IP address of the switch, enter it into a browser to access the administration pages for the switch. If you do
not know the IP address of the switch, connect to the console port (Baud rate: 115200, Data: 8 bit, Parity:
none, Stop: 1 bit, Flow control: none), and enter the
show network command to view the switch IP address.
2. Configure the RADIUS server information.

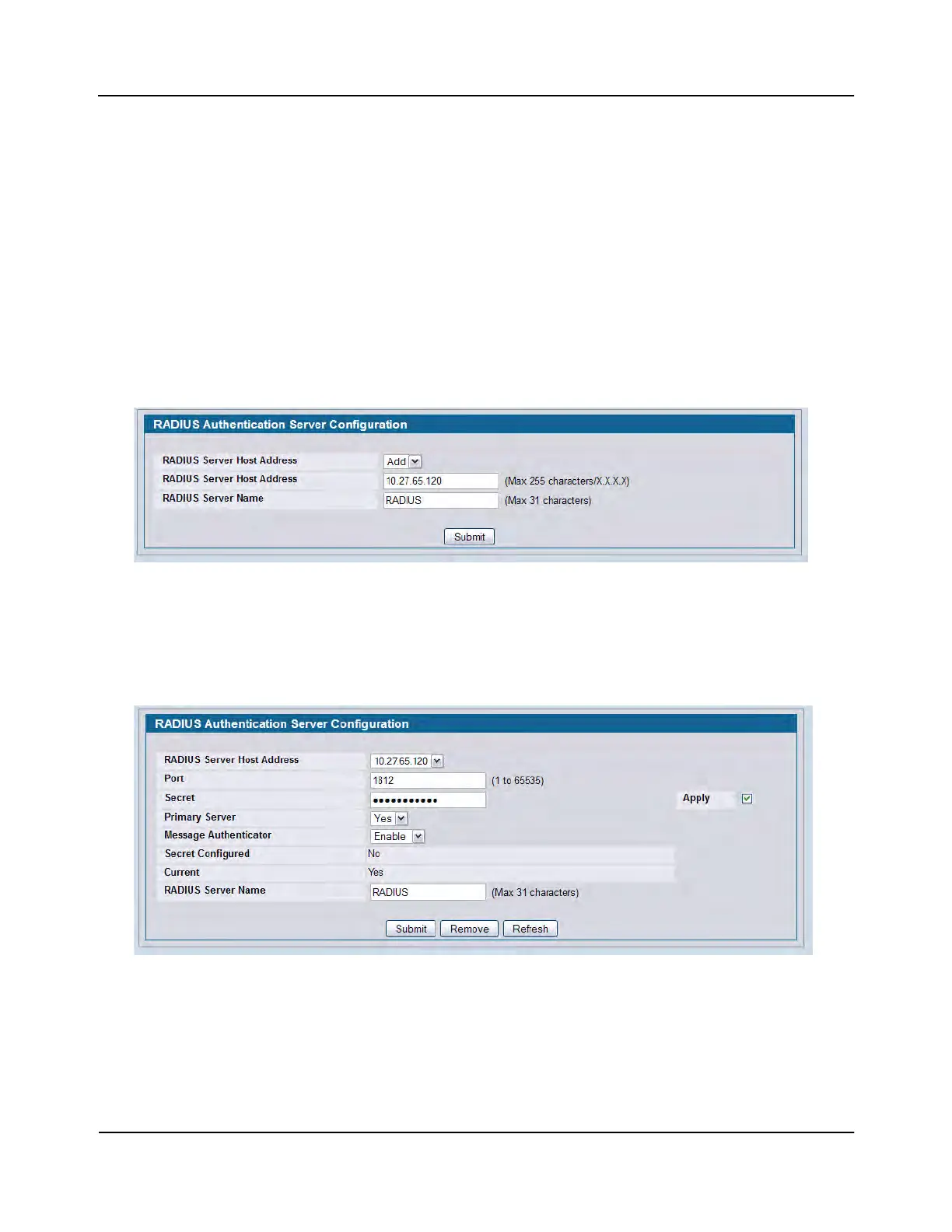

a. Go to the LAN > Security > RADIUS > RADIUS Authentication page.
b. Configure the RADIUS server host address, for example 10.27.64.120.
c. Configure the RADIUS server name, for example RADIUS.
d. Click Submit. Additional fields appear on the screen.
e. To configure the password (shared secret) that the switch uses to authenticate with the RADIUS server,
select the Apply option and type the password (for example secret12345) in the Secret field. The secret
you configure must match the secret configured in the client entry for the switch on the RADIUS server.
f. From the Primary Server field, select Yes.
g. Click Submit.
3. Enable Dynamic VLAN creation mode to allow RADIUS-assigned VLANs to be automatically created on the
switch if they do not already exist.
a. Access the LAN > Security > Port Access Control page
b. From the Dynamic VLAN Creation Mode menu, select Enable.
