ACL Interface Configuration
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 371
D-Link UWS User Manual
ACL Interface Configuration
When an ACL is bound to an interface, all the rules that have been defined are applied to the selected
interface. Use the ACL Interface Configuration page to assign ACLs and Interfaces and prioritize the ACLs that
are bound to each interface. To display the ACL Interface Configuration page, click LAN > QoS > Access Control
Lists > Interface Configuration in the navigation menu.

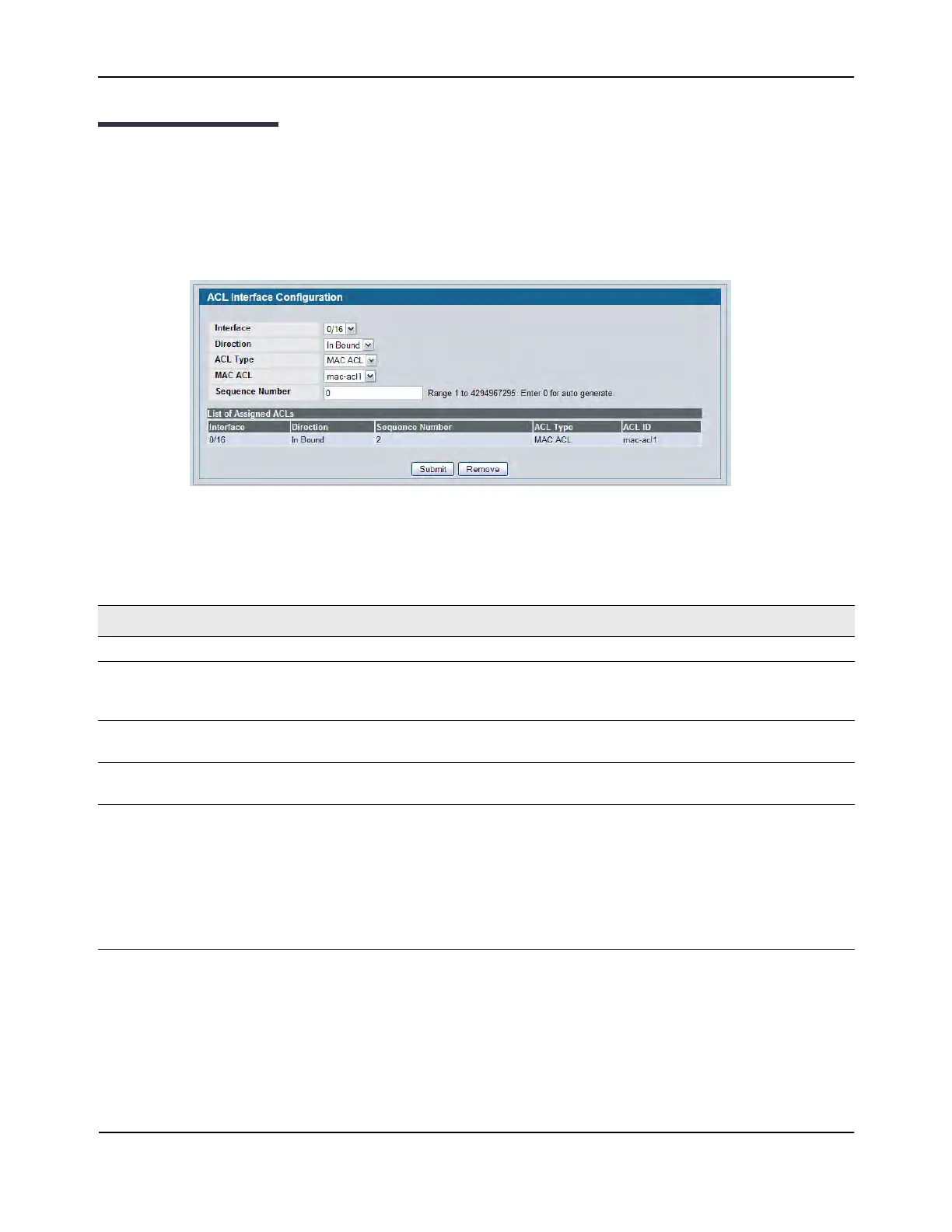

Figure 250: ACL Interface Configuration
If an ACL has been assigned to the interface, it displays in the table at the bottom of the page.
Table 216: ACL Interface Configuration Fields
Field Description
Interface Select the interface or LAG from the menu.
Direction Specifies the packet filtering direction for the ACL. The system supports
Inbound filtering. inbound filtering means the system applies the ACL rules to
packets as they enter the interface.
ACL Type Use the menu to select the ACL type to which incoming packets are matched.
Packets can be matched to IP- or MAC-based ACLs.
IP/MAC ACL Select the ACL of the specified type to apply to the interface from the
dropdown menu.
Sequence Number Assigns the priority of this ACL. If more than one ACL is applied to an interface,
then the match criteria for the highest sequence ACLs are checked first. A
lower number indicates higher priority. If a sequence number is already in use
for this interface and direction, the specified access list replaces the currently
attached access list using that sequence number. If you do not specify a
sequence number, a sequence number that is one greater than the highest
sequence number currently in use for this interface and direction is used. The
valid range is 1-4294967295.
