Configuring Advanced Settings
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 621
D-Link UWS User Manual
Access Point Profile QoS Configuration
Quality of Service (QoS) provides you with the ability to specify parameters on multiple queues for increased
throughput and better performance of differentiated wireless traffic like Voice-over-IP (VoIP), other types of
audio, video, and streaming media as well as traditional IP data over the D-Link Unified Switch.
To display the QoS Configuration page for an AP profile, click WLAN > Advanced Configuration > AP Profiles,
select the tab corresponding to the profile, and click the QoS tab. Click the radio button corresponding to the
radio interface you want to configure (QoS is configured per radio interface).

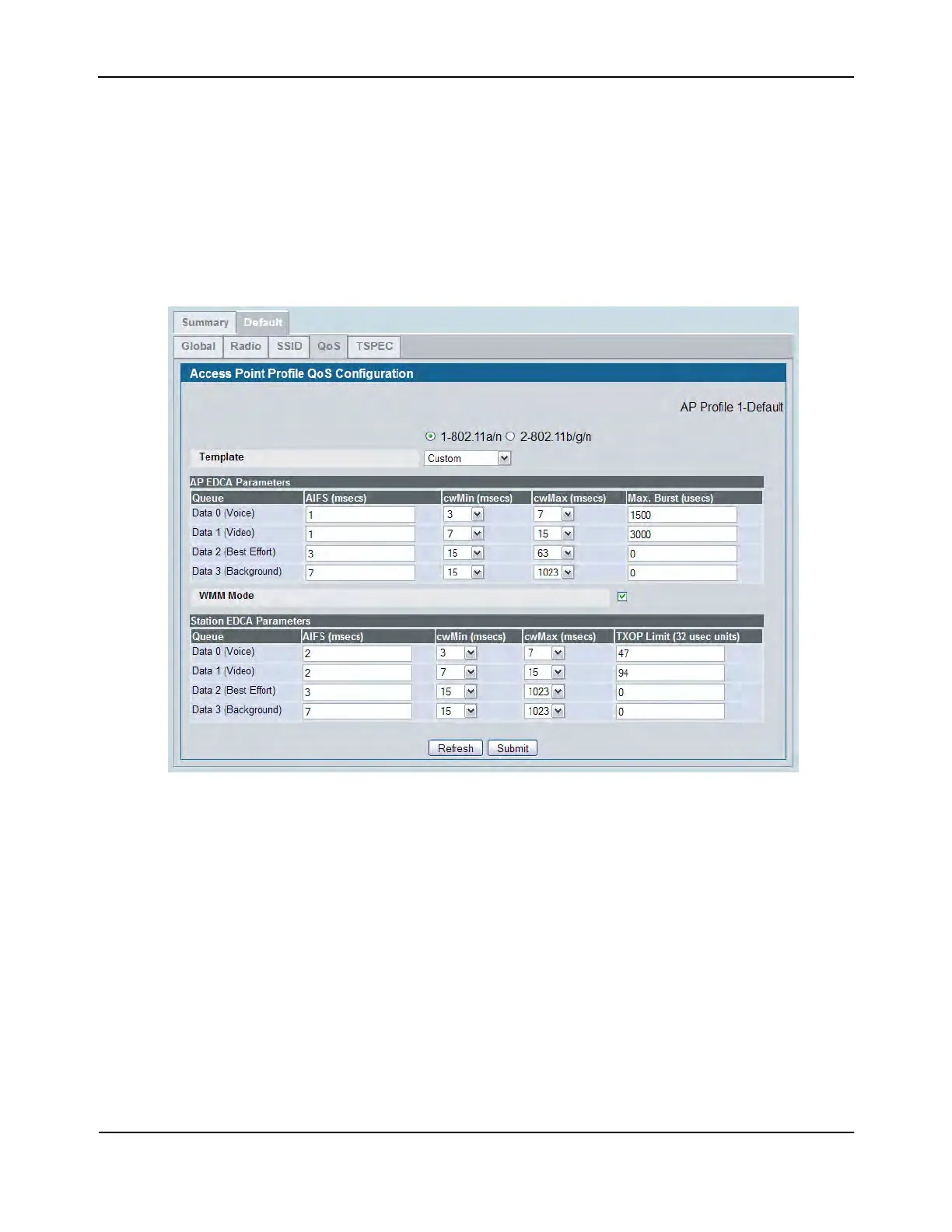

Figure 390: QoS Configuration
Configuring Quality of Service (QoS) on the D-Link Unified Switch consists of setting parameters on existing
queues for different types of wireless traffic, and effectively specifying minimum and maximum wait times
(through Contention Windows) for transmission. The settings described here apply to data transmission
behavior on the access point only, not to that of the client stations.
AP Enhanced Distributed Channel Access (EDCA) Parameters affect traffic flowing from the access point to the
client station. Station Enhanced Distributed Channel Access (EDCA) Parameters affect traffic flowing from the
client station to the access point.
You can specify custom QoS settings, or you can select a template that configures the AP profile with pre-
defined settings that are optimized for data traffic or voice traffic.
