D-Link DWL-2600AP User Manual

RADIUS Settings
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 416
D-Link UWS User Manual
RADIUS Server Statistics
To access the RADIUS Server Statistics page, click LAN > Monitoring > RADIUS Statistics > Server Statistics in
the navigation menu.

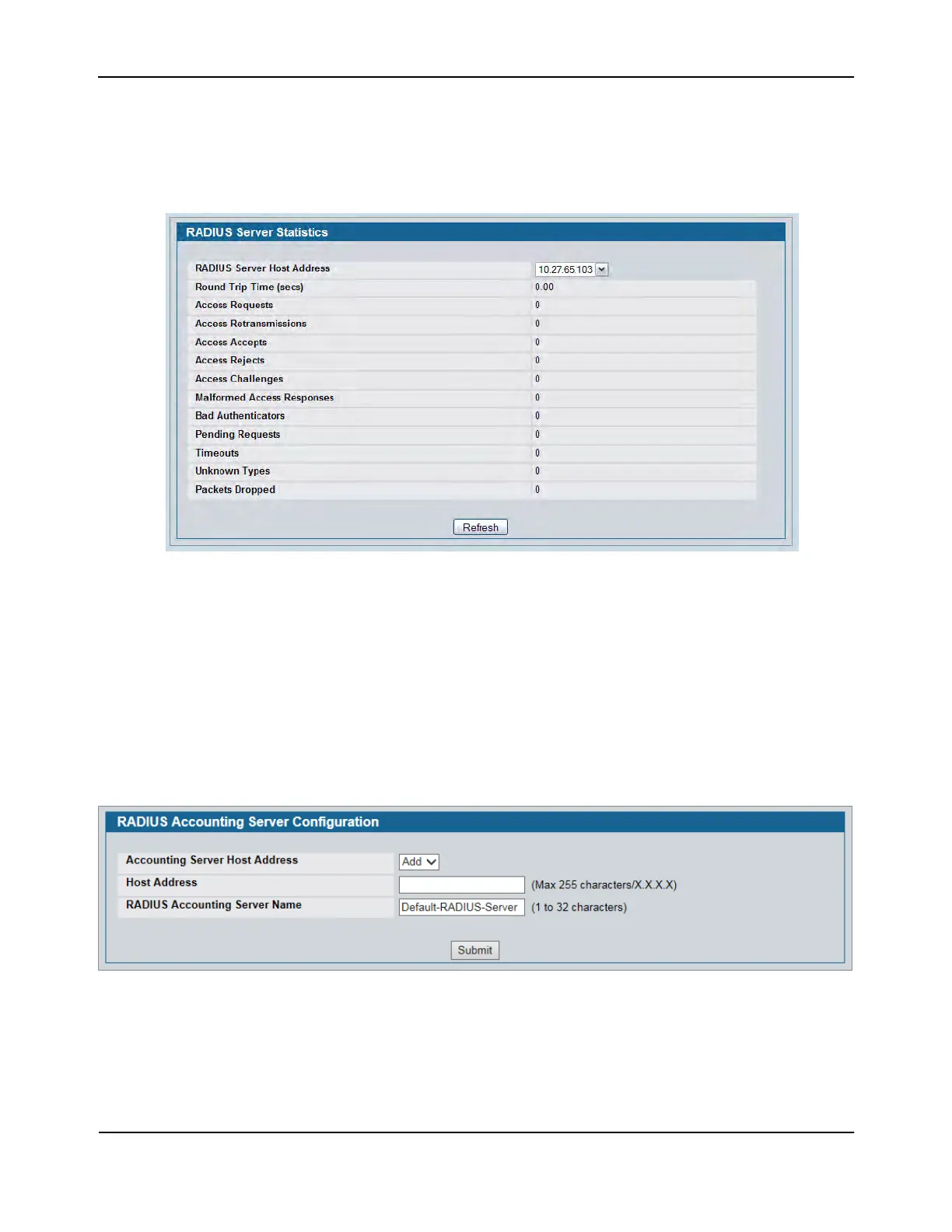

Figure 285: RADIUS Server Statistics
RADIUS Accounting Server Configuration
From the RADIUS Accounting Server Configuration page, you can add a new RADIUS accounting server,
configure settings for a new or existing RADIUS accounting server, and view RADIUS accounting server status
information. The RADIUS client on the switch supports up to 32 named authentication and accounting servers.
If there are no RADIUS accounting servers configured on the system or if you select Add from the Accounting
Server Host Address menu, a subset of the fields described in the following table are available.
Figure 286: Add RADIUS Accounting Server
After you enter the Accounting server host address and click Submit, the additional configuration fields
appear.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
