Managing LLDP
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 265
D-Link UWS User Manual
• Click Refresh to update the information on the screen with the most current data.
Remote Device Information
Use the LLDP Remote Device Information page to view the data that a specified interface has received from
other LLDP-enabled systems.
To display the LLDP Remote Device Information page, click LAN > Monitoring > LLDP Status Remote Device
Information in the navigation tree.

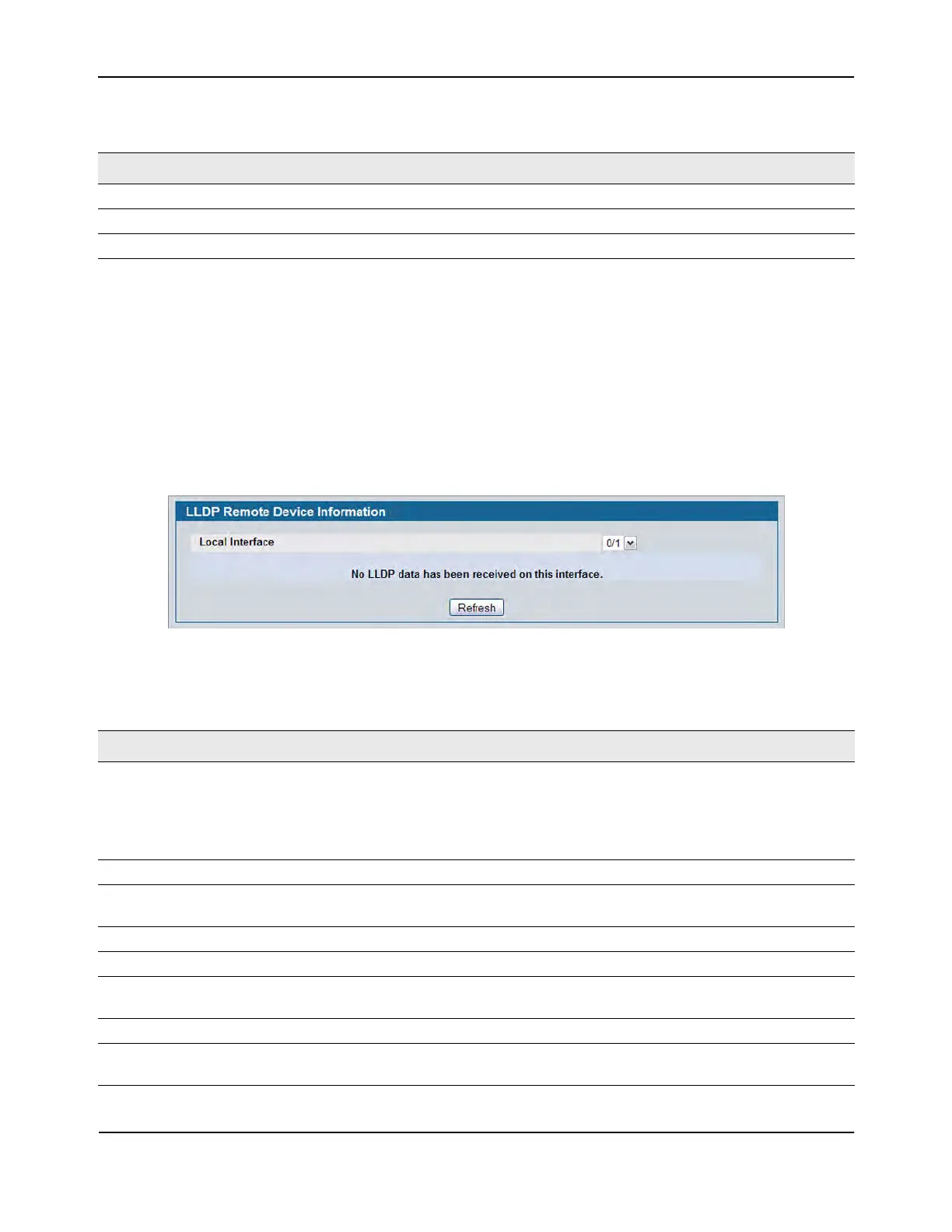

Figure 164: LLDP Remote Device Information
Table 146: LLDP Local Device Summary Columns
Field Description
Interface Displays the slot/port on which LLDP-802.1AB frames can be transmitted.
Port ID Displays the string describing the source of the port identifier.
Port Description Displays the description of the port associated with the local system.
Table 147: LLDP Remote Device Information Fields
Field Description
Local Interface Select the slot/port on the local system to display the LLDP information it has
received.
Note: If no LLDP data has been received on the select interface, then a
message stating so displays. If the selected interface has received LLDP
information from a remote device, the following fields display:
Remote ID Displays the remote client identifier assigned to the remote system.
Chassis ID Subtype Identifies the type of data displayed in the Chassis ID field on the remote
system.
Chassis ID Identifies the chassis component associated with the remote system.
Port ID Subtype Identifies the type of data displayed in the remote system’s Port ID field.
Port ID Identifies the physical address of the port on the remote system from which
the data was sent.
System Name Identifies the system name of the remote system.
System Description Displays the description of the selected port associated with the remote
system.
