Configuring the IP Helper Features
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 285
D-Link UWS User Manual
IP Helper Interface Configuration
Use the IP Helper Interface Configuration page to configure per-interface relay settings.
To display the page, click LAN > L3 Features >IP Helper > Interface Configuration in the navigation tree.

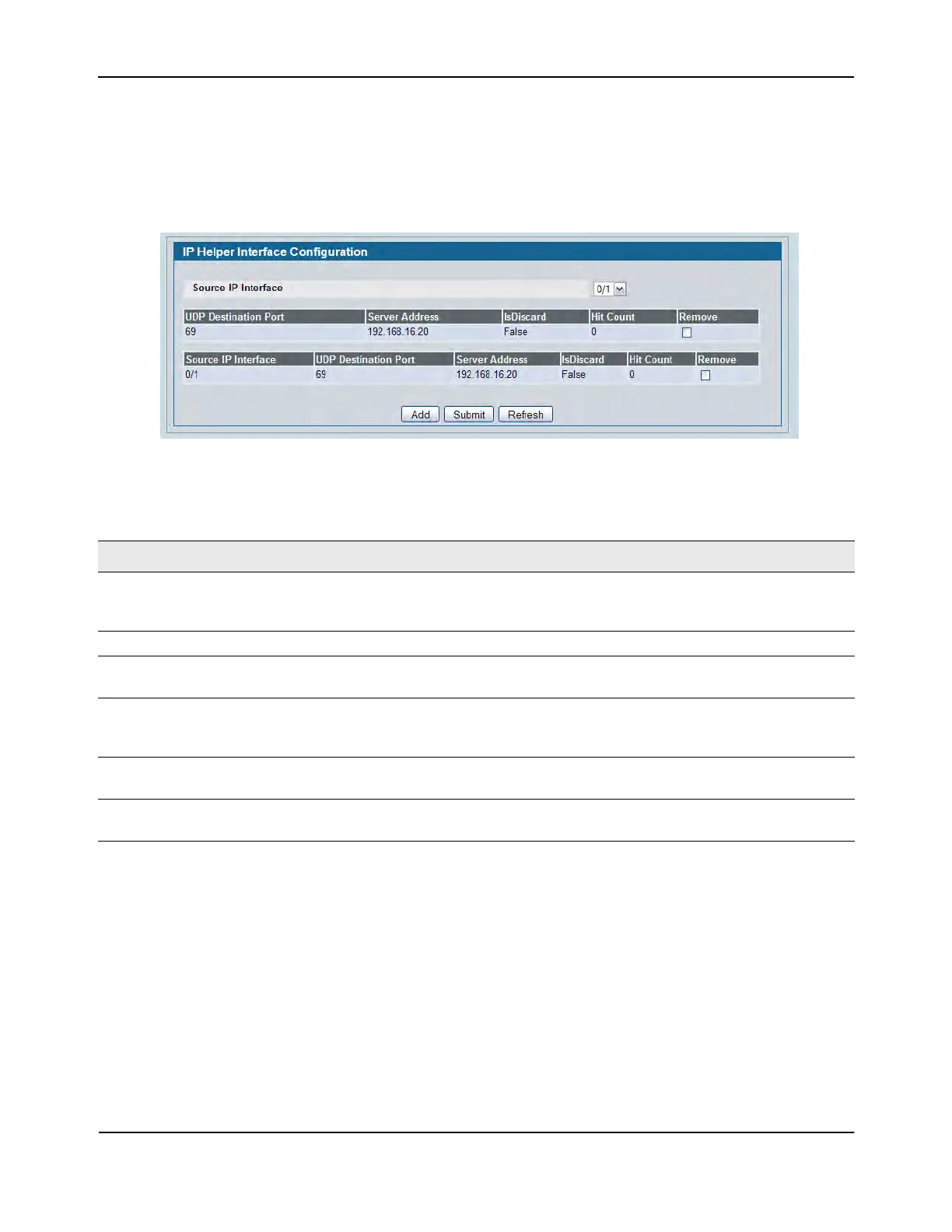

Figure 181: IP Helper Interface Configuration
Table 164: IP Helper Interface Configuration Fields
Field Description
Source IP Interface Select the interface from the pull down menu to get the relay entries
configured on a particular interface. Select All to display all the configured
relay entries on all interfaces.
UDP Destination Port Shows the destination UDP port ID/Port Name of UDP packets to be relayed.
Server Address Shows the Server Address to which the packets with the given UDP
Destination Port will be relayed.
IsDiscard If True, packets arriving on the given interface with the given destination UDP
port are discarded rather than relayed. Discard entries are used to override
global IP helper address entries which otherwise might apply to a packet.
Hit Count Shows the number of times a packet has been forwarded or discarded
according to this entry.
Remove To delete a configured helper entry, select the Remove check box for the
appropriate entry and click Submit.
