• If you make any configuration changes, click Submit to apply the new settings to the switch.
• Click Force to force the port to send out 802.1w or 802.1D BPDUs.
• Click Refresh to update the screen with most recent data.
MST Port Configuration/Status
Use the Spanning Tree MST Port Configuration/Status page to configure Multiple Spanning Tree (MST) on a
specific port on the switch.
To display the Spanning Tree MST Port Configuration/Status page, click LAN > L2 Features > Spanning Tree >
MST Port Configuration /Status in the navigation tree.

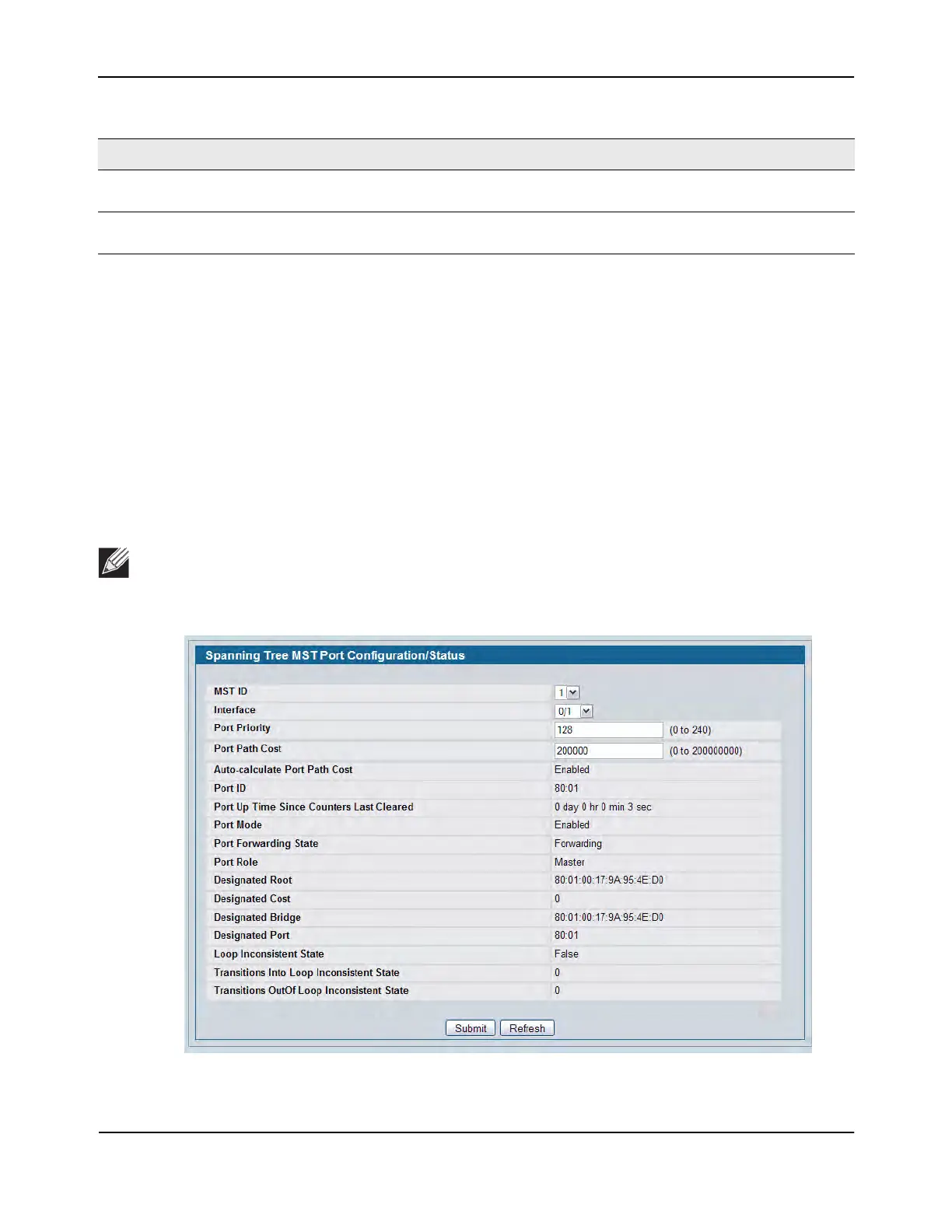

Figure 153: Spanning Tree MST Port Configuration/Status
Transitions Into Loop
Inconsistent State
Shows the number of times this interface has moved into a loop inconsistent
state.
Transitions Out Of Loop
Inconsistent State
Shows the number of times this interface has gotten out of a loop inconsistent
state.
Note: If no MST instances have been configured on the switch, the page displays a “No MSTs
Available” message and does not display the fields shown in Figure 153.
Table 135: Spanning Tree CST Port Configuration/Status Fields (Cont.)
Field Description

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
