Configuring IP Access Control Lists
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 363
D-Link UWS User Manual
Adding a New Rule to an IP-based ACL
1. Open the IP ACL Rule Configuration page.
2. Select the desired ACL from the IP ACL menu.
3. Specify Create Rule for Rule ID and enter a new ID number.
4. Define the remaining fields as needed.
5. Click Submit.
The new rule is assigned to the specified IP-based ACL.
Deleting a Rule from an IP-based ACL
1. Open the IP ACL Rule Configuration page.
2. Select the desired ACL from the IP ACL menu.
3. Select the rule to delete from the Rule field.
4. Click Delete.
The new rule is assigned to the specified IP-based ACL.
5. Click Refresh to update the page with the most current information.
IP ACL Summary
Use the IP ACL Summary page to view a summary of the IP ACLs that have been configured on the switch. To
access the page, click LAN > Monitoring > Access Control Lists > IP Access Control Lists > Summary.

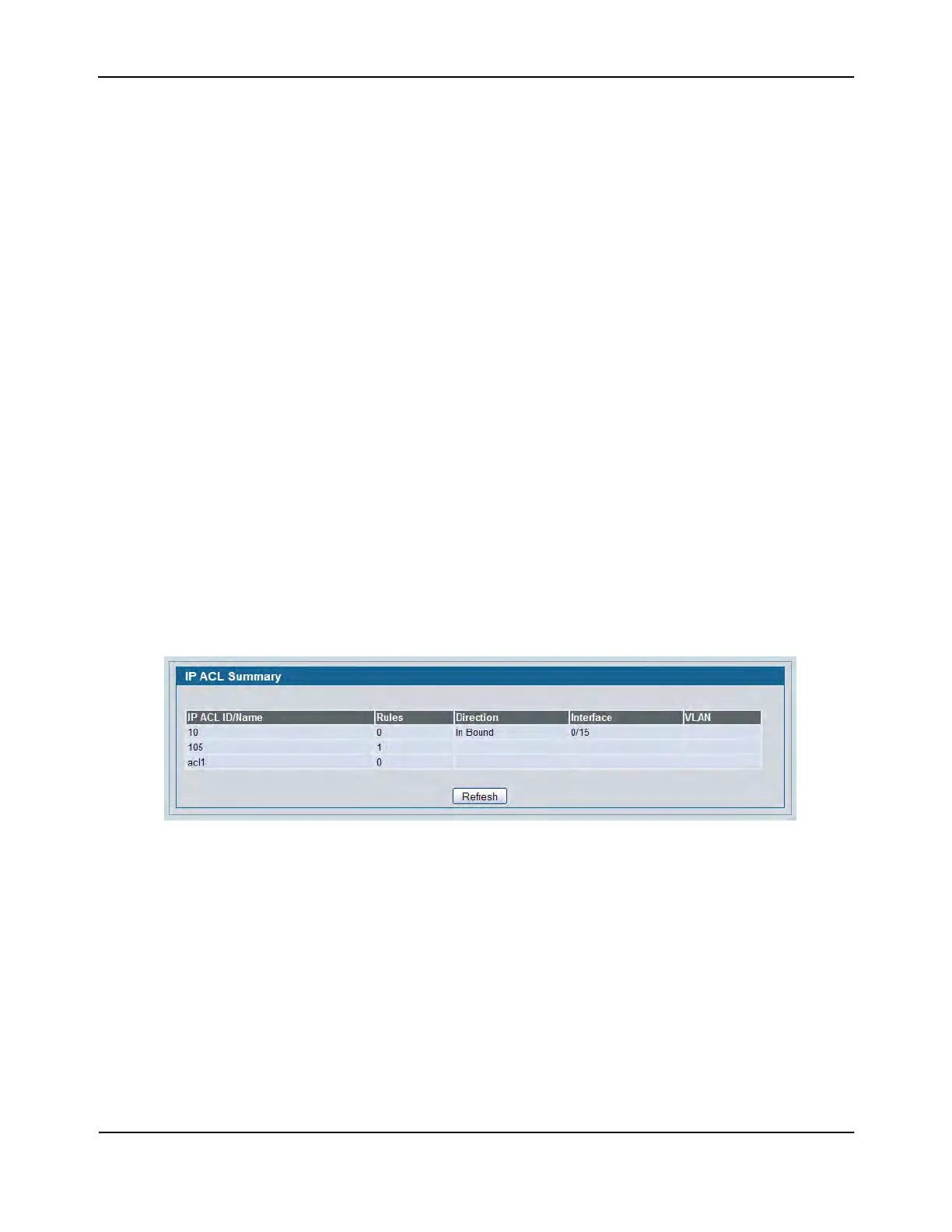

Figure 242: IP ACL Summary
