D-Link DWL-2600AP User Manual

RADIUS Settings
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 419
D-Link UWS User Manual
RADIUS Server Statistics
To access the RADIUS Server Statistics page, click LAN > Monitoring > RADIUS Statistics > Server Statistics in
the navigation menu.

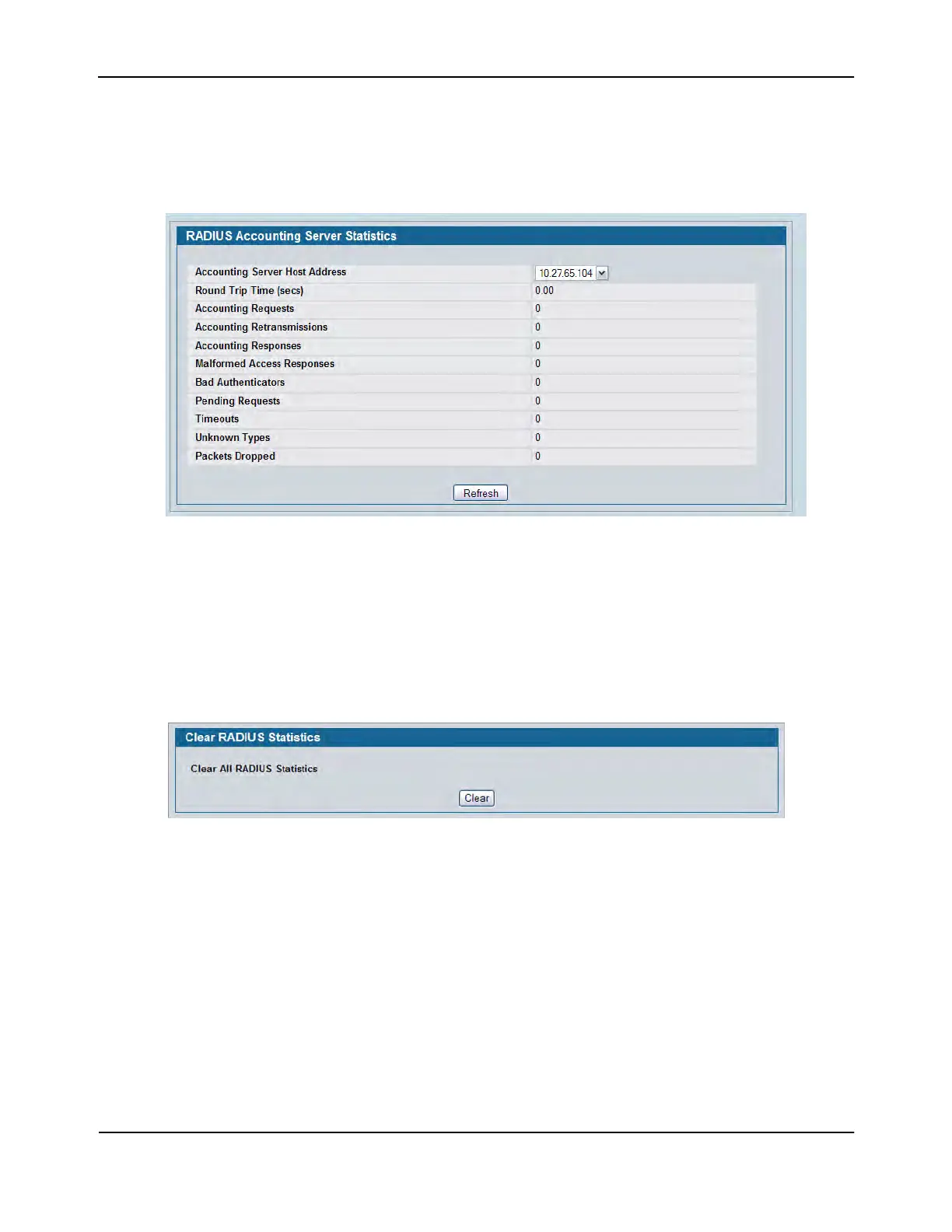

Figure 289: RADIUS Accounting Server Statistics
Clear Statistics
Use the RADIUS Clear Statistics page to reset all RADIUS authentication and accounting statistics to zero.
To access the RADIUS Clear Statistics page, click LAN > Security > RADIUS > Clear RADIUS Statistics in the
navigation menu.
Figure 290: RADIUS Clear Statistics
To clear all statistics for the RADIUS authentication and accounting server, click Clear.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
