Configuring Advanced Settings
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 608
D-Link UWS User Manual
Configuring the AP Profile Global Settings
From the WLAN > Administration > Advanced Configuration > AP Profile > Access Point Profile Summary
page, you can create, copy, or delete AP profiles. You can create up to 16 AP profiles on the DWS-4000 Series
switch. To create a new profile, enter the name of the profile in the Profile Name field, and then click Add.

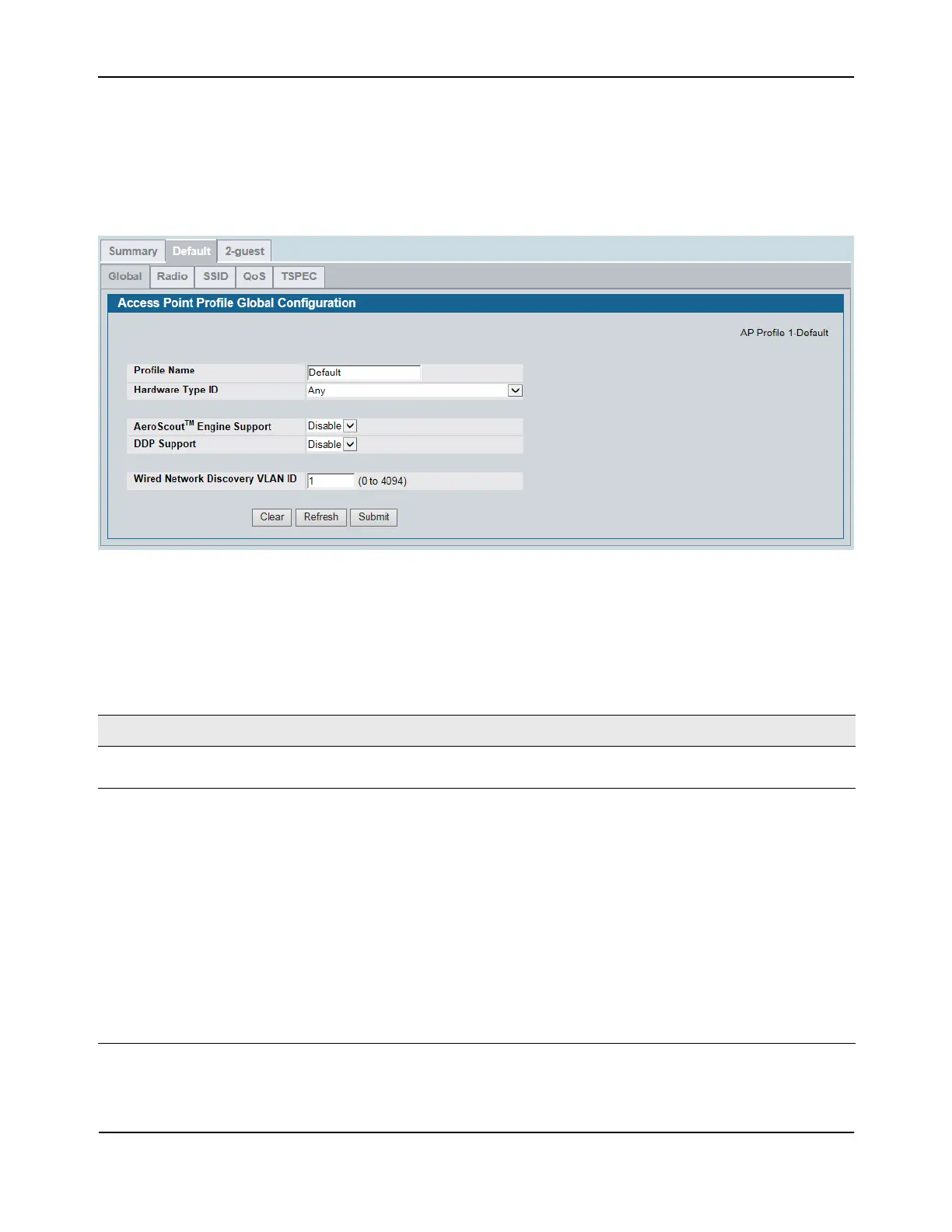

Figure 387: AP Profile Global Configuration
Use the Access Point Profile Global Configuration page to configure a variety of global settings for a new or
existing AP profile. When you add a new profile, this page automatically appears and is populated with the
default AP settings.
Table 354: Access Point Profile Global Configuration
Field Description
Profile Name The Access Point profile name you added. Use 0 to 32 characters. Only alphanumeric
characters are allowed. No special characters are allowed.
Hardware Type
ID
Select the hardware type for the APs that use this profile. The hardware type is determined,
in part, by the number of radios the AP supports (single or dual) and the IEEE 802.11 modes
that the radio supports (a/b/g or a/b/g/n/ac). The available options are:
•Any
DWL-8600AP Dual Radio a/b/g/n
DWL-8610AP Dual Radio a/b/g/n/ac
DWL-3600AP Single Radio b/g/n
DWL-6600AP Dual Radio a/b/g/n
DWL-2600AP Single Radio b/g/n
DWL-6610AP Dual Radio a/b/g/n/ac
DWL-6700AP Outdoor Dual Radio a/b/g/n
DWL-8710AP Outdoor Dual Radio a/b/g/n/ac
