Monitoring Status and Statistics
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 502
D-Link UWS User Manual
Command Buttons
The page includes the following button:
• Refresh—Updates the page with the latest information.
Viewing Associated Client Neighbor AP Status
The WLAN > Monitoring > Client > Associated Clients > Neighbor APs page for the associated client status
shows information about access points that the client detects. The information on this page can help you
determine the managed AP an associated client might use for roaming. Use the menu above the table to select
the MAC address of the client with the information to view.

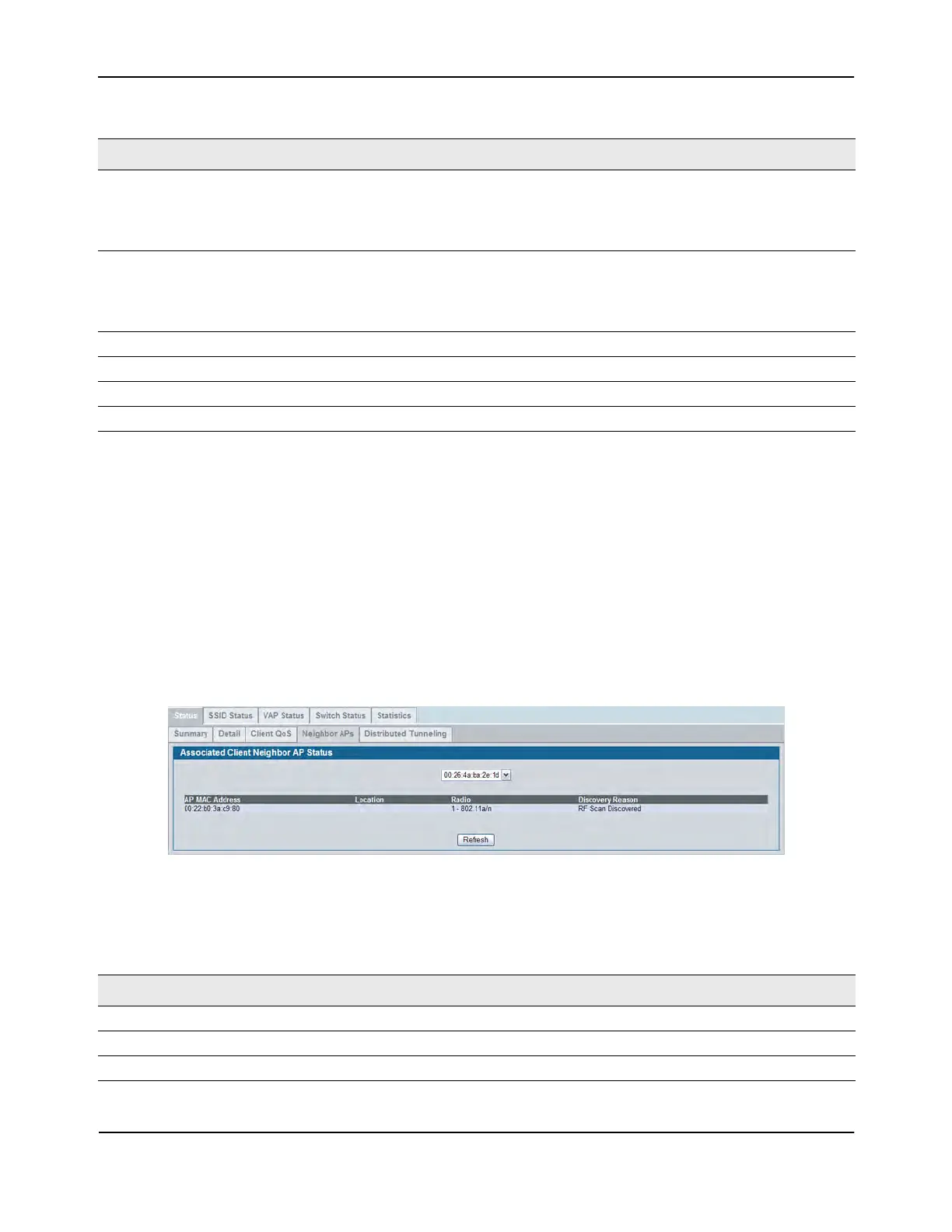

Figure 327: Associated Client Neighbor AP Status
Table 295 describes the information available on the Neighbor AP page for the associated client status.
Bandwidth Limit Down Shows the maximum rate at which the client receives traffic from the AP in bits per
second.
The rate shown in this field is the configured value rounded down to the nearest 64
kbps, A value of 0 means no bandwidth limiting is in effect in this direction.
Bandwidth Limit Up Shows the maximum rate at which the client transmits traffic to the AP in bits per
second.
The rate shown in this field is the configured value rounded down to the nearest 64
kbps, A value of 0 means no bandwidth limiting is in effect in this direction.
Access Control Down Shows which ACL, if any, is applied to traffic from the AP to the client.
Access Control Up Shows which ACL, if any, is applied to traffic from the client to the AP.
Diffserv Policy Down Shows which DiffServ policy, if any, is applied to traffic from the AP to the client.
Diffserv Policy Up Shows which DiffServ policy, if any, is applied to traffic from the client to the AP.
Table 295: Associated Client Neighbor AP Status
Field Description
AP MAC Address The base Ethernet address of the DWS-4000 Series switch managed AP.
Location The configured descriptive location for the managed AP.
Radio The radio interface and its configured mode that detected this client as a neighbor.
Table 294: Associated Client QoS Status (Cont.)
Field Description

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
