Managing LLDP
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 269
D-Link UWS User Manual
LLDP-MED Interface Summary
This page lists each switch interface and its LLDP configuration status. To display this page, click LAN >
Monitoring > LLDP Status LLDP-MED > Interface Summary in the navigation tree.

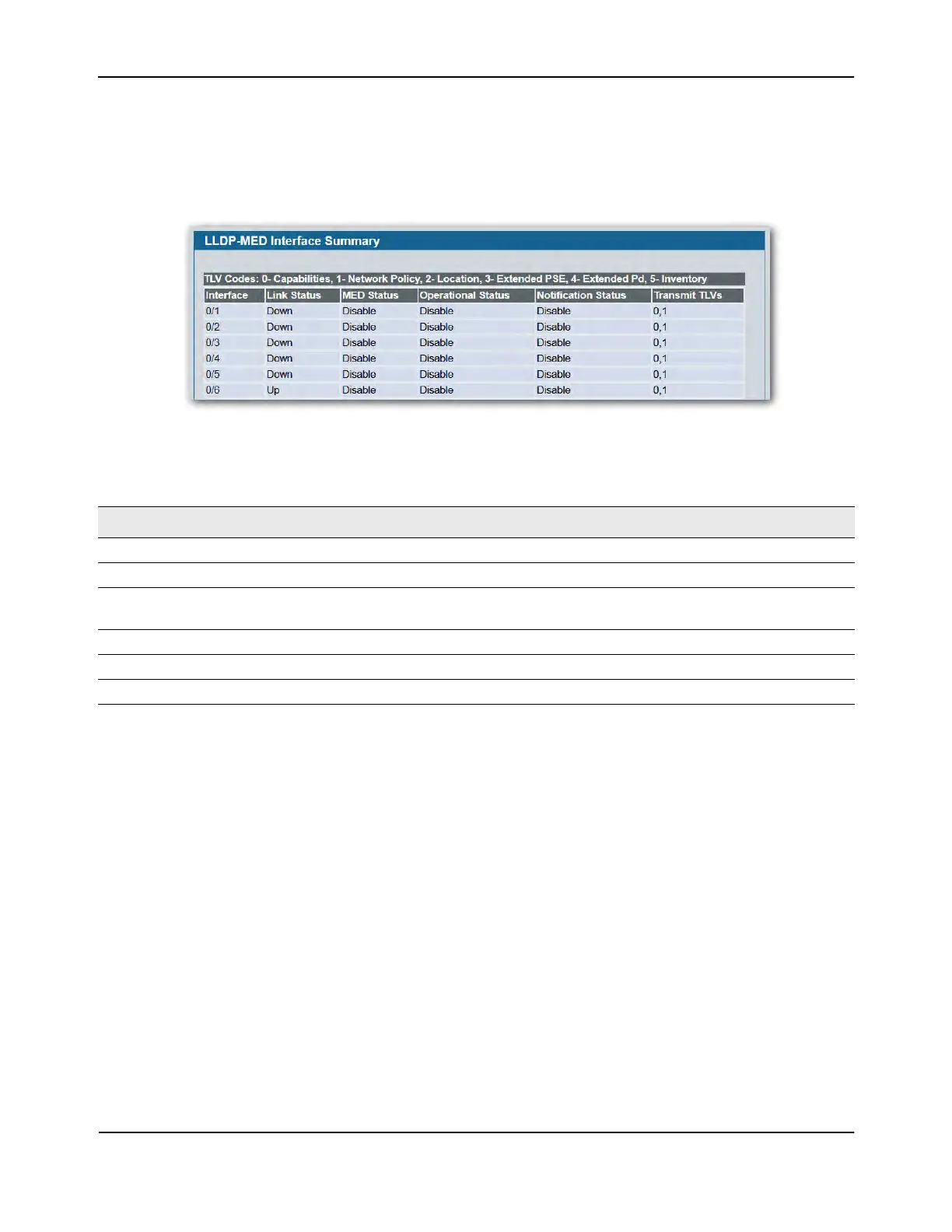

Figure 168: LLDP-MED Interface Summary
• Click Refresh to update the page with the latest information from the router.
Table 151: LLDP-MED Interface Summary Fields
Field Description
Interface Specifies all the ports on which LLDP-MED can be configured.
Link Status Specifies the link status of the ports as Up/Down.
MED Status Specifies the transmit and/or receive LLDP-MED mode is enabled or disabled
on this interface.
Operational Status Specifies whether the interface will transmit TLVs.
Notification Status Specifies the LLDP-MED topology notification mode of the interface.
Transmit TLVs Specifies the LLDP-MED transmit TLV(s) that are included.

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
