Managing VLANs
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 188
D-Link UWS User Manual
VLAN Port Configuration
Use the VLAN Port Configuration page to configure a virtual LAN on a port.
To access the VLAN Port Configuration page, click LAN > L2 Features> VLAN > Port Configuration in the
navigation tree.

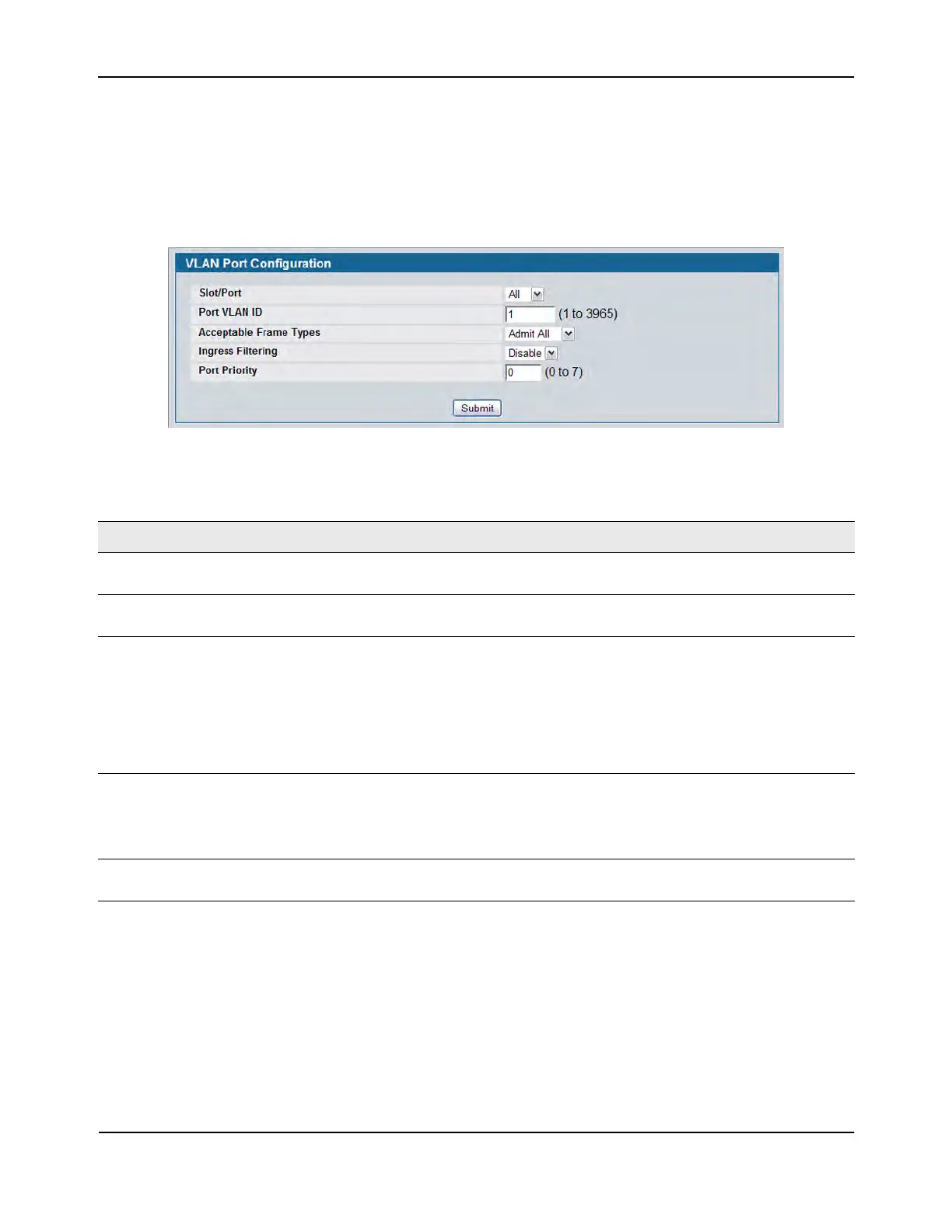

Figure 97: VLAN Port Configuration
• If you change any information on the page, click Submit to apply the changes to the system.
Table 83: VLAN Port Configuration Fields
Field Description
Slot/Port Select the physical interface for which you want to display or configure data.
Select All to set the parameters for all ports to same values.
Port VLAN ID Specify the VLAN ID you want assigned to untagged or priority tagged frames
received on this port. The factory default is 1.
Acceptable Frame Types Specify how you want the port to handle untagged and priority tagged frames.
Whichever you select, VLAN tagged frames will be forwarded in accordance
with the IEEE 802.1Q VLAN standard. The factory default is Admit All.
• VLAN Only: The port will discard any untagged or priority tagged frames it
receives.
• Admit All: Untagged and priority tagged frames received on the port will
be accepted and assigned the value of the Port VLAN ID for this port.
Ingress Filtering Specify how you want the port to handle tagged frames:
• Enable: A tagged frame will be discarded if this port is not a member of the
VLAN identified by the VLAN ID in the tag.
• Disable: All tagged frames will be accepted. The factory default is disable.
Port Priority Specify the default 802.1p priority assigned to untagged packets arriving at
the port.
