D-Link DWL-2600AP User Manual

Detecting and Preventing Wireless Intrusion
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 728
D-Link UWS User Manual

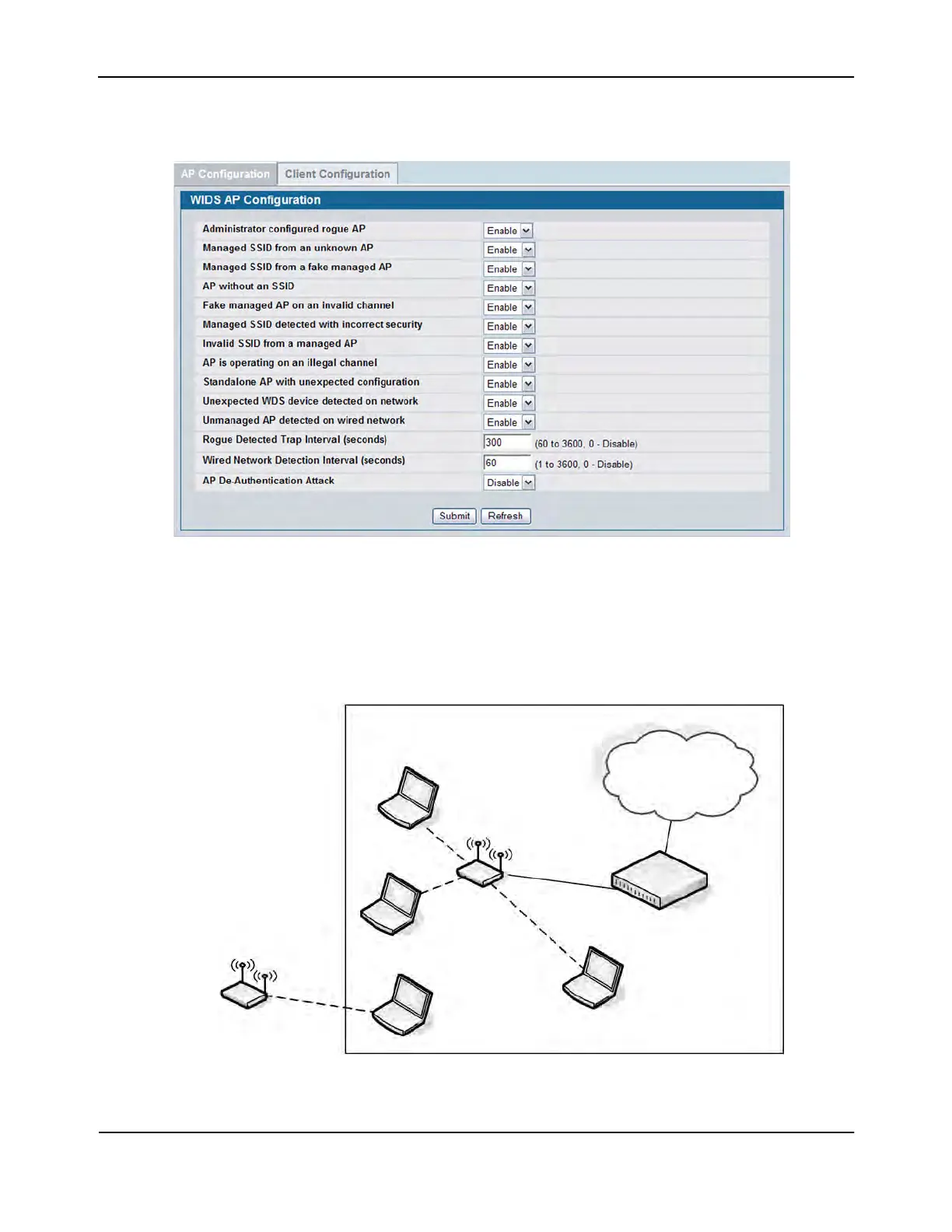

Figure 442 shows the default values on the WIDS configuration page for the AP.
Figure 442: WIDS AP Configuration
To demonstrate the WIDS and WIPS capabilities of the DWS-4000 Series switch, in this scenario a hacker has
set up a Honeypot AP in the parking lot of the company's building. This AP is configured with the SSID Corporate
to try to get valid clients from inside the company to associate to it in an attempt to gather passwords and
other confidential information that will allow the hacker to gain further access to the company's resources.
Figure 443: Honeypot AP
Honeypot AP
SSID: Corporate
Company Parking
Lot
Inside Company
LAN
Legitimate AP
SSID: Corporate

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
