Viewing Multicast Forwarding Database Information
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 239
D-Link UWS User Manual
• To search for a MAC address if the list is too long to scan, enter the MAC address in hex format and click
Search.
• Click Refresh to update the information on the screen with the most current data.
MFDB GMRP Table
Use the GMRP Table page to view all of the entries in the Multicast Forwarding Database that were created
for the GARP Multicast Registration Protocol.
To access the GMRP Table page, click LAN > Monitoring > Multicast Forwarding Database > GMRP Table in
the navigation tree.

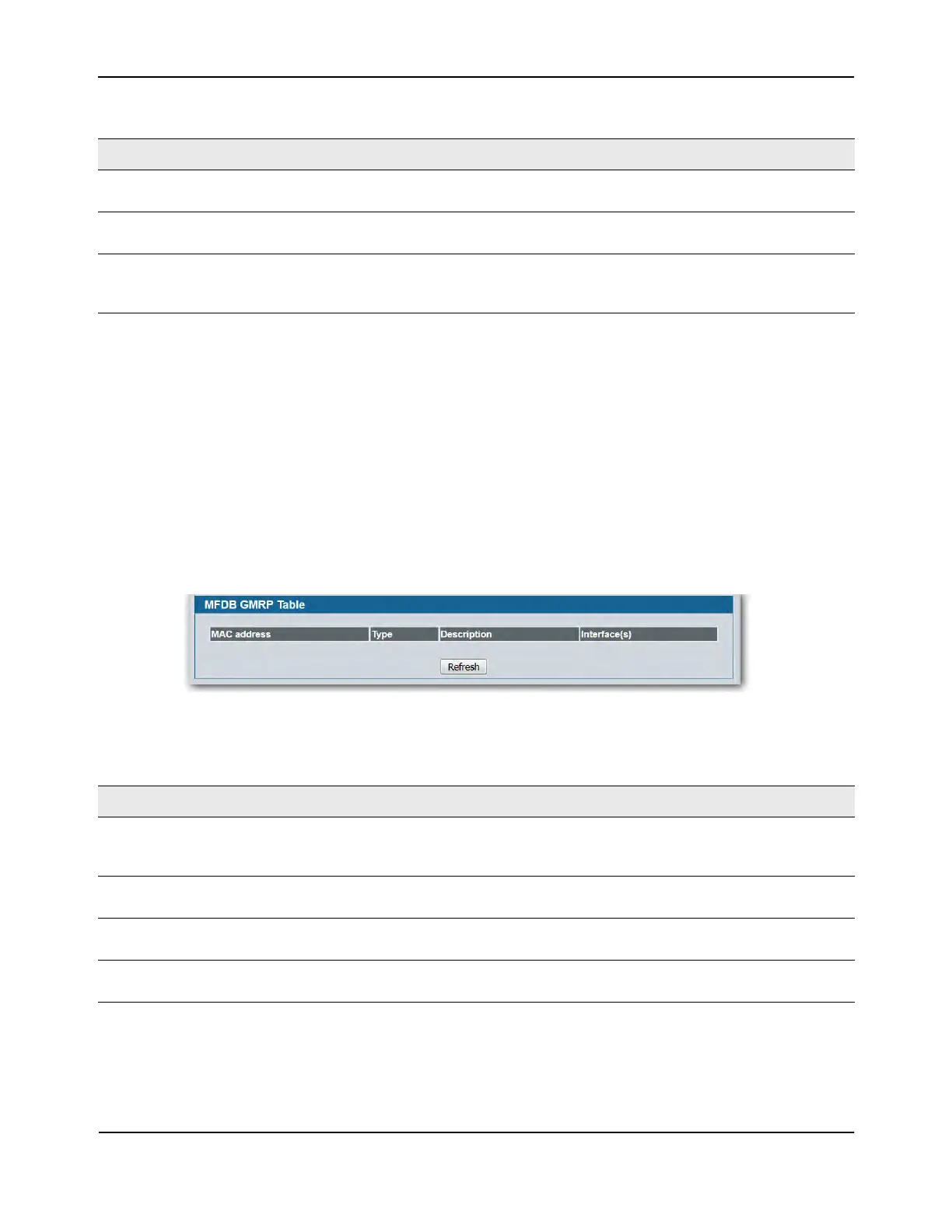

Figure 144: GMRP Table
• Click Refresh to update the information on the screen with the most current data.
Description The text description of this multicast table entry. Possible values are
Management Configured, Network Configured and Network Assisted.
Interface(s) The list of interfaces that are designated for forwarding (Fwd) and filtering
(Flt) for the selected address.
Forwarding Slot/Port(s) The resultant forwarding list is derived from combining all the forwarding
interfaces and removing the interfaces that are listed as the static filtering
interfaces.
Table 128: GMRP Table Fields
Field Description
MAC Address A VLAN ID/multicast MAC address pair for which the switch has forwarding and or filtering
information. The format is 8 two-digit hexadecimal numbers that are separated by colons,
for example 00:01:23:45:67:89:AB:CD.
Type This displays the type of the entry. Static entries are those that are configured by the end
user. Dynamic entries are added to the table as a result of a learning process or protocol.
Description The text description of this multicast table entry. Possible values are Management
Configured, Network Configured and Network Assisted.
Interface(s) The list of interfaces that are designated for forwarding (Fwd) and filtering (Flt) for the
associated address.
Table 127: MFDB Table Fields (Cont.)
Field Description

D-Link DWL-2600AP Specifications

General

Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Internal	Yes
LED indicators	Power, Stand-by, Status, WAN, WLAN
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	WEP, WPA, WPA2
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Width	160 mm
Height	45 mm
Weight	240 g
Dimensions (WxDxH)	160 x 160 x 45 mm
